Edimax

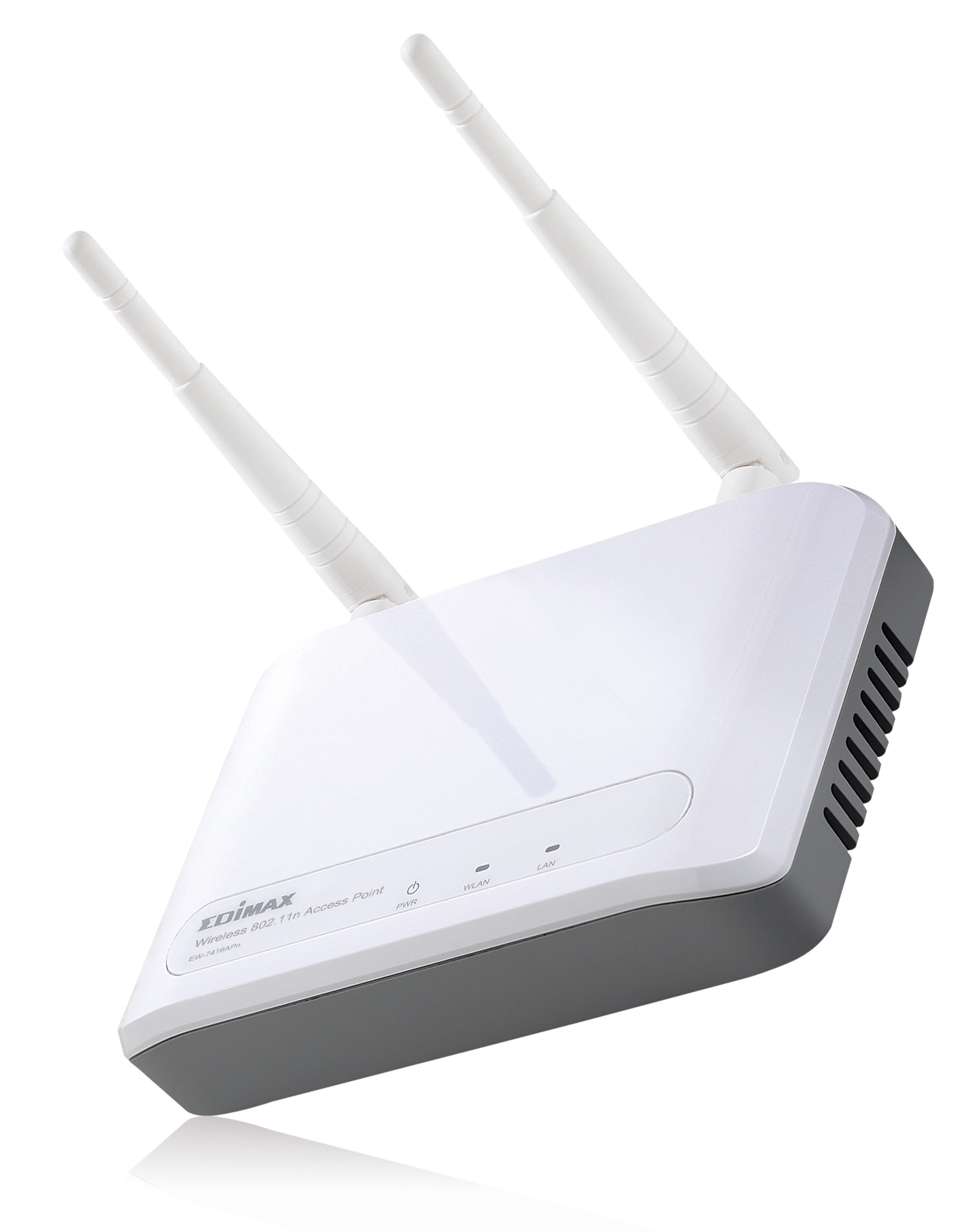

EW-7416APn Wireless 802.11n Access Point

Wireless 802.11n Access Point

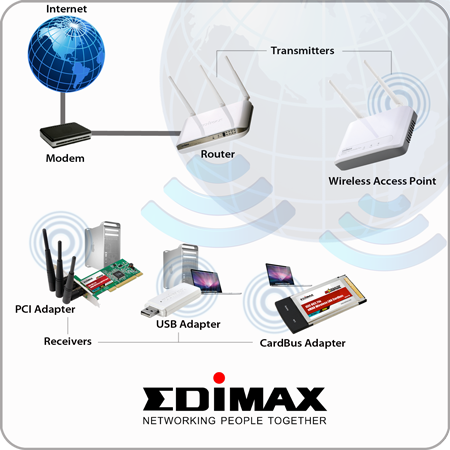

Acting as a bridge between the wired Ethernet and the 2.4GHz wireless IEEE 802.11b/g/n, this wireless access point lets your wireless client stations access both the wired and the wireless network nodes.
Universal Repeater Mode
The Universal Repeater function could extend the coverage and signal strength for the current wireless environment. This standardized function is compatible with other wireless APs and Routers. Users can use this feature to build up a large wireless network in a huge space like airports, hotels and schools…etc.
Robust Wireless Security with WPA and WPA2
Except for the basic security control by ESSID and 64/128 bit key length WEP encryption, this access point also supports the advanced security features, like MAC access control, IEEE 802.1x authentication, TKIP, AES and hidden ESSID. It provides a total solution for you to build up a secure wireless network environment that can prevent from all kinds of hacker intrusion.
Web Configuration
You can configure this access point through the friendly Web user interface with a browser.

Features

  • Compliant with IEEE 802.11b/g/n standards.
  • Increases your network's wireless speed up to 12 times faster and extends the coverage up to 5 times further.
  • Supports point-to-point and point-to multi point bridge functions.
  • Supports WDS repeater mode, Universal repeater mode, and AP client mode.
  • Supports WPA,WPA2 security enhanced function with WPS configuration button.
Wifi Protected WiFi Certified

Product Specifications

Manufacturer Part Number

  • EW-7416APn

Hardware Interface

  • 2x3dBi Dipole Antenna
  • Reset/WPS button
  • LED indicators: Power, WLAN, WAN

SoC & Wireless Module

  • SoC: Ralink RT2880
  • Ralink RT2880 + RT2820

Power Adapter

  • 12VDC, 1 Amp

Output Power

  • 11n:15dBm ± 1dBm
  • 11g:15dBm ± 1dBm
  • 11b:17 ± 1dBm

Installation

  • Quick Installation Guide

LAN Port

  • 10/100M UTP Port x 1

Memory

  • 4 MB Flash
  • 16 MB SDRAM

Security

  • 64/128-bit WEP, WPA and WPA2
  • MAC Filter

Requirements

  • Windows 95/98/ME/2000/XP/Vista

Warranty

Physical

  • Dimensions: 30(H) x 127(W) x 96(D) mm
  • Temperature: 10 ~40°C
  • Humidity: Max. 10~90% (Non Condensing)
  • Certification: FCC, CE

Gallery

Customer Ratings

Write a Review 5 / 5 1 out of 1 (100%) reviewers would recommend this product
Verified Buyer
Reviewer: Anonymous Location: Arvada, CO Age: 55-65 Experience Level: Power User Owned Product: 1-3 months
Rating: 5/5 Boosts the signal for cell phone!!! July 24, 2014 This I like very much. No more dead spots around my house thanks to T-mobile using wi-fi when I'm at home. Also picked this up for my weather station which has a much stronger signal. Now I'm going to mount a wireless camera in the back yard so the people that view my website can see what goes on here. ;)

I would recommend this item to a friend!

Edimax EW-7416APn Wireless 802.11n Access Point Mfr P/N: EW-7416APn OWC SKU: EDMEW7416APN Increases the wireless speed up to 12 times faster and extends the coverage up to 5 times further. Edimax 2 Year Limited Warranty
