We're sorry, but this item is no longer for sale. However, there may be more Thunderbolt » Thunderbolt Docks, Hubs & Adapters » TB to Multi-Interface items available.

Elgato

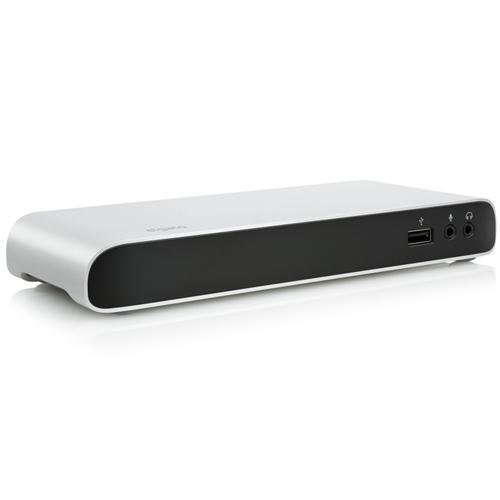

Thunderbolt™ 2 Dock
Connect everything with one cable.

Mac / PC / Thunderbolt 2 / USB 3.0 / HDMI / Gigabit Ethernet / Audio
Look what one cable can do...
One cable. All of your devices.
With three additional SuperSpeed USB 3.0 ports, your workspace remains organized even when you unplug your notebook. Rest assured that your backup drive is there to provide safety in the background, and don't keep re-plugging your peripherals in and out due to your computer's limitations. Even better, an easily accessible USB port on the front of Elgato Thunderbolt 2 Dock makes plugging in that client's thumb drive a breeze, without the need to fiddle on the sides of your perfectly positioned notebook.
One cable. Any display.
Elgato Thunderbolt 2 Dock features a built-in HDMI port that can drive a display of your choice. Whether you're looking for a professional-grade screen to meet your standards of color reproduction, a non-glare model to cope with reflections in your office, or a display that trumps all others in size, supported resolutions up to 4K have you covered.
One cable. Plenty of power.
Unlike traditional USB hubs, the built-in USB ports will even provide enough power to charge your iPad, boost your iPhone charge, enable you to use your Apple SuperDrive, or connect additional bus-powered devices to your Apple Keyboard. Elgato Thunderbolt 2 Dock charges your devices even if your computer is turned off or not connected at all. To enable high-power USB support on your Mac, simply download and install the free Elgato Thunderbolt Dock Utility.
One cable. Fast network.
Wired network connections are faster and more reliable than any Wi-Fi, and with Elgato Thunderbolt 2 Dock, you can tap into the full performance of Gigabit Ethernet. Enjoy speedy connections to your servers, uninterrupted downloads from the internet and reliable file transfers with your co-workers – without an additional adapter dangling awkwardly off the side of your notebook.
One cable. Your choice of sound.
Even your headphones can stay connected with the built-in, amplified stereo audio port of Elgato Thunderbolt 2 Dock. An additional, separate audio input port enables you to simultaneously connect a high-quality microphone for crystal-clear conference calls or any other project that benefits from having your voice heard.
One cable. More Thunderbolt.
Elgato Thunderbolt 2 Dock offers two Thunderbolt 2 ports: one to connect to your computer, and one to extend the versatility of Thunderbolt even further. Connect high-speed peripherals such as the Elgato Thunderbolt Drive+ to take advantage of unmatched performance, add a Thunderbolt to FireWire adapter for compatibility with your legacy devices, or connect an additional Thunderbolt display. You can even connect another Elgato Thunderbolt 2 Dock.
One cable. Easily unplugged.
When it's time to leave, individually ejecting external drives can be a hassle. With the free Elgato Thunderbolt Dock Utility, avoiding data loss is just a click in your menu bar away: conveniently eject all storage devices at once and immediately see when it's safe to unplug your Elgato Thunderbolt 2 Dock. Enjoy not working for a while, faster.

Product Specifications:

Elgato Part Number

  • 10024020

Mac Requirements

  • OS X 10.9 or later
  • Thunderbolt port

PC Requirements

  • Windows 8.1 or later
  • Thunderbolt port

Ports

  • 2x Thunderbolt 2 (20 Gb/s, bi-directional Input/Output)
  • 1x HDMI 1.4b Output (up to 4096 x 2160 pixels resolution, HDCP compliant)
  • 1x RJ45 10/100/1000BASE-T Gigabit Ethernet
  • 3x USB 3.0 (5 Gb/s, 1.5A, USB Battery Charging 1.2 & UASP compliant)
  • 1x 3.5 mm Headphone Output (amplified analog stereo)
  • 1x 3.5 mm Microphone Input (mono)
  • 1x Power Input (DC 12V 5A)

Maximum Data Transfer Rate

  • Thunderbolt 2 - 20Gb/s
  • Thunderbolt - 10Gb/s
  • USB 3.0 - 5Gb/s
  • USB 2.0 - 60MB/s
  • Gigabit Ethernet - 1Gb/s

Dimensions

  • 7.9" x 3.2" x 1.1" (20.0 x 8.9 x 2.9 cm)

Weight

  • 10.0oz. (285g)

Warranty

Manufacturer provided specifications for Elgato p/n 10024020 UPC#: 813180020085

Gallery

Video

This product is compatible with... Learn how to find your Mac's model ID
Mac Pro
Mac Pro
(December, 2013)
Model ID: MacPro6,1
2.7GHz 3.0GHz, 3.5GHz, 3.7GHz
iMac Intel
iMac w/Retina 5K display
(27-inch Mid 2015)
(May 2015)
Model ID: iMac15,1
3.3GHz i5, 3.5GHz i5, 4.0GHz i7
iMac Intel
iMac w/Retina 5K display
(27-inch Late 2014)
(October 2014)
Model ID: iMac15,1
3.5GHz i5, 4.0GHz i7
iMac Intel
iMac (27-inch Late 2013)
(September 2013)
Model ID: iMac14,2
3.2GHz i5, 3.4GHz i5, 3.5GHz i7
iMac Intel
iMac (27-inch Late 2012)
(October 2012)
Model ID: iMac13,2
2.9GHz i5, 3.2GHz i5, 3.4GHz i7
iMac Intel
iMac (27-inch Mid 2011)
(May 2011)
Model ID: iMac12,2
2.7GHz i5, 3.1GHz i5, 3.4GHz i7
iMac Intel
iMac (21.5-inch Mid 2014)
(June 2014)
Model ID: iMac14,4
1.4GHz i5
iMac Intel
iMac (21.5-inch Late 2013)
(September 2013)
Model ID: iMac14,3
2.9GHz i5 or 3.1GHz i7
iMac Intel
iMac (21.5-inch Late 2013)
(September 2013)
Model ID: iMac14,1
2.7GHz i5
iMac Intel
iMac (21.5-inch Early 2013)
(March 2013)
Model ID: iMac13,1
3.3GHz i3
iMac Intel
iMac (21.5-inch Late 2012)
(October 2012)
Model ID: iMac13,1
2.7GHz i5 , 2.9GHz i5, 3.1GHz i7
iMac Intel
iMac (21.5-inch Late 2011)
(August 2011)
Model ID: iMac12,1
3.1GHz i3
iMac Intel
iMac (21.5-inch Mid 2011)
(May 2011)
Model ID: iMac12,1
2.5GHz i5 , 2.7GHz i5, 2.8GHz i7
Mac mini 2018
Mac mini (Late 2018)
(November, 2018)
Model ID: Macmini8,1
3.6GHz i3, 3.0GHz i5, 3.2GHz i7
Mac mini Intel
Mac mini (Late 2014)
(October, 2014)
Model ID: Macmini7,1
1.4GHz, 2.6GHz, 2.8GHz, 3.0GHz
Mac mini Intel
Mac mini (Late 2012)
(October, 2012)
Model ID: Macmini6,1 & Macmini6,2
2.3GHz, 2.5GHz, 2.6GHz
Mac mini Intel
Mac mini (Late 2012 Server)
(October, 2012)
Model ID: Macmini6,2
2.3GHz, 2.6GHz
Mac mini Intel
Mac mini (Mid 2011)
(July, 2011)
Model ID: Macmini5,1 & Macmini5,2
2.3GHz, 2.5GHz, 2.7GHz
Mac mini Intel
Mac mini (Mid 2011 Server)
(July, 2011)
Model ID: Macmini5,3
2.0GHz
MacBook Pro Retina
MacBook Pro (15-inch Retina display Mid 2015)
(May, 2015)
Model ID: MacBookPro11,4; MacBookPro11,5
2.2GHz, 2.5GHz, 2.8GHz
MacBook Pro Retina
MacBook Pro (13-inch Retina display Early 2015)
(March, 2015)
Model ID: MacBookPro12,1
2.7GHz, 2.9GHz, 3.1GHz
MacBook Pro Retina
MacBook Pro (13-inch Retina Display 2013 - 2014)
(October, 2013 - July, 2014)
Model ID: MacBookPro11,1
2.4GHz, 2.6GHz, 2.8GHz, 2.9GHz, 3.0GHz
MacBook Pro Retina
MacBook Pro (15-inch Retina Display 2013 - 2014)
(October, 2013 - July, 2014)
Model ID: MacBookPro11,2
2.0GHz, 2.2GHz, 2.5GHz, 2.8GHz
MacBook Pro Retina
MacBook Pro (15-inch Retina Display 2013 - 2014)
(October, 2013 - July, 2014)
Model ID: MacBookPro11,3
2.3GHz, 2.5GHz, 2.6GHz, 2.8GHz
MacBook Pro Retina
MacBook Pro (15-inch Retina Display 2013)
(January, 2013)
Model ID: MacBookPro10,1
2.4GHz, 2.7GHz, 2.8GHz
MacBook Pro Retina
MacBook Pro (13-inch Retina Display 2013)
(January, 2013)
Model ID: MacBookPro10,2
2.5GHz, 2.6GHz, 2.9GHz, 3.0GHz
MacBook Pro Retina
MacBook Pro (13-inch Retina Display 2012-2013)
(October, 2012)
Model ID: MacBookPro10,2
2.5GHz, 2.9GHz
MacBook Pro Retina
MacBook Pro (15-inch Retina Display 2012)
(June, 2012)
Model ID: MacBookPro10,1
2.3GHz, 2.6GHz, 2.7GHz
MacBook Pro Unibody
MacBook Pro (15-inch 2012)
(June, 2012)
Model ID: MacBookPro9,1
2.3GHz, 2.6GHz, 2.7GHz
MacBook Pro Unibody
MacBook Pro (13-inch 2012)
(June, 2012)
Model ID: MacBookPro9,2
2.5GHz, 2.9GHz
MacBook Pro Unibody
MacBook Pro (17-inch 2011)
(October, 2011)
Model ID: MacBookPro8,3
2.4GHz, 2.5GHz
MacBook Pro Unibody
MacBook Pro (15-inch 2011)
(October, 2011)
Model ID: MacBookPro8,2
2.2GHz, 2.4GHz, 2.5GHz
MacBook Pro Unibody
MacBook Pro (13-inch 2011)
(October, 2011)
Model ID: MacBookPro8,1
2.4GHz, 2.8GHz
MacBook Pro Unibody
MacBook Pro (17-inch Early 2011)
(February, 2011)
Model ID: MacBookPro8,3
2.2GHz, 2.3GHz
MacBook Pro Unibody
MacBook Pro (15-inch Early 2011)
(February, 2011)
Model ID: MacBookPro8,2
2.0GHz, 2.2GHz, 2.3GHz
MacBook Pro Unibody
MacBook Pro (15-inch Early 2011)
(February, 2011)
Model ID: MacBookPro8,2
2.0GHz, 2.2GHz, 2.3GHz
MacBook Air
MacBook Air (13-inch Early 2015)
(March 2015)
Model ID: MacBookAir7,2
1.6GHz i5, 2.2GHz i7
MacBook Air
MacBook Air (11-inch Early 2015)
(March 2015)
Model ID: MacBookAir7,1
1.6GHz i5, 2.2GHz i7
MacBook Air
MacBook Air (13-inch Mid 2013)
(June, 2013)
Model ID: MacBookAir6,2
1.3GHz, 1.7GHz
MacBook Air
MacBook Air (11-inch Mid 2013)
(June, 2013)
Model ID: MacBookAir6,1
1.3GHz, 1.7GHz
MacBook Air
MacBook Air (13-inch Mid 2012)
(June, 2012)
Model ID: MacBookAir5,2
1.8GHz, 2.0GHz
MacBook Air
MacBook Air (11-inch Mid 2012)
(June, 2012)
Model ID: MacBookAir5,1
1.7GHz, 2.0GHz
MacBook Air
MacBook Air (13-inch Mid 2011)
(July, 2011)
Model ID: MacBookAir4,2
1.7GHz, 1.8GHz
MacBook Air
MacBook Air (11-inch Mid 2011)
(July, 2011)
Model ID: MacBookAir4,1
1.6GHz, 1.8GHz

Includes

Included Items
  • Elgato Thunderbolt 2 Dock
  • Thunderbolt Cable (50cm / 1.6ft)
  • Power supply
Elgato Thunderbolt 2 Dock Connect everything with one cable. Mfr P/N: 10024020 OWC SKU: ELG10024020 Features two Thunderbolt 2 and three USB 3.0 ports, built-in HDMI and Gigabit Ethernet, as well as separate microphone input and audio output. Elgato 1 Year Limited Warranty
