We're sorry, but this item is no longer for sale. However, there may be more Expansion Cards items available.

HighPoint

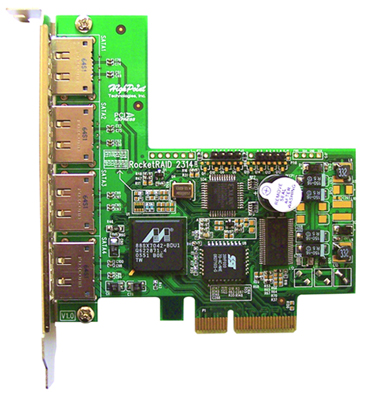

RocketRAID 2314
3Gb/s External 4x SATA RAID Host Adapter

RAID 0, 1, 5, 10 and JBOD | Up to 20 SATA devices
The HighPoint RocketRAID 2314 PCI Express to SATA II RAID Controller is the next generation for high performance computing solutions utilizing the latest interconnect technology PCI-Express. The RocketRAID 2314 is set to give much faster and improved I/O and supports features that are critical for high performance computing and high end workstations. With Port Multiplier (PM) support the RocketRAID 2314 can support up to 20 devices with PM enclosures.
Peak Speeds (USB, Firewire and SATA)
Many existing external hard drives use USB and/or 1394. These interfaces are not nearly as fast as SATA when compared using peak values, and can compromise drive performance.
External SATA (eSATA) Features and Benefits
Initially SATA was designed as an internal or inside-the-box interface technology, bringing improved performance and new features to internal PC or consumer storage. Creative designers quickly realized the innovative interface could reliably be expanded outside the PC, bringing the same performance and features to external storage needs instead of relying on USB or 1394 interfaces.

Called external SATA or eSATA, customers can now utilize shielded cable lengths up to 2 meters outside the PC to take advantage of the benefits the SATA interface brings to storage. SATA is now out of the box as an external standard, with specifically defined cables, connectors, and signal requirem- ents released as new standards in mid-2004. eSATA provides more performance than existing solutions and is hot pluggable.
Comprehensive OS Support
HighPoint offers the broadest range of support for all major operating systems to ensure OS and hardware server compatibility. Drivers are available for all major operating systems, including Windows , Linux and FreeBSD.

Product Specifications:

HighPoint Part Number

  • RR2314

Form Factor

  • Low-Profile

Chipset

  • Marvell 88SX7042

External Connectivity

  • x4 eSATA connectors

Internal Connectivity

  • none

Supported RAID Levels

  • RAID 0, 1, 5, 10, and JBOD

RAID Management Utilities

  • BIOS
  • Web based RAID
  • Management Software and CLI

Mac System Requirements

  • Mac OS X 10.4.8 to 10.9.x

PC System Requirements

  • Windows (XP, 2000, Server 2003, x64 Edition and Vista)
  • Linux
  • FreeBSD

Power

  • 3.3V / 10W

MTBF

  • 920,585 Hours

Hot Plug Support

  • Yes

Hot Swap Support

  • Yes

Agency Approvals & Compliance

  • RoHS
  • FCC Part 15 Class B
  • CE

Operating Temperature

  • 5°C ~ 40°C (32°F ~ 185°F)

Non-Operating Temperature

  • -40°C~ 60°C (-40°F ~ 185°F)

Relative Humidity

  • 20% ~ 80% non condensing

Dimensions

  • 3.99" x 4.16" (101.4mm x 105.9mm)

Warranty

Manufacturer provided specifications for Highpoint Technologies p/n RR2314 UPC#: 643653231409
This product is compatible with... Learn how to find your Mac's model ID
Mac Pro
Mac Pro 12-Core (Mid 2012)
(June, 2010)
Model ID: MacPro5,1
2.4GHz, 2.66GHz, 3.06GHz
Mac Pro
Mac Pro 6-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.2GHz
Mac Pro
Mac Pro 12-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.66GHz, 2.93GHz
Mac Pro
Mac Pro 8-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.4GHz
Mac Pro
Mac Pro 6-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.8GHz, 3.2GHz
Mac Pro
Mac Pro 8-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.26GHz, 2.66GHz, 2.93GHz
Mac Pro
Mac Pro 4-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.66GHz, 2.93GHz, 3.33GHz
Mac Pro
Mac Pro 8-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz, 3.0GHz, 3.2GHz
Mac Pro
Mac Pro 4-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz
Mac Pro
Mac Pro 8-core (Early 2007)
(April, 2007)
Model ID: MacPro2,1
3.0GHz
Mac Pro
Mac Pro 4-core (Mid 2006)
(August, 2006)
Model ID: MacPro1,1
2.0GHz, 2.66GHz, 3.0GHz
PowerMac G5
Power Mac G5 (Late 2005)
(October, 2005)
Model ID: PowerMac11,2
2.0GHz, 2.3GHz, dual 2.5GHz
PC Desktop
PC Desktops
Compatible with Intel / AMD Process based PCs capable with the specifications listed above. Memory complies with JEDEC Specifications, document JESD79-3B.

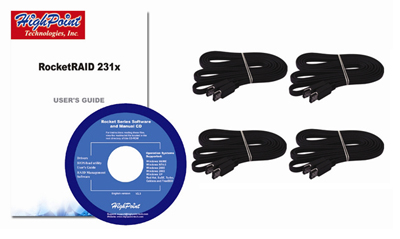

Includes

  • RocketRAID 2314 host adapter
  • Quick Installation Guide
  • Software CD
HighPoint RocketRAID 2314 3Gb/s External 4x SATA RAID Host Adapter Mfr P/N: RR2314 OWC SKU: HPTRR2314 Supports 4 drives direct, or 20 drives via port multiplication, RAID 0, 1, 5, 10, JBOD. Highpoint Technologies 1 Year Limited Warranty
