We're sorry, but this item is no longer for sale. However, there may be more External Drives and Enclosures items available.

OWC

Diglloyd Recommended
Enhancement Package for 2013 Mac Pro

Mac / Thunderbolt
OWC Value Bundle
Recommended for Photographers
Perfect for the photographer's workflow
The 6-core Mac Pro is the "sweet spot" for photographers, that Lloyd Chambers of Mac Performance Guide been recommending since the 2013 model debuted. Read the 2013 Mac Pro review here.
Enchance your workflow with the perfect configuration
Recommended peripherals are: 64GB memory (set and forget, plenty even for large jobs); The Thunderbay 4 RAID-5 edition (suggestion: configure as three RAID-5 TB partitions); and the Thunderbolt 2 Dock (extra USB ports on their own bus). Tie it all together with a premium OWC Thunderbolt cable and you get the perfect package for supercharging your workflow.

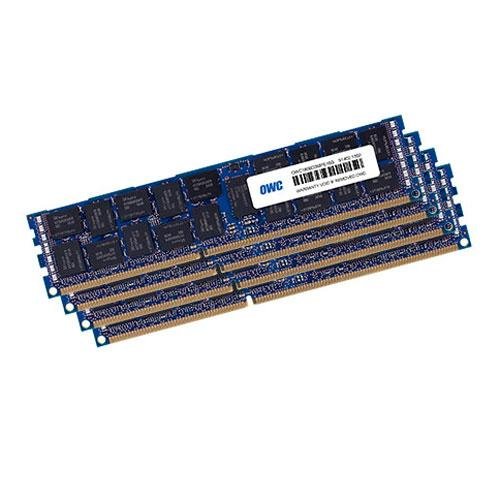

Memory
Four modules of OWC's high performance 16GB 1866MHz ECC RAM will make a fast job of any project. And OWC Memory for Mac Pro 2013 fully meets Apple's specifications with special attention to proper thermal specifications, so you can be sure you are getting the highest quality RAM for your Mac Pro.
ThunderBay 4 RAID 5 edition
ThunderBay 4 is the four-bay production drive powerful enough to create workflows without limitations. With support for RAID 0, 1, 4, 5 and 1+0, and up to 790MB/s, you'll transform progress bars into progress.

Enjoy the flexibility of personally customizing any combination of drives for exhilarating performance with the SoftRAID engine. Extensive health monitoring for advance warning of imminent drive failure, prompt drive-status email notifications, and fast rebuild capabilities ensure the highest level of protection for your crucial data.
Thunderbolt 2 Dock
12 Ports of phenomenal flexibility, all united to your Mac with just one lightning-fast Thunderbolt 2 cable. OWC Thunderbolt 2 Dock is the new foundation for your perfect workspace. Awesome performance meets incredible connectivity, the OWC Thunderbolt 2 Dock offers the ultimate in convenience and flexibility to streamline any workflow. With just one Thunderbolt cable, connect up to five USB 3.0 devices, Gigabit Ethernet, a FireWire device, HDMI, audio in, and audio out.
Premium Cables for Optimum Connections
OWC 1 meter premium Thunderbolt cables are manufactured to the highest standard and designed to deliver the incredible power of Thunderbolt technology. Liberate your workflow with data transfer speeds up to 20Gb/s, and experience the high performance capabilities of your Thunderbolt-equipped devices.

64.0 GB OWC Memory Upgrade Kit Specifications:

OWC Part Number

  • OWC1866D3R9M64

Size

  • (4) 16 GB (16384 MB)

Type

  • 240-pin SDRAM DIMM

Data Rate

  • 1866 MHz

Bandwidth

  • 14.9 GB/s

Memory Rank

  • 2048M x 72, Dual Rank ECC Registered


OWC ThunderBay 4 RAID 5 Edition Specifications:

OWC Part Number

  • OWCTB2SRT20.0S

Interface

  • (2) Thunderbolt 20Gb/s

Standard Mechanism

5.0TB Toshiba MD04ACA500 Specifications:

Specifications

Form Factor
3.5″ HDD
Interface
SATA 6.0Gb/s
Capacity1
5.0TB
Formatted Capacity2
4650GiB
Rotational Speed
7,200 RPM
Cache / Data Buffer
128MB
Manufacturer Model Number
MD04ACA500
Format

Physical

Height (max)
26.1mm (1.027″)
Width (max)
101.6mm (4.0″)
Length (max)
147mm (5.787″)
Weight (typical)
720g (1.587 lbs.)
Bytes per Sector
512 / 4096

Reliability3

MTBF (Mean Time Between Failures)
1,400,000 hours
Load/Unload
600,000 times
Warranty
2 Year Toshiba Limited Warranty

Performance

Transfer Rate (Max)
6.0Gb/s
Average Seek Time
8.5ms
Average Latency
4.17ms

Power

Read Power
11.3 Watts
Write Power
11.3 Watts
Idle Mode
6.0 Watts

Environmental (Operating)

Shock
70 G max at 2ms
Ambient Temperature (°F)
32°F to 140°F
Ambient Temperature (°C)
0°C to 60°C
Vibration
0.75 G (5 to 500 Hz)
Relative Humidity (non-condensing)
8% to 90%
Altitude
-304.8 m to 3,048 m (-1,000 ft to 10,000+ ft)

Environmental (Non-Operating)

Shock
300 G max at 1ms
Ambient Temperature (°F)
-40°F to 158°F
Ambient Temperature (°C)
-40°C to 70°C
Vibration
1.04 G (5 to 500 Hz)
Relative Humidity (non-condensing)
5% to 95%
Altitude
-304.8 m to 12,192 m (-1000 ft to 40,000+ ft)

Acoustics

Idle (Typical)
3.1 bels
  1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
  2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
  3. Specific application environments such as temperature and duty cycle will affect the overall reliability rates.
  • 4 x 5.0TB* Toshiba MD01ACAxx Series Hard Disk Drives**

  • *1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.

    **OWC reserves the right to replace or upgrade to equivalent or better components.

Power

  • Power Supply
    • Internal UL-listed, universal auto-switching
    • AC input: 100 ~ 240V, 50-60Hz
    • DC output: 12V, 16.66A

RAID Modes Supported

  • Software
  • RAID 0, 1, 4, 5, 10, Span, Independent

Initial Configuration

  • Pre-formatted for SoftRAID
  • RAID 5
  • 4 x 8.0TB HGST Ultrastar He8 Hard Disk Drives

Operating Environment

  • Temperature (°F) 41° — 107°
  • Temperature (°C) 5° — 42°

Dimensions

  • Height: 6.9 in (17.7 cm)
  • Width: 5.3 in (13.5 cm)
  • Length: 9.7 in (24.5 cm)

Weight (Without Accessories)

  • 8.6 lbs (3.9kg)

Warranty



OWC Thunderbolt 2 Dock Specifications:

OWC Part Number

  • OWCTB2DOCK12P

Interface

  • (2) Thunderbolt 20Gb/s

Device Ports

  • (3) USB 3.0 Standard-A
  • (2) USB 3.0 Standard-A high power
  • (1) FireWire 800
  • (1) HDMI 1.4b
  • (1) Gigabit Ethernet
  • (1) 3.5mm Mono Audio Input
  • (1) 3.5mm Stereo Audio Output

Display Support

  • DisplayPort 1.2 with support for up to 4K/60Hz
  • HDMI 1.4b with support for up to 4K/30Hz
  • Note
    • Dual monitor support requires the use of at least one Thunderbolt display.

Power

  • Power Supply
    • External UL-listed, universal auto-switching
    • AC input: 100 ~ 240V, 50-60Hz
    • DC output: 12V, 6.0A

Operating Environment

  • Temperature (°F) 41° — 107°
  • Temperature (°C) 5° — 42°

Dimensions

  • Height: 1.0 in (2.5 cm)
  • Width: 9.1 in (23.0 cm)
  • Length: 3.5 in (8.9 cm)

Weight (without accessories)

  • 13.6 oz (386 g)

Warranty



OWC Blue 1M Premium Thunderbolt Cable Specifications:

OWC Part Number

  • OWCCBLTB1MBLP

Type

  • Active Electrical (copper)

Length

  • 1 meter

Color

  • Blue

Power Transmission

  • 10 W

Warranty

Gallery

Software

SoftRAID
SoftRAID 5
OWC has partnered with SoftRAID to bring software RAID 5 to the Mac. SoftRAID combines advanced RAID modes, fast performance, monitoring, e-mail notification, and fast rebuild capabilities that only software RAID can deliver. ThunderBay 4 models with drives come preconfigured in RAID 5, and are plug and play ready with OS X 10.9 or later. Advanced features such as drive notification and monitoring require SoftRAID installation.
OWC Diglloyd Recommended Enhancement Package for 2013 Mac Pro Mfr P/N: DIGBNMP13Y OWC SKU: OWCDIGBNMP13Y Diglloyd recommended photography workflow upgrade package for Mac Pro (late 2013)
Sold Out
