We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives and SSD items available.

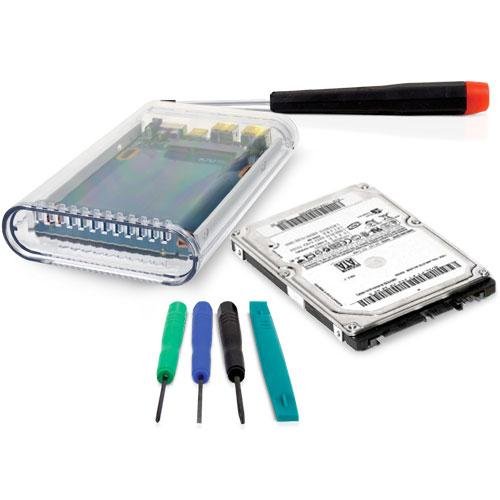

OWC DIY Bundle: Mercury On-The-Go Pro + 750GB 7200RPM HDD
OWC Mercury On-The-Go Pro FireWire 800 / USB 3.0 & 2.0,
750GB Western Digital Scorpio 7200RPM 9.5mm Hard Drive,
Software Bundle & OWC 5 Piece Toolkit

OWC DIY Bundle
Everything you need in one package, immediately ready to assemble.
Backup and store your data with style
and confidence
  • Upgrade, transfer & use original drive as external.
  • Take your data with you - small enough to keep
    in a pocket!
  • Easily add additional laptop storage with
    no AC adapter required.
Examples of how this bus-powered On-The-Go bundle can be used in real world situations:

Power Users / Travelers
Relocate your "home folder" to your On-The-Go Pro and have your files with you at home, at work or on the road without the need to synchronize your machines.
Laptop Owners
Clone your current internal SATA hard drive in your laptop to the new drive. Then install the new, larger drive in your laptop and keep the smaller drive in your On-The-Go for additional storage space.
iTunes Aficionados
Keep a copy of your iTunes library on your external drive to play on multiple machines.
Gamers
Add additional storage to your XBox 360 or PS3 game console to store music, media, and other downloads. PS3 even includes a backup utility to protect your internal drive's data.
For Everyone
Have the peace of mind of a complete backup plan. Create a bootable clone of your hard drive at regular intervals so if your computer goes down, your productivity doesn't go down with it. Boot to another computer and keep on working!
Includes:
  • OWC Mercury On-The-Go Pro
  • 750GB Western Digital Scorpio 7200RPM HDD
  • Prosoft DataBackup III (OSX)
  • NovaStor NovaBackup (Win)
  • Intech HD Speedtools
  • 15" FireWire 800 Connecting Cable
  • 18" USB 3.0 Connecting Cable
  • Carrying Case
  • OWC 5 Piece Toolkit


Yes, You Can Do-it-Yourself
OWC is committed to your success, so if you need a bit more guidance, we are available Mon-Fri 8AM-8PM and Sat 9AM-4PM with U.S. based technical support by phone or live chat.

Includes

Mercury On-The-Go includes
  • OWC Mercury On-The-Go Pro FireWire 800 / USB 3.0 storage solution for SATA 2.5" Hard Drives
  • 750GB Western Digital Scorpio Black Hard Drive
  • OWC 5-Piece Mini Toolkit
    • Nylon Spudger
    • Phillips #00
    • Straight Blade 1.8mm
    • Torx T8
    • Torx T6
  • 15" High Quality Double Shielded FireWire 800 connecting cable (9-9 Pin cable)
  • High Quality Double Shielded USB 3.0 certified connecting cable
  • Carrying Case
  • Assembly Manual & User Guide
  • 1 Year OWC Enclosure Limited Warranty with 48-Hour Turnaround Time

Gallery

750GB Western Digital WD Black Specifications:

Specifications

Form Factor
2.5″ HDD
Interface
SATA 6Gb/s
Capacity1
750GB
Formatted Capacity2
698GiB
Rotational Speed
7200 RPM
Cache / Data Buffer
16MB
Manufacturer Model Number
WD7500BPKX
Format

Physical

Height (max)
9.5mm (0.374″)
Width (max)
69.85mm (2.75″)
Length (max)
100.2mm (3.94″)
Weight (typical)
115g (0.242 lbs.)

Reliability3

Warranty
5 Year Western Digital Warranty

Performance

Transfer Rate (Max)
6.0 Gb/s
Track-to-track Seek
2.0ms
Average Seek Time
12.0ms

Power

Read Power
1.80 Watts
Write Power
1.80 Watts
Idle Mode
0.83 Watts
Standby Mode
0.20 Watts
Sleep Mode
0.20 Watts

Environmental (Operating)

Ambient Temperature (°F)
32°F to 140°F
Ambient Temperature (°C)
0°C to 60°C
Vibration
0.00459 g²/Hz (10 to 500 Hz)
Relative Humidity (non-condensing)
8% to 90%
Altitude
-1,000 feet to 10,000 feet

Environmental (Non-Operating)

Ambient Temperature (°F)
-40°F to 158°F
Ambient Temperature (°C)
-40°C to 70°C
Vibration
0.05102 g²/Hz (10 to 500 Hz)
Relative Humidity (non-condensing)
5% to 95%
Altitude
-1,000 feet to 40,000 feet

Acoustics

Idle (Typical)
2.2 bels
Seek (Typical)
2.5 bels
  1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
  2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
  3. Specific application environments such as temperature and duty cycle will affect the overall reliability rates.

OWC On-The-Go Pro Specifications:

Bus Interface

  • FireWire 1394B (IEE1394A/B/iLink Compliant), 2 9 Pin (powered) ports
  • USB 3.0 / 2.0 / 1.1 Backwards compatible 9 pin mini "B" port.

Chipset

  • Oxford 944 and ASMedia 1051e FireWire/USB chipset

Max Data Transfer Rate

  • FireWire 800 - 800Mbps (or 100MB/sec)
  • FireWire 400 - 400Mbps (or 50MB/sec)
  • USB 3.0 - 4000Mbps (or 500MB/sec)
  • USB 2.0 - 480Mbps (or 60MB/sec)
  • USB 1.1 - 12Mbps (or 1.5MB/sec)

UASP (USB Attached SCSI Protocol) Compliant

  • Yes

Macintosh System Requirements

  • Mac OS 8.6 to 9.2.2 compatible, OS X 10.1.x and later. (10.2 or later required for FW800 and USB 3.0)
  • FireWire 800: Macintosh with FireWire 800 interface, either built in or via PCI FireWire 800 card.
  • FireWire 400: Macintosh with FireWire 400 interface, either built in or via PCI FireWire 400 card.
  • USB 3.0: Macintosh with USB 3.0 interface, either built in or via PCI USB 3.0 card.
  • USB 2.0: Macintosh with USB 2.0 interface, either built in or via PCI USB 2.0 card.

Windows System Requirements

  • FireWire 800: PC with FireWire 800 interface, either built in or via PCI FireWire 800 card.
  • FireWire 400: PC with FireWire 400 interface, either built in or via PCI FireWire 400 card.
  • USB 3.0: PC with USB 3.0 interface, either built in or via PCI USB 3.0 card.
  • USB 2.0: PC with USB 2.0 interface, either built in or via PCI USB 2.0 card.

Related Items

Power Supply

  • Bus Power via FireWire 800 supported on all models equipped with an available FireWire 800 port either factory stock or via add on FireWire 800 PCI Card.
  • Bus Power via FireWire 400 on all models made in 2001 or later via Factory ports or any model with add on FireWire 400 PCI Card.
  • Bus Power via USB on most computers with USB 3.0 port factory stock.
  • Optional AC Adapter* (available as a separate purchase here)

    * AC adapter not required for most applications provided computer bus supplies appropriate power needs.

Drive Requirements

External Case Dimensions

  • 3.5" (W) x 5.5" (D) x 1" (H)
  • 88.9mm x 139.7mm x 25.4mm

Total Shipping Weight

  • 6.8 oz. (.19kg) bare enclosure

Product Manual

Operating Environment:

Temperature

  • Dependent on mechanism installed

Relative Humidity

  • Dependent on mechanism installed

Vibration

  • Dependent on mechanism installed

MTBF (hours)

  • Dependent on mechanism installed

Warranty

Manufacturer provided specifications for Other World Computing p/n DIYWD7750UF8 UPC#: 812437027556

Reviews/Awards

Customer Ratings

Write a Review 4.8 / 5 5 out of 5 (100%) reviewers would recommend this product
OWC DIY Bundle 750GB 2.5" Western Digital 7200RPM 9.5mm HDD, OWC Mercury On-The-Go Pro FireWire 800 / USB 3.0 & 2.0 Kit, Software Bundle and OWC 5 Piece Tool Kit Mfr P/N: DIYWD7750UF8 OWC SKU: OWCDIYWD7750UF8 Upgrade, transfer and use original drive as external! On-The-Go: 1 Year OWC Enclosure Limited Warranty
Drive: 5 Year Warranty
Sold Out
