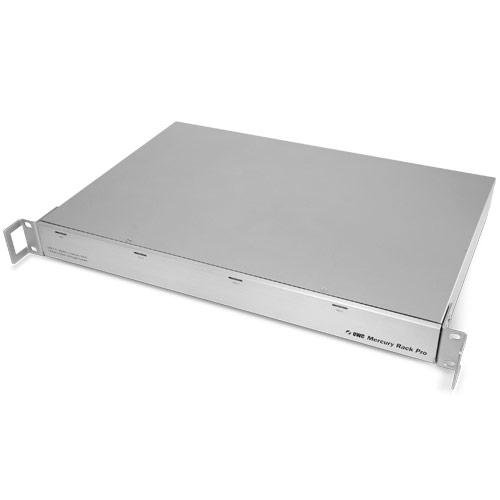

OWC Mercury Rack Pro

0GB 1U Multi-Interface 4 Bay
Performance RAID Kit

Used | OWC Tested

Mac / PC / USB 3.0 & 2.0 / FireWire 800 / FireWire 400 / eSATA / eSATA Port-Multiplier
OWC affordability, reliability, and ease-of-use
in a single 1U rack space.
OWC Mercury Rack Pro RAID 5 storage solutions come pre-configured as a hardware controlled RAID 5 "stripe with parity" array to provide both speed and data protection to meet high-performance demands.

The OWC Mercury Rack Pro RAID 5 consists of four matched SATA hard drives, up to 7200RPM; to provide the longest possible reliability and optimized performance.

Specifically designed to meet the performance demands of video and audio production, the OWC Mercury Rack Pro four Bay RAID 5 solution provides data transfer rates of over 300 Megabytes per second! Using the highest capacity SATA hard drive mechanisms available, and offering Plug & Play simplicity, the possibilities are endless!

Control and manage your RAID settings with the OWC RAID Manager Visual Interface. (read more)

Note: OWC Mercury Rack Pro solutions do not include rack rails. If rails are required for your rack setup, OWC has them available. Click Here.
Outstanding Features
High Performance
The Custom High Performance Chipset eSATA with Port-Multiplier capability, FireWire 800 (1394B), FireWire 400 (1394A), & USB 3.0 chipset, combined with the fastest SATA drive mechanisms available give OWC Mercury Rack Pro four Bay storage solutions some of the fastest drive transfer rates possible with eSATA exceeding 300 Megabytes per second!
High Reliability
A Top-Notch design using the best components gives the OWC Mercury Rack Pro an industry leading one year warranty and ensures the series is built to last!
Multi-Interface
The OWC Mercury Rack Pro RAID series offers (1) eSATA port with eSATA Port-Multiplier capability, (2) FireWire 800 (1394B) ports, (1) FireWire 400 (1394A) port, and (1) USB 3.0 port for easy Plug and Play on ANY system! The OWC Mercury Rack Pro RAID even includes all needed connection cables!
Swap Drives at Will
When using the OWC Mercury Rack Pro in Independent mode*, all four drives appear on your system as individual volumes drives, so you can mix and match drives of any size and brand and hot swap** the drives too.
Smart Power
Smart Power regulates power during prolonged periods of inactivity to save operating costs and prolong component lifespan.
Flexible Form
The OWC Mercury Rack Pro can easily be converted to a desktop form-factor via a Phillips screwdriver by simply removing the rack ears and installing the included anti-skid, vibration dampening feet.

*When using in independent mode via eSATA, you must use an eSATA Port Multiplier capable card.
Please see "Recommended eSATA Cards" in SPECS table and check for Port Multiplier compatibility.

**When using in Independent Mode and wanting to switch out one or more drives, ALL drives must be ejected (unmounted) from the Desktop to avoid data corruption.
From day one, the OWC Mercury Rack Pro Series has been designed to be everything you'd hope for and more!

OWC RAID Manager (BETA Version*)

Control and manage your RAID settings with this easy to use visual interface.

The power of simplicity is evident in the OWC RAID Manager. With easy to follow options and menus, this convenient user interface adds a level of control and monitoring for unrivaled operating confidence.

*While the functionality of the user interface is nearly complete, the overall look and feel as well as basic environment settings (dock and menu bar item) are still being finalized. As such, this product is in a BETA level of support and therefore no guarantee of system stability, data integrity, etc. is offered. For more information, please read the Software License Agreement here.

Please note: OWC RAID Manager is not compatible with OS X 10.10 or later.

Download the OWC RAID Manager

Two modes, Basic and Advanced, let you tailor the setting to best
suit your technical proficiency and particular needs.

Under the Basic Mode, you can:
  • View and monitor each drive's specific information including its serial number, model name, and capacity.
  • Create, and delete RAID arrays and monitor them visually and/or with audible alerts.
  • View drive S.M.A.R.T. status to determine future reliability.
  • Password protect your RAID array to prevent unauthorized access and modification of the array.
The Advanced Mode adds these features to the Basic set:
  • Create multiple RAID sets among the four drives
    • Eg. Select RAID 1 for two drives and RAID 0 for the other two drives.
    • RAID Choices: 0,1,3,5,10, Clone (an enhanced RAID 1), and Large (JBOD)
  • Selectable standby/sleep time for the Rack Pro
    • Select no standby or up to 10922 minutes for the Rack Pro to enter standby mode.
  • Program email notifications for drive failures, rebuild notifications, and other drive related events.

Download the OWC RAID Manager

Includes

Mercury Rack Pro includes
  • External OWC Mercury Rack Pro 4 Bay External Hard Drive
  • High Quality Double Shielded eSATA connecting cable
  • High Quality Double Shielded FireWire 800 (1394B) connecting cable (9-9 Pin cable)
  • High Quality Double Shielded FireWire 400 (1394A) connecting cable (6-6 Pin cable)
  • High Quality Double Shielded USB 3.0 conneting cable (A-B cable)
  • Integrated ROHS, CE, and FCC compliant Power Supply
  • Rack Mounting Handles
  • Anti-skid, Vibration Dampening Desktop Mounting Feet
  • Screws for Rack / Desktop Conversion
  • OWC Mercury Rack Pro Assembly Manual & User Guide (624KB PDF)

Gallery

Product Specifications:

Chipset

  • Custom High Performance eSATA with Port-Multiplier capability, FireWire 800 (1394B), FireWire 400 (1394A) and USB 3.0 Chipset

RAID / JBOD Support

  • Rear panel selectable Hardware RAID settings - SPAN, 0, 1, 3, 5, 10 and Non-RAID/Raid Ready: Independent Mode - Each drive appears as independent volume

Drive Rotation Speed

  • Varies with drive mechanisms installed

Drive Cache Size

  • Varies with drive mechanisms installed

Qualified Hard Drives

Serial ATA drive models OWC has tested and qualified for use with the Mercury Rack Pro:

A 'recommended' drive is one that, through our extensive and ongoing evaluation process, we've found to have optimum operational characteristics required for demanding RAID applications.

Note: OWC is always testing new drive models and adds additional models as they become available and have passed our stringent requirements. If you do not see a new drive model listed, please check back in the future for confirmed OWC Mercury Rack Pro Qualification.

Note: Regardless of drive model used, OWC recommends all drives used in RAID configurations match exactly for proper RAID operation.

**NOT RECOMMENDED**
  • Seagate Barracuda 7200.11 series - all models, particularly the 1.5TB 7200RPM model p/n ST31500341AS due to stability and performance concerns.
  • Western Digital Green drives - all models, due to potential critical operational issues attributed to the IntelliPower technology providing inconsistent variable transfer rates.

Port Configuration

  • eSATA - 1 eSATA port
    with Port-Multiplier capability
  • FireWire 800 - (2) 9 pin ports
  • FireWire 400 - (1) 6 pin port
  • USB 3.0 - (1) "A" port

Format

Max Data Transfer Rate

  • eSATA - 3.0 Gbit/s (or 300MB/s)
  • FireWire 800 - 800Mb/s (or 100MB/s)
  • FireWire 400 - 400Mb/s (or 50MB/s)
  • USB 3.0 - 5.0Gbit/s (or 500MB/s)
  • USB 2.0 - 480Mb/s (or 60MB/s)
  • USB 1.1 - 12Mb/s (or 1.5MB/s)

Port/Interface Bootability

    Can I use this solution as an external startup drive?
  • eSATA: Supported on Macs and PC's meeting minimum requirements. - Click for more info
  • FireWire 800: Supported on Macs and PC's meeting minimum requirements. - Click for more info
  • FireWire 400: Supported on Macs and PC's meeting minimum requirements. - Click for more info
  • USB 3.0: Supported on Macs and PC's meeting minimum requirements. - Click for more info
  • USB 2.0: Supported on Macs and PC's meeting minimum requirements. - Click for more info

Macintosh System Requirements

  • eSATA: Macintosh with eSATA PCI Interface card. eSATA requires Mac OS X 10.2 or later. Including 'Mavericks' 10.9.x.
  • FireWire 800 (1394B): Macintosh with FireWire 800 (1394B) interface, either built in or via PCI FireWire 800 (1394B) card. FireWire 800 (1394B) requires Mac OS X 10.2 or later. Including 'Mavericks' 10.9.x.
  • FireWire 400 (1394A): Macintosh with FireWire 400 interface, either built in or via PCI FireWire 400 card. FireWire 400 requires Mac OS 8.6 or later. Including 'Mavericks' 10.9.x.
  • USB 3.0: Macintosh OS 8.6 to 9.2.2, OS X 10.2.x or later. Including 'Mavericks' 10.9.x, and an available USB 3.0 port.
  • Time Machine® Compatible: Mac OS X 10.5 (version introduced) and later.

Windows System Requirements

  • eSATA: Windows system with eSATA PCI Interface, either built in or via PCI eSATA card. eSATA requires Windows 2000 or XP.
  • FireWire 800 (1394B): Windows system with FireWire 800 (1394B) interface, either built in or via PCI FireWire 800 (1394B) card. FireWire 800 (1394B) requires Microsoft Windows 2000 or XP.
  • FireWire 400 (1394A): Windows system with FireWire 400 interface, either built in or via PCI FireWire 400 card. FireWire 400 requires Windows ME, 2000 or XP.
  • USB 3.0: Windows Vista, XP, 2000, NT, 98, and an available USB 3.0 port.

Linux Requirements

  • Linux compatible via supported USB and FireWire interfaces.

Cooling

  • Three (3) 4cm Brushless, whisper quiet, constant speed fans

Power Supply

  • UL Listed U.S./International Adjustable 100 ~ 240v, 50/60Hz, 200W (Max.) input Power Supply (power cords for International use sold separately).

External Case Dimensions

  • 11.9"(D) x 17.3"(W) x 1.7"(H)
  • 30.3cm x 44cm x 4.5cm
  • 11.9"(D) x 17.3"(W) x 2.2"(H) (with feet)
  • 30.3cm x 44cm x 5.5cm (with feet)
  • 11.9"D) x 19.2"(W) x 1.7"(H) (with rack mounting handles)
  • 30.3cm x 48.7cm x 4.5cm (with rack mounting handles)

Enclosure Weight (no accessories)

  • Approximately 10 lbs. (4.5kg)

Product Manual

Operating Environment:

Temperature

  • Varies with drive mechanisms installed

Relative Humidity

  • Varies with drive mechanisms installed

Shock

  • Varies with drive mechanisms installed

Vibration

  • Varies with drive mechanisms installed
Manufacturer provided specifications for Other World Computing p/n OWCMRP1UF8U3EP UPC#: 794504769623

Customer Ratings

Write a Review 4.3 / 5 3 out of 3 (100%) reviewers would recommend this product
Verified Buyer
Reviewer: Anonymous Location: Lisle, IL Age: 35-44 Experience Level: Power User Owned Product: over 6 months
Rating: 3/5 Looks pretty, NO GOOD for mobile/field use. April 22, 2016 I bought this to use as part of a touring/recording rig for synth/keyboard for a couple of bands I'm in. The nature of my data needs are for full redundancy, high storage and low access times... this does all of that. I have it mounted in a musician's "road case", a mobile flight case with 19" rack rails designed to hold gear like this. What was NOT obvious in the product description is that this unit is COMPLETELY useless for traveling/moving/mobile use. When packing the rack case up, I have to be careful to NEVER lift it so the front door of the unit points down at all, or the door will fly open and all the drives will fall out. There are NO extra latching mechanisms to keep the drives in their bays for any non-level use... they literally just "sit there" in their bays. Like I said, it does a good job if you mount it in a closet and never plan to move it ever, but it's a giant pain and an albatross around my neck now to work with is in a mobile application. This seems to me to be a major design flaw, how are there not latching mechanisms to keep the drives in their bays, REGARDLESS of whether you're ever going to tip the unit? So, after having to collect all my drives out of the inside of the front lid of my road case several times now, this is my major complaint.

My next issue is that there is a power-saving mode that kicks in after a certain amount of time, which powers down the drives and often loses the connection/visibility to the computer completely, depending on the particular software in use. This does NOT play nice with many of my music software applications, as often when samples are loaded into RAM, there is no need to "Read" for a period of time, but when I change patches, the drive connection has been corrupted and the software freaks out. Not good at all live. Here's the kicker... there's no way to turn it off. Yep, confirmed with OWC support personally. It is a "feature" that you get for free even if you don't want it. So now I'm left trying to remember to intentionally ping the hard drive every so often during a live performance to not lose the connection. I have other things to do when playing live, this shouldn't be one of them. It would have taken no time to build in a little DIP switch that enabled/disabled power-save mode, but there you have it.

So, it's a nice unit for VERY particular uses... i.e. mounting in your server closet and never moving it again. RAID 10 works as it should. It was a bad choice for my particular uses, however, and the product description provided ZERO clues as to how this thing was engineered and for what uses. I am now out a significant amount of $$$ for a unit that is more redundant than, but only barely more robust than, a simple USB hard drive. Wait, actually, I can throw those drives into my bag day after day and they hold up just fine without doors opening and drives spilling out. I would not buy this again for this purpose.

Dyllon M was tirelessly patient with me and manage the incident shipping it back and forth to help me fix a drive/RAID problem, but it does little to help me use of it now.

I would recommend this item to a friend!

Verified Buyer
Reviewer: Anonymous Location: Budapest, Hungary Age: 55-65 Experience Level: Power User Owned Product: less than a month
Rating: 5/5 happy as a clam in wet sand!! September 13, 2015 I bought an OWC Mercury Rack Pro and brought it to Europe where I live. I plugged it in and the internal voltage switch did not work. It died. OWC was GREAT! They gave me an RMA # and in a short time I received a replacement. The new one has a voltage switch, which is now set to 230v. The enclosure and 4 pcs of 5 TB HDs are all working GREAT now for a couple of weeks. I am so thrilled. What a fantastic company! Happy! Happy! Thank you OWC!! RECOMMENDATION TO BUYERS: If you live somewhere where the voltage is NOT 110v, make SURE your product has a voltage switch, even it the product has an internal switch. Better safe than sorry!

I would recommend this item to a friend!

Verified Buyer
Reviewer: Anonymous
Rating: 5/5 I love this thing... April 2, 2015 Works and works well. I love it and use it for a ZFS pool. Have used it with Mac OpenZFS and FreeBSD 9&10.

Note: IF using with esata make sure your card has a multiplier as there isn't one built into this box.

Great quality and transfer rate over USB 2.0/FW800 on Mac and USB3.0 on FreeBSD.

Best Price:Quality ratio out there. There is really no competition for this unless you want to pay 3x as much. ... Will be buying another soon.

I would recommend this item to a friend!

OWC 0GB Mercury Rack Pro Mfr P/N: OWCMRP1UF8U3EP OWC SKU: OWCMRP1UF8U3EPU Multi-Interface 4 Bay RAID Kit 90 Day OWC Limited Warranty
