Quality Solutions. Expert Support. Since 1988.

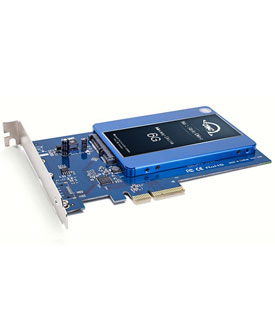

DIY Bundle

480GB OWC 6G SSD
and OWC Accelsior S

Mac / PC / PCIe
Mercury Electra® 6G and Accelsior S
An SSD for your PCIe Slot
Give your Mac Pro tower or PC a 6G performance boost
The OWC 6G SSD and OWC Accelsior S DIY bundle is the simple solution to add a high speed SATA 6G drive to PCs or silver Mac Pro towers otherwise restricted to 3G architecture. Combined with the high-performance Mercury Electra SSD, Accelsior S brings cutting edge 6G performance to your SATA 3G system.
High-performance storage
Faster startup and quick response times with over 500MB/s peak sustained data rates, the Mercury Electra 6G SSD line delivers unbeatable performance with 100X greater data protection than enterprise class Hard Disk Drives, and RAISE technology for RAID like data protection and reliability. And it's backed by a 3 Year OWC SSD Limited Warranty.
Internal storage expansion at lightning speed
With more than 500 MB/s of throughput, the Accelsior S dual-lane PCIe 2.0 card delivers flexible storage expansion – with a speed boost – to your Mac or PC. Accelsior S is the perfect complement to OWC's Mercury family of high-performance SSD's, allowing up to an extra 1TB of fast storage expansion.

With no drivers or extra software needed, upgrading your Mac Pro or PC tower with a Mercury Extreme Pro and Accelsior S is a breeze.

Release Candidate (RC) firmware set

There are two kinds of firmware for SSDs Mass Production (MP) and Release Candidate (RC). Prior to an MP firmware release, there are beta firmware releases and an RC firmware release. Often, the RC is the same as the MP release, however there can be small changes and bug fixes made between the two. OWC has evaluated the RC for the 6Gb/s SandForce 2281 Processor and found it to be stable with no issues reported during our testing. However, as with any evolutionary product, issues may surface as different usages and configurations are employed and it is important to understand that there will be further updates and revisions.

Since no firmware update is currently offered for the OWC Mercury EXTREME Pro 6G SSD, no update page exists. To see the typical steps involved with a self performed field firmware update, please visit our 3Gb/s product update page at: http://eshop.macsales.com/Customized_Pages/Framework.cfm?page=sf_firmware.html

It is important to note that the current firmware update tool requires the use of Windows XP/Vista/7. OWC is currently working on a Mac OS based update tool, but we do not have an exact availability date.

480GB Mercury Electra 6G SSD Specifications:

Specifications

Controller
SandForce 2281 Series Processor with 7% Over Provisioning
NAND
Tier 1 Asynchronous MLC NAND Flash
Form Factor
Standard 7mm 2.5"
Interface
SATA 6Gb/s, 3Gb/s & 1.5Gb/s supported, SATA 3.0 Compliant
Capacity1
480GB useable capacity
Total Flash Memory Components – 512GB
32GB allocated to real-time data redundancy & error correction
Formatted Capacity2
447GiB
RAID Support
Qualified for single drive and multiple drive production workstation RAID 0/1/10/0+1 and SPAN usage.
SMART Attributes
Standard5
Native Command Queuing
up to 32 commands
Manufacturer Model Number
OWCSSD7E6G480
RoHS Compliant
Yes
Format

Physical

Height (max)
7mm (0.276″)
OWC 7mm – 9.5mm Adapter
1 included (buy additional)
Width (max)
70.06mm (2.758″)
Length (max)
100.12mm (3.941″)
Weight
77 grams +/- 2 grams
0.170 lbs +/- 2.71 oz

Reliability3

Data Reliability
ECC Recovery: Up to 55 bytes correctable per 512-byte sector
Security
Chip Based Data Encryption: 128-bit AES-compliant
TRIM Support
OS Dependent
Nonrecoverable Read Errors
Less than 1 sector per 1016 bits read
Warranty
3 Year OWC SSD Limited Warranty
(Standard return policy applies.)

Performance

Sustained
Reads 6Gb/s (up to)
556MB/s
Sustained
Writes 6Gb/s (up to)
523MB/s
Sustained
Reads 3Gb/s (up to)
284MB/s
Sustained
Writes 3Gb/s (up to)
268MB/s
Read Incompressible
Data Rate (up to)
208MB/s
Write Incompressible
Data Rate (up to)
235MB/s
Random 4K Read4
Up to 60,000 IOPS
Random 4K Write4
Up to 60,000 IOPS
Read Latency
less than 0.1ms
Write Latency
less than 0.1ms

Environmental (Operating)

Temperature (°F)
32°F to 158°F
Temperature (°C)
0°C to 70°C

Environmental (Non-Operating)

Temperature (°F)
-40°F to 185°F
Temperature (°C)
-40°C to 85°C

Acoustics

Idle (Typical)
0.0 bels
Seek (Typical)
0.0 bels
  1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
  2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
  3. Specific application environments such as temperature and duty cycle will affect the overall reliability.
  4. Specifications provided by SandForce.
  5. Temperature reporting is currently an unsupported feature because due to the operating characteristics of SSDs, it is highly unlikely one would ever exceed an OWC Mercury SSD's stated operating temperature ceiling of 158F/70C. However, we are looking into supporting this feature in the future via a firmware update. Firmware updates can be found here: http://eshop.macsales.com/tech_center/OWC/SSD.

Accelsior S Specifications:

OWC Part Number

  • OWCSSDACL6G.S

Form Factor

  • Half height, half length

HBA controller

  • Asmedia 1062

Interface

  • PCIe 2.0 x2

SMART Attributes

  • Depends on mechanism installed

AHCI Compliant

  • Yes – Plug and Play installation, no drivers required

OS compatibility

  • Mac OS X 10.6 and up
  • Windows Server 2008 and higher
  • Not compatible as a Windows boot drive on a Mac

Supported mechanisms

  • All 2.5" HDD and SSD SATA 1.5, 3.0, 6.0Gb/s

Performance

  • Read: up to 550MB/s – this depends on mechanism installed
  • Write: 530MB/s – this depends on mechanism installed

RoHS Compliant

  • Yes

Acoustics

  • 0.0 bels for both Idle and Seek

Environment

  • Environmental (Operating)
    • Temperature (°F) 32° — 158°
    • Temperature (°C) 0° — 70°
  • Environmental (Non-Operating)
    • Temperature (°F) −40° — 185°
    • Temperature (°C) −40° — 85°
Manufacturer provided specifications for Other World Computing p/n SSDACL6GE480

Gallery

Video

Includes

Warranty

The best warranty is one you never have to use - but should the need occur - we're proud to provide a superior level of support and service coverage to our customers.

3 Year OWC SSD Limited Warranty

3 Year OWC Limited Warranty

Even when not used, we understand the peace of mind afforded by a longer warranty period. OWC's industry leading coverage is a testament to our confidence in the reliability of the solutions that we offer. OWC solutions are engineered to demanding quality standards in order to deliver the most reliable, highest performance available on the market in each storage category.
DIY Bundle 480GB OWC 6G SSD and OWC Accelsior S Mfr P/N: SSDACL6GE480 OWC SKU: OWCSSDACL6GE480 DIY kit includes a Mercury Electra 6G SSD and Accelsior S for installation in a PCIe Slot 3 Year OWC Limited Warranty Ships: Same Day Only $284.98MacSales.com Price $219.75
Add to CartOther World Computing SSDACL6GE480 In Stock, Click to Buy Now
