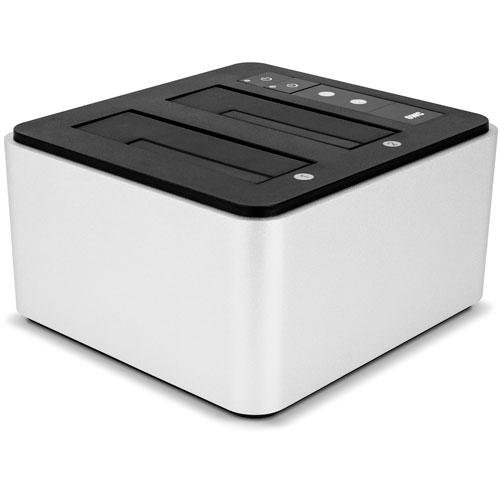

OWC

Drive Dock
Dual Drive Bay Solution

Used | OWC Tested

Mac / PC / Thunderbolt 2 / USB 3.1 Gen 1
For Bare 2.5" and 3.5" SATA Drives
You Need the OWC Drive Dock
The Ultimate Drive Dock
Drive Dock is the ultimate, high-performance bare drive access tool. For creative workflows, backup, or other tasks requiring constant access to multiple drives, Drive Dock delivers a compact, easy solution with the exceptional performance of Thunderbolt™ 2 technology.
An Essential Workflow Solution
OWC Drive Dock is the fastest way to access bare SATA drives. Hot swap, read multiple drives simultaneously, or boot from bare drives, all at the speed of the Thunderbolt 2 and USB 3.0 interfaces.

For video and audio content pros working with multiple bare drives on big projects, Drive Dock delivers extreme transfer speeds with amazing flexibility and convenience, making it an indispensable drive tool.
Designed to Accommodate Your Life
Drive Dock's unique design makes hot-swapping a breeze. Two drive bays accommodate both 2.5" and 3.5" drives and can access a drive in each simultaneously.

Each bay features its own independent power switch and LED activity monitor. Dual Thunderbolt 2 ports deliver extreme-speed data transfers, and support daisy-chain expansion with up to five additional Thunderbolt devices.

Drive Dock also includes a USB 3.1 Gen 1 port for versatile compatibility and the auto-switching internal power supply is compatible with any dual prong cable.
Customized Flexibility
Drive Dock is flexible enough to use on almost any system. It works perfectly as an on-location backup solution, or for industry professionals using multiple bare drives. Featuring rugged aluminum construction, quiet, fanless operation, and complete with USB 3.0 and Thunderbolt cables, the OWC Drive Dock is an essential component to any high-demand workflow.

Product Specifications:

Software Requirements

  • OS
    • Thunderbolt
      • OS X 10.10 or later
      • Windows 7 SP1 or later
    • USB 3.0
      • OS X 10.6 or later
      • Windows XP or later
      • Linux Kernel v. 2.6.31 or later
  • Driver
  • Note(s)
    • Thunderbolt connectivity for OWC Drive Dock is not supported in Boot Camp.

Hardware Requirements

  • Minimum
    • Mac or PC featuring Thunderbolt or USB 2.0 interface
  • Recommended (Best Performance
    • Mac or PC featuring Thunderbolt 2 or USB 3.0 interface

Bootability

  • Thunderbolt: OS X 10.10 or later
  • USB: Any Mac that supports booting via USB

UASP (USB Attached SCSI Protocol) Compliant

  • Yes

Interface (Chipset)

  • (2) Thunderbolt 20Gbps
  • (1) USB 3.1 Gen 1 (ASMedia ASM1153E)

Drives Supported

  • (2) 3.5" SATA 6Gb/s drives
  • or (2) 2.5" SATA 6Gb/s drives

Performance

  • Benchmarks
    • Single Drive
      • Thunderbolt: 522 MB/s Read and 477 MB/s Write1
      • USB 3.0: 427 MB/s Read and 347 MB/s Write2
    • RAID 0
      • Thunderbolt: 521 MB/s Read and 482 MB/s Write3
      • USB 3.0: 429 MB/s Read and 352 MB/s Write4
  • Note(s)
    • Speeds will vary based on drives used, setup, and other factors.

Power

  • Power Supply
    • Internal UL-listed universal auto-switching
    • AC input: 100 ~ 240V, 50/60Hz
    • DC output: 12V, 6.25A
    • Adapter plugs for international use sold separately.

Hot-Swapping

  • Thunderbolt only5

Operating Environment

  • Environmental (Operating)
    • Temperature (°F) 41° – 86°
    • Temperature (°C) 5° – 30°
  • Environmental (Non-Operating)
    • Temperature (°F) −4° – 122°
    • Temperature (°C) −20 – 50°
  • Relative Humidity (Operating)
    • 8 – 90% (non-condensing)
  • Relative Humidity (Non-Operating)
    • 5 – 95% (non-condensing)

Dimensions

  • Height: 3.3 in (8.4 cm)
  • Width: 6.3 in (16.0 cm)
  • Length: 5.8 in (15.0 cm)

Weight (Without Drives)

  • 2.15 lb (0.975 kg)
  1. Thunderbolt benchmark testing performed by OWC in September 2015 using a 2.6GHz Intel quad-core i7 15-inch MacBook Pro with 16GB RAM and 1TB SSD. Tests conducted on 1 TB OWC Mercury Electra 6G SSDs. Tested using QuickBench™ 5.0 Extended Test (20-100 MB) over 10 cycles, cache disabled. Results represent the extended test average.

  2. USB 3.0 benchmark testing performed by OWC in September 2015 using a 2.6GHz Intel quad-core i7 15-inch MacBook Pro with 16GB RAM and 1TB SSD. Tests conducted on 1 TB OWC Mercury Electra 6G SSDs. Tested using QuickBench™ 5.0 Extended Test (20-100 MB) over 10 cycles, cache disabled. Results represent the extended test average.

  3. RAID 0 Thunderbolt benchmark testing performed by OWC in November 2015 using a 2.6GHz Intel quad-core i7 15-inch MacBook Pro with 16 GB RAM and 1 TB SSD. Tests conducted on two 1 TB Toshiba DT01ACA Series hard drives with 32 MB data buffers in a SoftRAID 5.1 Lite RAID 0configuration. Tested using QuickBench™ 5.0 Extended Test (20-100 MB) over 10 cycles, cache disabled. Results represent the extended test average.

  4. RAID 0 USB 3.0 benchmark testing performed by OWC in November 2015 using a 2.6GHz Intel quad-core i7 15-inch MacBook Pro with 16 GB RAM and 1 TB SSD. Tests conducted on two 1 TB Toshiba DT01ACA Series hard drives with 32 MB data buffers in a SoftRAID 5.1 Lite RAID 0 configuration. Tested using QuickBench™ 5.0 Extended Test (20-100 MB) over 10 cycles, cache disabled. Results represent the extended test average.

  5. When connected via USB, it is possible to unmount either drive from the OS without impacting the other drive, but you cannot power a bay on or off, or physically connect or disconnect one of the drives, without causing the other drive to temporarily unmount.

Manufacturer provided specifications for Other World Computing p/n TB2U3DKR2 UPC#: 812437022483

Gallery

Includes

  • OWC Drive Dock Dual Bay Solution
  • 0.6 meter (24") USB 3.1 Gen 1 cable (Standard-A to Standard-B)
  • 1 meter (39") Thunderbolt cable
  • Internal power supply and power cable
  • User Guide (Download Only)
OWC Drive Dock Dual Drive Bay Solution Mfr P/N: TB2U3DKR2 OWC SKU: OWCTB2U3DKR2U High-performance, swappable, bare drive access tool for reading multiple 3.5" and/or 2.5" drives simultaneously 2 Year OWC Limited Warranty
