We're sorry, but this item is no longer for sale. However, there may be more External Drives and Enclosures items available.

DIY Bundle

and USB 3.0 Drive Adapter

SATA / IDE / USB 3.0
Mercury Legacy Pro and Universal Drive Adapter
The fastest drive upgrade for yesterday's Macs and PCs.

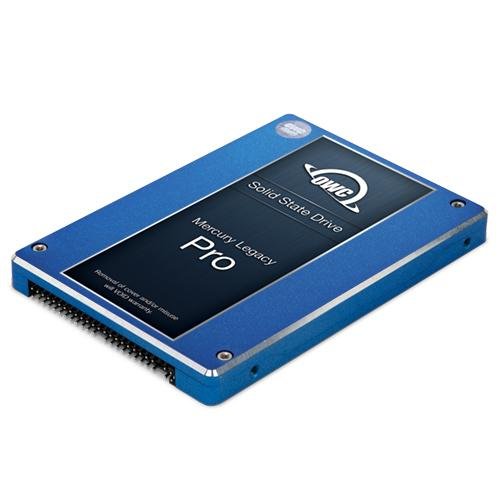

Add a technological supercharger to your existing Mac or PC with the OWC Mercury Legacy Pro SSD. It's the fastest, most reliable IDE/ATA mechanism available to breathe lightning fast performance into that trusty machine and extend its usefulness.

Boot, load, and access data nearly instantaneously. Tedious system responsiveness is a thing of the past! Enjoy award-winning ultra-efficient Block Management & Wear Leveling technologies that virtually eliminate any speed reduction over long term use of the drive. And with no moving parts to break or fail, the OWC Mercury Legacy Pro SSD offers uncommon ruggedness for notebook users with up to 100x greater reliability than traditional hard drives.
The "Swiss Army Knife" of Disk Connectivity…
The NewerTech USB Universal Drive Adapter is the perfect tool for accessing bare drives without having to install them into a computer or drive enclosure. Being compatible with almost any 2.5-inch, 3.5-inch or 5.25-inch drive from the last 15 years makes it the go-to tool for accessing data on IDE, ATA, ATAPI, and SATA drives.

It's the ultimate add-on to any workbench, small enough to travel in your toolbox or tuck away in a drawer so it's ready whenever you need to access drive data via USB. The Universal Drive Adapter is the "must have" universal data access tool.

480GB Mercury Legacy Pro IDE/ATA Specifications:


Form Factor
2.5″ SSD
480GB useable capacity
Total Flash Memory Components - 512GB
32GB allocated to real-time data redundancy & error correction
Formatted Capacity2
Tier 1 3X-nm Multi-Level Cell (MLC) NAND Flash Memory
SandForce SF2181 Series Processor with full 7% Over Provisioning firmware set.
For the latest firmware update click here.
SMART Attributes
RAID Support
Manufacturer Model Number
RoHS Compliant


Height (max)
9.45mm (0.372″)
Width (max)
70.06mm (2.758″)
Length (max)
100.12mm (3.941″)
Weight (typical)
80g (0.176 lbs.)


MTBF (Mean Time Between Failures)4
Data Reliability
ECC Recovery: Up to 24 bytes correctable per 512-byte sector
Chip Based Data Encryption: 128-bit AES-compliant
TRIM Support
Nonrecoverable Read Errors
Less than 1 sector per 1016 bits read
3 Year OWC Warranty
(Standard return policy applies.)


Sequential Read (up to)
Sequential Write (up to)
Random 4K Read5
Up to 50,000 IOPS
Random 4K Write5
Up to 50,000 IOPS
Read Latency
less than 0.1ms
Write Latency
less than 0.1ms


Read Power
2.2 Watts
Write Power
2.5 Watts
Idle Power
0.09 Watts

Environmental (Operating)

Temperature (°F)
32°F to 158°F
Temperature (°C)
0°C to 70°C

Environmental (Non-Operating)

Temperature (°F)
-40°F to 185°F
Temperature (°C)
-40°C to 85°C


Idle (Typical)
0.0 bels
Seek (Typical)
0.0 bels
  1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
  2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
  3. Specific application environments such as temperature and duty cycle will affect the overall reliability rates.
  4. Based on SandForce processor operation.
  5. Specifications provided by SandForce.

USB 3.0 Universal Drive Adapter Specifications:

Software Requirements

  • OS
    • OS X 10.3.9 or later
    • Windows XP or later
    • Linux version with support for USB 3.0
  • Driver
    • No driver required
  • Note(s)
    • Mac: Support for drives over 2TB requires OS X 10.5 and later
    • PC: Support for drives over 3TB requires Windows XP 64-bit versions or later.

Hardware Requirements

  • Minimum
    • Mac or PC featuring USB 1.1 interface
  • Recommended (Best Performance
    • Mac or PC featuring USB 3.0 interface

Interface (Chipset)

  • (1) USB 3.0 (Innostor IS611)
  • (1) 40-pin ATA
  • (1) 44-pin ATA
  • (1) SATA

Drives Supported

  • 5.25" SATA or IDE/ATA/ATAPI 40/44 pin drives
  • 3.5" SATA or IDE/ATA/ATAPI 40/44 pin drives
  • 2.5" SATA or IDE/ATA/ATAPI 40/44 pin drives


  • Power Supply
    • External UL-listed, universal auto-switching
    • AC input: 100 ~ 240V, 50-60Hz
    • DC output: 12V, 2.0A

Power Indicator

  • Multifunction LED


  • RoHS CE


  • Height: 0.5 in (13.5 cm)
  • Width: 1.9 in (7.1 cm)
  • Length: 3.4 in (22.7 cm)

Weight (with accessories)

  • 14.3 oz (0.40 kg)
Manufacturer provided specifications for Other World Computing p/n UDA3SSDLP480 UPC#: 812437026184



  • Mercury Legacy Pro SSD
  • USB 3.0 Universal Drive Adapter


The best warranty is one you never have to use - but should the need occur - we're proud to provide a superior level of support and service coverage to our customers.

3 Year OWC SSD Limited Warranty

1 Year NewerTech Product Limited Warranty

Even when not used, we understand the peace of mind afforded by a longer warranty period. OWC's industry leading coverage is a testament to our confidence in the reliability of the solutions that we offer. OWC solutions are engineered to demanding quality standards in order to deliver the most reliable, highest performance available on the market in each storage category.
DIY Bundle IDE/ATA SSD and USB 3.0 Drive Adapter Mfr P/N: UDA3SSDLP480 OWC SKU: OWCUDA3SSDLP480 IDE/ATA SSD Drive Kit with adapter. Fast, Simple, Plug & Play. 3 Year OWC Limited Warranty
