OWC Mercury EXTREME™ Enterprise Class SSD
200GB SATA 3.0GB/s Solid State Drive

High-Performance Enterprise Class Storage for Notebook and Desktop Computers.
Exceptional choice for Ultra-High RAID-0,1,5,10 Performance

When only the fastest and most reliable Solid State Drive on the market today will suffice for your data storage and backup, look no further than the OWC Mercury EXTREME Enterprise SSD.

  • Get maximum mobile performance and battery life from your notebook.
  • Turn your Mac Pro or PC desktop into an EXTREME performance single drive or RAID workstation.

The Mercury EXTREME SSD features industry leading SandForce® DuraClass Technologies:

  • DuraWrite™ extends the endurance of your Solid State Drive (SSD).
  • Intelligent Block Management & Wear Leveling automatically distributes data evenly across the entire SSD.
  • Intelligent Read Disturb Management spreads the active read/write across the flash components eliminating data corruption caused by constant use.
  • Intelligent “Recycling” for advanced free space management gradually re-writes data across the SSD over time to ensure data never gets corrupted.
  • RAISE™ (Redundant Array of Independent Silicon Elements) protects the data on your drive similar to having a RAID setup.
  • Best-in-Class ECC Protection for longest data retention and drive life.

This internal 2.5" SATA SSD uses a high performance SandForce Driven™ processor with DuraClass™ technology to deliver the highest transfer speed, endurance, performance, and power efficiency available today.

With sustained read and write times over 260MB/s, up to 100X greater data protection than enterprise class HD's, and RAISE™ technology for RAID like data protection and reliability, the OWC Mercury EXTREME SSD line delivers unbeatable performance that's designed and built in the U.S. from domestic and imported parts and backed by a three year warranty.

Adding to...
a Mac Pro HDD bay?
Adding to...
a 5.25" optical bay?
Adding to...
a laptop optical bay?


Use the Icy Dock 2.5" to 3.5" SATA / SSD HDD Converter Tray!


Use the OWC Multi-Mount Hard Drive adapter brackets!

Use the OWC Data Doubler Optical Bay Hard Drive/SSD Mounting Solution!

No Risk, No Hassle 30-Day Money Back Guarantee.
For more information on OWC return policies, click here.

One of the Fastest 3G drives on the market...and Built in the USA!

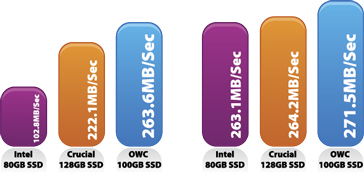

Benchmark Proven Performance
WRITE SPEEDS
READ SPEEDS
We compared our 100GB OWC Mercury EXTREME SSD against industry leading SSD's from Intel and Crucial. All drives tested in a Mac Pro 2.93GHz Quad-Core with 8GB of RAM.
Faster times are better.



High Performance Internal Storage
Replace your conventional hard drive with a reliable solid state drive. Unlike traditional hard disk drives, OWC solid state drives have no moving parts, resulting in a quiet, cool, highly rugged storage solution that also offers faster system responsiveness.

Better by Design
"Mean Time Before Failure"—We all know that nothing lasts forever. But that doesn't mean you shouldn't get the most out of your investment. OWC SSD with Durawrite™ Technology, optimizes writes to the flash memory over conventional controllers increasing the overall endurance and reliability of the complete SSD. Highly intelligent block management and wear leveling also extends the overall endurance. With this technology, even MLC-based SSDs can operate in enterprise environments for 5+ years without daily write restrictions. This adds up to a MTBF that is up to 5X longer than the other leading solid state or enterprise class hard drive mechanisms on the market.

Additionally, as there are no volatile memory elements in this storage device, the need for cache is completely negated. The drive is just that fast from the get-go!


Mercury EXTREME Pro Class SSD Awards & Reviews
MacLife Great
"Power users can rejoice at the speed and performance increase this SSD delivers." - Florence Ion, MacLife


Technical Specifications
Controller SandForce Processor with full SF1200 Series 28% Over Provisioning Enterprise firmware set
Recommended Applications Qualified for Single or Multiple Drive use. RAID-0,1,5,10
Capacity 200GB* useable capacity
  • Total Flash Memory Components - 256GB
  • 56GB allocated to enterprise-class real-time data redundancy & error correction
  • *1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
    Bandwidth

    Sustained Sequential Read: up to 285MB/s
    Sustained Sequential Write: up to 275MB/s

    I/O Per Second (IOPS)** Random 4KB: Up to 50,000 IOPS
    ** Specifications provided by SandForce.
    NAND Flash Components Tier 1/Grade A Multi-Level Cell (MLC) NAND Flash Memory
    Read Latency less than 0.1ms
    Write Latency less than 0.1ms
    Reliability 2,000,000 hours Mean Time To Failure (MTTF)
    (based on SandForce processor operation)
    Interface SATA I (1.5Gb/s) and SATA II (3.0Gb/s) supported, SATA 2.6 Compliant
  • Native Command Queuing up to 32 commands
  • SMART Command Transport
  • TRIM Support Advanced TRIM Support in Windows 7
    Operating Environment Temperature

    0°C to +70°C

    Non-Operating Environment Temperature -55°C to +150°C
    Power Consumption Active: 2200mW (2.2W) Typical, up to 2500mW (2.5W)
    Inactive (DIPM): 90mW (.09W) Typical
    Protection ECC Recovery: Up to 24 bytes correctable per 512-byte sector
    Unrecoverable Read Errors: Less than 1 sector per 1017 bits read
    Security Chip Based Data Encryption: 128-bit AES-compliant
    RoHS Compliant Yes
    Format Unformatted. For instructions on formatting click here.
    Form Factor, Weight and Dimensions

    2.5" Industry Standard Hard Drive Form Factor
    Weight: 80 grams +/- 2 grams
    Drive Dimensions: 100.12mm x 70.06mm x 9.45mm

    Warranty: 5 Year OWC Warranty



    IMPORTANT LAPTOP USER NOTE: There have been reports of system hangs in relation to hibernation mode. We recommend not using ANY program that puts your laptop into hibernation mode when using an SSD.

    Normal, automatic sleep mode functions perfectly with no issues.

    We also highly recommend you avoid draining your battery completely (5% or less remaining charge) to avoid being automatically switched into hibernation mode by your machine's power saving settings. If your notebook does go into hibernation mode, the machine can hang once it is plugged into an outlet or when using a charged battery as the machine comes out of hibernation mode. If you should experience this, you will need to restart your machine and any unsaved work from that session will be lost. SandForce is working on this issue and it will be addressed in a future firmware update. We will post the update on our firmware update page as soon as it becomes available.
