SIIG

DP 3-Port FireWire 800 PCIe Host Adapter

Mac / PC / PCIe / FireWire 800 / FireWire 400
Two External FW800 & One FW400 Ports
Hot Swappable
SIIG's DP FireWire 800 3-Port PCIe instantly adds three FireWire ports to your desktop computer. The FireWire 800 (1394b) 3-Port PCIe host adapter supports data transfer rates of up to 800 Mb/s and allows you to hot-swap devices (connect and disconnect) without first turning your system off. It works with a variety of FireWire 400 (1394a) and FireWire 800 (1394b) devices such as DV camcorders, CD-RW/DVD-ROMs, portable hard disks, digital cameras, and other audio/video devices. It fully supports IEEE P1394b and is backwards compatible with 1394a-2000 and 1394-1995 standards.
Add more FireWire ports to PowerMac G5, Mac Pro, or PC.
The FireWire 800 3-Port PCIe host adapter comes with two 9-pin (1394b) and one 6-pin (1394a) ports, providing flexible data transfer rates up to 800Mb/s and 400Mb/s respectively. The onboard power connector provides a reliable power source. Included with the FireWire 800 3-Port PCIe are a FireWire 800 driver CD and user's manual.

The DP FireWire 3-Port PCIe is powered by Texas Instruments chip and is fully compliant with industry standards, including PCI Express Base Specification Revision 1.0a. It is also FCC Class B (DoC) & CE regulatory approved and RoHS compliant.

The DP FireWire 3-Port PCIe is fully compatible with a wide variety of Windows and Mac operating systems and is backed by SIIG's limited lifetime warranty.

Product Specifications:

SIIG Part Number

  • NN-E38012-S3

Chipset

  • Texas Instruments TI XIO2213

Features

  • PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
  • Installs in any available PCI Express slot and supports data rates up to 800Mbps
  • Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
  • Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing

Ports

  • Two FireWire 800
  • One FireWire 400

Connections

  • Internal - none
  • External - 3 Ports

Bus Specifications

  • PCI-Express x1

Form Factor

  • Standard PCI

External Connectivity

  • x2 1394b connectors
  • x1 1394a connector

Internal Connectivity

  • none

Data Transfer Rates

  • FireWire 800 ��� 800Mbps (or 100MB/sec)
  • FireWire 400 ��� 400Mbps (or 50MB/sec)

Operating System Support

  • Windows® 8 (32-/64-bit)
  • Windows® 7 (32-/64-bit)
  • Windows® Vista (32-/64-bit)
  • Windows® XP (32-/64-bit)
  • Windows® Server 2003 & 2008 (32-/64-bit)
  • Windows® Server 2008 R2
  • Windows® 2000
  • Mac OS® X v10.4 or later

Certifications

  • FCC, CE, RoHS

Temperature

  • Operating: 32 to 140°F (0 to 60°C)
  • Storage: -4 to 140°F (-20 to 60°C)

Humiditiy

  • Operating: 20% to 80% RH
  • Storage: 10% to 90% RH

Dimensions

  • 3.70" x 2.67" (9.40 x 6.80 cm)

Weight

  • 0.35 lbs (158 g)

Warranty

Manufacturer provided specifications for SIIG p/n NN-E38012-S3 UPC#: 662774005577

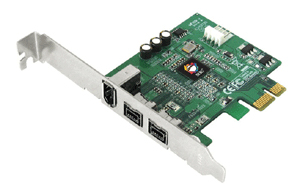

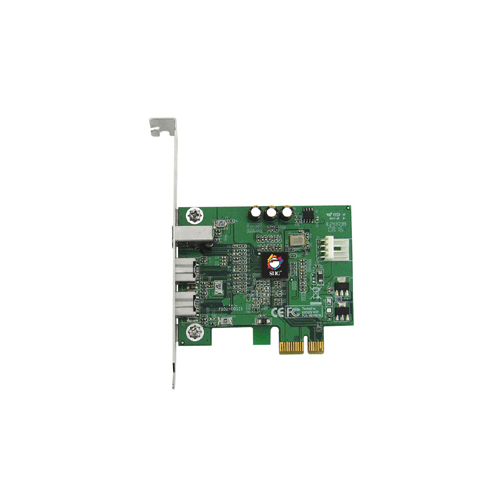

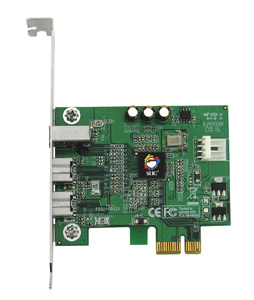

Gallery

This product is compatible with... Learn how to find your Mac's model ID
Mac Pro
Mac Pro 12-Core (Mid 2012)
(June, 2010)
Model ID: MacPro5,1
2.4GHz, 2.66GHz, 3.06GHz
Mac Pro
Mac Pro 6-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.2GHz
Mac Pro
Mac Pro 12-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.66GHz, 2.93GHz
Mac Pro
Mac Pro 8-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.4GHz
Mac Pro
Mac Pro 6-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.8GHz, 3.2GHz
Mac Pro
Mac Pro 8-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.26GHz, 2.66GHz, 2.93GHz
Mac Pro
Mac Pro 4-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.66GHz, 2.93GHz, 3.33GHz
Mac Pro
Mac Pro 8-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz, 3.0GHz, 3.2GHz
Mac Pro
Mac Pro 4-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz
Mac Pro
Mac Pro 8-core (Early 2007)
(April, 2007)
Model ID: MacPro2,1
3.0GHz
Mac Pro
Mac Pro 4-core (Mid 2006)
(August, 2006)
Model ID: MacPro1,1
2.0GHz, 2.66GHz, 3.0GHz
PowerMac G5
Power Mac G5 (Late 2005)
(October, 2005)
Model ID: PowerMac11,2
2.0GHz, 2.3GHz, dual 2.5GHz
PC Desktop
PC Desktops
Compatible with Intel / AMD Process based PCs capable with the specifications listed above. Memory complies with JEDEC Specifications, document JESD79-3B.

Includes

Included Items
  • DP FireWire 800 3-Port PCIe
  • Spare low-profile bracket
  • "Y" split power cable
  • Driver CD
  • User's Manual
SIIG DP 3-Port FireWire 800 PCIe Host Adapter Mfr P/N: NN-E38012-S3 OWC SKU: SIINNE38012S3 Two External FW800 & One FW400 Ports for the Power Macintosh G5 "Dual Core" and "Quad Core", Mac Pro Systems. SIIG Lifetime Limited Warranty Ships: Same Day
Supply Limited: 1 available
Only $119.95OWC Price $54.99
Add to CartSIIG NN-E38012-S3 In Stock, Click to Buy Now
