Small Tree

P2E10G-1-T

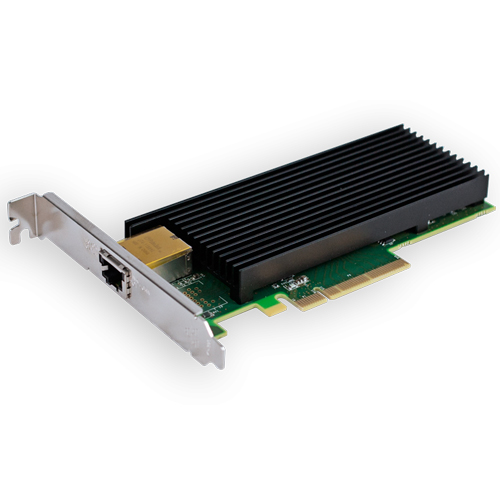

Single Port Intel X540 based PCI Express 10Gb Ethernet Network Adapter

Mac / PCIe
Add a 10Gb Ethernet Network Adapter to your Mac System
Immediate high performance
The Small Tree Intel-based P2E10G-1-T server card allows you to connect your Mac systems to 10 Gigabit Ethernet capable switches and storage devices. The P2E10G-1-T card will provide an immediate performance increase on large transfers, especially when using jumbo frames. These cards are the ideal solution for implementing mission-critical high-powered networking applications and utilizing multiple network segment environments within high performance servers.
Low latency and load balancing
The P2E10G-1-T is the Industry's first integrated MAC PHY, reducing cost and power. It allows for MSI-X support minimizing the overhead of interrupts and allows load balancing of interrupt handling between different cores/CPUs. Based on the sensitivity of the incoming data, the adapter can bypass the automatic moderation of time intervals between the interrupts providing low latency.
Low Processor usage
With Tx/Rx IP, 5CTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities, the P2E10G-1-T has increased throughput and lower processor usage. Checksum and segmentation capability are extended to new standard packet types. It also offers VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags. This allows the P2E10G-1-T card the ability to create multiple VLAN segments.
Widespread deployment
Small Tree's P2E10G-1-T enables each PCI Express slot to operate without interfering or competing with other ports. With RJ45 connections over CAT-6a cabling, it ensures compatibility with cable lengths up to 100 meters. The
P2E10G-1-T card also facilitates higher bandwidth and throughput from standard and low-profile PCIe slots and servers. Offering support for most Network Operating Systems (NOS), it enables widespread deployment to suit your needs.

Product Specifications:

Small Tree Part Number

  • P2E10G-1-T

Interface

  • RJ-45 Copper

Cabling

  • Cat6 or better

Advanced packet filtering (per port)

  • 16 exact-matched packets (unicast or multicast)
  • 4096-bit hash filter for multicast frames
  • Promiscuous (unicast and multicast) transfer mode support
  • Optional filtering of invalid frame

Adapter Fault Tolerance (AFT)

  • Supported

Switch Fault Tolerance (SFT)

  • Supported

Adaptive Load Balancing (ALB)

  • Supported

Virtual Machine Load Balancing (VMLB)

  • Supported

Teaming support

  • Supported

OS Supported

  • Mac OS X 10.7.5 or later

IEEE 802.3ad4 (link aggregation control protocol)

  • Supported

PCIe Hot Plug/Active

  • Supported

IEEE 802.1Q VLANs

  • Supported

IEEE 802.3 2005 flow control support

  • Supported

Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6)

  • Supported

IEEE 802.1p

  • Supported

TCP segmentation/large send offload

  • Supported

MSI-X supports Multiple Independent Queues

  • Supported

Data rate supported per port

  • 100 Mbps, 1Gbps, 10Gbps

Bus type

  • PCI Express 2.1 (5.0 GT/s)

Bus width

  • x8 lane PCI Express, operable in x8 and x16 slots

Bus speed (x8, encoded rate)

  • 20 Gbps uni-directional
  • 40 Gbps bi-directional

LED Indicators

  • LINK (solid)
  • ACTIVITY (blinking)

Interrupt levels

  • INTA, MSI, MSI-X

Hardware certifications

  • FCC B, UL, CE, VCCI, BSMI, CTICK, KCC

Operating temperature

  • 0° - 55° C (32° - 131° F)

Storage humidity

  • 90% non-condensing relative humidity at 35° C

Dimensions

  • 6.0" x 2.71" (152.4 x 68.91 mm)

Warranty

Manufacturer provided specifications for Small Tree p/n P2E10G-1-T UPC#: 181168000504
This product is compatible with... Learn how to find your Mac's model ID
Mac Pro
Mac Pro 12-Core (Mid 2012)
(June, 2010)
Model ID: MacPro5,1
2.4GHz, 2.66GHz, 3.06GHz
Mac Pro
Mac Pro 6-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.2GHz
Mac Pro
Mac Pro 12-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.66GHz, 2.93GHz
Mac Pro
Mac Pro 8-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.4GHz
Mac Pro
Mac Pro 6-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.8GHz, 3.2GHz
Mac Pro
Mac Pro 8-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.26GHz, 2.66GHz, 2.93GHz
Mac Pro
Mac Pro 4-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.66GHz, 2.93GHz, 3.33GHz
Mac Pro
Mac Pro 8-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz, 3.0GHz, 3.2GHz
Mac Pro
Mac Pro 4-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz
Mac Pro
Mac Pro 8-core (Early 2007)
(April, 2007)
Model ID: MacPro2,1
3.0GHz
Mac Pro
Mac Pro 4-core (Mid 2006)
(August, 2006)
Model ID: MacPro1,1
2.0GHz, 2.66GHz, 3.0GHz
PowerMac G5
Power Mac G5 (Late 2005)
(October, 2005)
Model ID: PowerMac11,2
2.0GHz, 2.3GHz, dual 2.5GHz
Xserve Intel
Xserve Quad-Core (Early 2009)
(April, 2009)
Model ID: Xserve3,1
2.26GHz
Xserve Intel
Xserve 8-Core (Early 2009)
(April, 2009)
Model ID: Xserve3,1
2.26GHz, 2.66GHz, 2.93GHz
Xserve Intel
Xserve (Late 2006)
(August, 2006)
Model ID: Xserve1,1
dual 2.0GHz, dual 2.66GHz, dual 3.0GHz
Xserve Intel
Xserve (Early 2008)
(January, 2008)
Model ID: Xserve2,1
2.8GHz, dual 2.8GHz, dual 3.0GHz

Includes

  • P2E10G-1-T PCIe 10Gb Ethernet Network card
  • Full-height bracket
  • Low-profile bracket
Small Tree P2E10G-1-T Single Port Intel X540 based PCI Express 10Gb Ethernet Network Adapter Mfr P/N: P2E10G-1-T MacSales.com SKU: SMTP2E10G1T Connect your Mac systems to 10 Gigabit Ethernet capable switches and storage devices. Small Tree 1 Year Limited Warranty Ships: Same Day only $595.00
