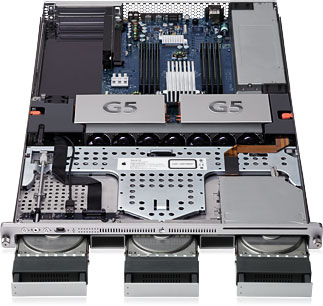

Xserve G5
Xserve is a designed-from-the-ground-up server-class workhorse
with the core features and capabilities you asked for.
The 1U (1.75-inch) Xserve comes with your choice of single 2.0GHz or dual 2.3GHz G5 processors running at speeds of up to 35 gigaflops, a 1.15GHz frontside bus per processor for up to 9.2GBps throughput each, two full-length 64-bit, PCI-X slots for up to 1GB/s throughput, and up to 8GB of 400MHz RAM with Error Correction Code (ECC). Plus three independent Serial ATA drive bays holding up to 1.2 TB of internal disk space using hot-plug Apple Drive Modules, dual onboard Gigabit Ethernet and the complete suite of robust, standards-based network services in Mac OS X Server. Or choose the compute-optimized cluster node version for your high performance computing needs. With the money you save, you can add more Xserve systems for a more powerful cluster.
| Hardware |
| Configurations |
Single Processor
M9743LL/A |
Dual Processor
M9745LL/A |
Cluster Node
M9742LL/A |
| Processor |
Single 2.0GHz PowerPC G5 |
Dual 2.3GHz PowerPC G5 |
| Frontside bus |
1GHz |
1.15GHz per processor |
| On-chip L2 cache |
512K per processor |
| ECC memory |
1GB, 8GB Maximum |
512MB, 8GB Maximum |
| Hot-plug storage (1) |
One 80GB Serial ATA Apple Drive Module; support for up to 1.2TB (2) in three drive bays |
One drive bay with 80GB Serial ATA Apple Drive Module |
| Hardware RAID |
Optional |
N/A |
| Optical drive |
Slot-loading Combo (DVD-ROM/CD-RW) or optional SuperDrive(DVD-R/CD-RW) |
N/A |
| I/O connectivity |
Two built-in Gigabit Ethernet interfaces (10/100/1000 BASE-T RJ-45); two FireWire 800, one FireWire 400, two USB 2.0, one DB-9 (RS-232) serial port |
| PCI slots |
Two full-length 64-bit PCI-X slots; supports 1 card at 133MHz or 2 at 100MHz |
| PCI expansion options (5) |
- Apple Fibre Channel PCI-X card (for connecting to Xserve RAID)
- Hardware RAID PCI card
- Gigabit Ethernet PCI-X card
- Dual channel 320 SCSI PCI-X card
- PCI video card with VGA connector
|
| Service and Support |
90 days of free telephone support and one-year limited warranty, optional AppleCare Support plans are available. |
| Also included |
Mounting screws with M5 and 10/32-inch threads; caged nuts; cable management arm for four-post racks; agency-approved 12-foot power cable |
| |
| Software |
| Configurations |
Single Processor
M9743LL/A |
Dual Processor
M9745LL/A |
Cluster Node
M9742LL/A |
| Mac OS X Server 10.3 |
Unlimited-Client Edition |
10-Client Edition |
| Included services |
- File and printer sharing: Macintosh (AFP, PAP), Windows (SMB/CIFS), UNIX and Linux (NFS, LPR/LPD), Internet (FTP, WebDAV)
- Directory services: Open Directory (OpenLDAP, Kerberos, SASL), NT Domain Controller (Samba 3)
- Web technologies: Apache web server, JBoss application server (EJB), Apache Tomcat (JSPs, Servlets), MySQL
- Media streaming: QuickTime Streaming Server (MPEG-4, MP3, AAC, RTP/RTSP), QuickTime Broadcaster
- Mail services: Postfix (SMTP), Cyrus (IMPAP, POP); webmail (SquirrelMail); mailing lists (Mailman)
- Network and security: DNS, DHCP, NAT, FireWall (IPFW), VPN server (L2TP, PPTP)
- System imaging: NetBoot, Network Install
- Management tools: Server Monitor (for Xserve hardware monitoring), Server Admin, Workgroup Manager, Secure Shell (SSH2), SNMPv3
|
| |
| Physical Specifications |
| Configurations |
Single Processor
M9743LL/A |
Dual Processor
M9745LL/A |
Cluster Node
M9742LL/A |
| Rack support |
- Fits EIA-310-D-compliant, industry-standard 19-inch-wide racks, including four-post racks (24 inches, 26 inches, and from 29 to 36 inches deep) and two-post telco racks (center-mount brackets included)
- Cable management arm for four-post rack
- Front-to-back cooling for rack enclosure
|
| Electrical and environmental requirements |
- Line voltage: universal input (90V to 264V AC), power factor corrected
- Maximum input current: 4A (90V to 132V) or 2A (180V to 264V)
- Frequency: 47Hz to 63Hz, single phase
- Output power: 400W
- Operating temperature: 50° to 95° F (10° to 35° C)
- Storage temperature: -40° to 116° F (-40° to 47° C)
- Maximum altitude: 10,000 feet
- FCC Class A approved
|
| Size and weight |
- 1.73 inches (4.4 cm) high by 17.6 inches (44.7 cm) wide by 28 inches (71.1 cm) deep
- 33 pounds (15.1 kg); 37 pounds (16.6 kg) with three Apple Drive Modules
|
(1) For hard drive capacity measurements, 1GB = 1 billion bytes; actual formatted capacity less.
(2) Maximum capacity of 1.2TB achieved through use of three 400GB Apple Drive Modules.
(3) Actual rates will vary.
(4) Weight varies by configuration and manufacturing process.
(5) PCI expansion options not available for Xserve G5 Cluster Node Build-To-Order.
Product specifications are subject to change without notice.
|
