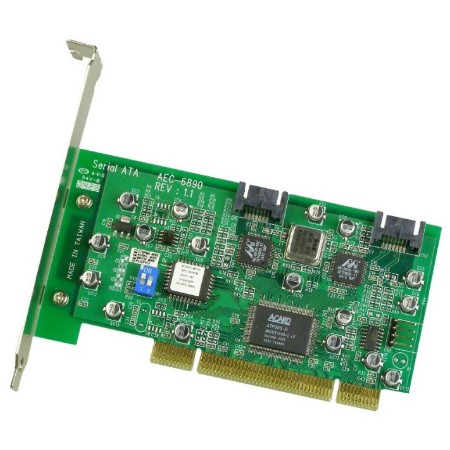

AEC-6890M
2-Channel SATA RAID Adapter for Mac

Besides its high transfer rate of 150MB/s, the AEC-6890M supports RAID 0 and RAID 1 modes and supports high-capacity hard drives exceeding 137GB.

Its fast interface for data transfer and backup makes the AEC-6890M a choice for Macintosh workstations and servers that will meet your storage and data protection needs.

• PCI-to-SATA RAID controller
  • Supports true Hardware RAID 1 (Mirrored)
    and RAID 0 (Striped)
  • Capable of booting from both Single-Drive
    and RAID volumes
• Compliant to SATA 1.0 specifications
• Two independent SATA channels
• 32-bit/33MHz (PCI 2.2 compliant)

Features

• True Mac OS X support
• Data I/O Mode: 32-bit PCI Bus Master
• Data transfer rate up to 150MB/s
• Two 7-pin SATA internal connectors
• Supports IDE hard drives up to Ultra ATA133
  (when used in combination with an IDE-to-SATA converter)
• Updatable firmware
• Coexists with on-board SATA controller

OS Compatibility

• Mac OS X 10.x
• Mac OS 9.x

SATA Bus

• Dual independent channel of SATA bus
• Data transfer rate up to 150MB/s per channel

PCI Bus

• 32-bit PCI Bus Master for 133MB/s data transfers
• Supports Scatter / Gather function
• Automatic FIFO threshold selection
• Low command overhead
• True PCI Plug and Play
