640MB/s Ultra320 SCSI Host Adapter
RAID Ready | Up to 30 Ultra320 SCSI devices

This card adds:
- Two Internal Ultra320 SCSI 68-pin Ports
- Two External VHDCI SCSI 68-pin Ports
Requires:
- Available PCIe 2.0 x4 lane Slot
See Specifiactions below for system and/or OS compatibility information |

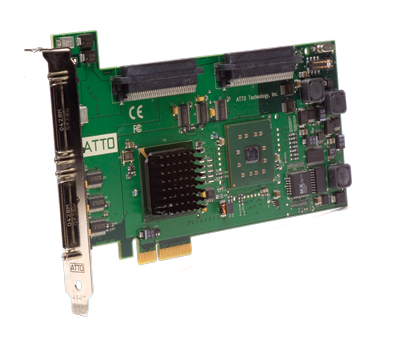

The ATTO ExpressPCI UL5D Ultra320 SCSI host adapter offers high-performance provided by Ultra320 and ATTO-designed performance enhancing technologies. The UL5D SCSI host adapter aids users dealing with the reality of today's data-intensive environments, including video-editing applications requiring support for multiple streams of 10-bit high-definitionvideo. |
OWC Note: This is a special-order item - no returns allowed except for DOA replacement within 15 days of shipment delivery. |
|
Highlights
- Ultra320 SCSI
- Up to 320 MB/sec. per channel data-transfer rates
- Dual independent SCSI channels
- x4 PCI Express host connectivity
- Exclusive Advanced Data Streaming (ADS™) Technology
- Driver support for Windows®, Mac® OS X, Novell Netware®,and Linux
- Supports up to 30 SCSI bus IDs
- Up to 12 meter cable lengths
- Automatic termination
- Flash ROM for easy field upgrades
- Plug and play compatible
- Includes ATTO ExpressPro-Tools™ & ATTO Configuration Tool formatting & utility software
|
The ExpressPCI UL5D LP offers support for the next generation of PCI bus technology with a 4-lane PCI Express (PCIe) interconnect. By leveraging the high-performance of both PCI Express and Ultra320 SCSI, the UL5D LP is an ideal fit for data-intensive environments, including video-editing applications requiring support for multiple streams of 10-bit high definition video. The combination of highperformance and a low-profile form factor provides an ideal solution for space constrained enterprise servers, as well as high-end workstations running high-volume, mission critical applications such as messaging and databases.
The ExpressPCI UL5D is the industry's first choice for high-speed SCSI host adapters. By offering support for Ultra320 SCSI and PCI Express, in addition to ATTO-designed technologies such as ADS, the ExpressPCI UL5D offers both the performance and feature set necessary for data-intensive applications. |
Blazing Fast Performance
- Maximize data throughput with dual channel connectivity aggregating performance across multiple SCSI ports
- Leveraging the latest in SCSI storage connectivity, the UL5D delivers up to 640 MB/sec. data throughput, making it twice as fast as Ultra160 SCSI.
|
Smooth Data Streaming
- Maintain accessibility to mission-critical data by transparently redirecting data requests through alternate channels.
- Alleviate data transfer bottlenecks and move data more efficiently while managing latency with ATTO's exclusive ADS™ technology.
|
One Click Installation
- Save time with factory preset configuration for plug and play operation.
- Simplify installation, management and monitoring with a multi-platform Configuration Utility featuring an intuitive GUI.
|
|
|
|
| Specifications |
| Ports |
|
| Connections |
- External - up to 30 Devices (15 per Channel)
- Internal - up to 30 Devices (15 per Channel)
|
| Bus Specifications |
- PCI-Express 2.0 x4
- Supports PCI Express Base Spec 1.0a
- Supports PCI Express CEM Spec 1.0a
- PCI Express to PCI/PCI-X Bridge spec 1.0
|
| Form Factor |
|
| RAID |
- RAID 0 support with ATTO Express Power Center or ExpressStripe RAID software utilities
|
| Operating System Support |
- Windows® Server 2003, 2008, XP, Vista
- Mac® OS X (v10.4.x & 10.5.x)
32-bit and 64-bit 'Snow Leopard' 10.6 Compatible - Driver Link
- Linux (Fedora, Red Hat and SuSE)
- Novell Netware® v6.5
|
| External Connectivity |
- x2 VHDCI SCSI 68-pin Ports
|
| Internal Connectivity |
- x2 Ultra320 SCSI 68-pin Ports
|
| Operating Voltage |
- 1.61 typical/ 2.03 max. Amps @ + 3.3 VDC
0.65 typical/ 1.46 Amps @ + 12.0 VDC
|
| MTBF |
|
| Alarm/Buzzer |
|
| Activity/Failure LED |
|
| Agency Approvals & Compliance |
- FCC Rules, Part 15 Sub-Part B, Class A
- CE Mark: CISPR 22 / EN 55022, Class A
- ICES-003
- RoHS
|
| Warranty |
|
| Physical |
|
| Dimensions |
- Length 7.5"
Height 4.376"
|
| Weight |
|
| Operating Temperature (Hardware Environment) |
|
| Operating Temperature (Storage Environment) |
|
| Relative Humidity |
|
|
| Click here to get your Model Identifier number |
| This is compatible with the following Mac Pro models: |
 |
Machines Have Model Identifier MacPro5,1
Mac Pro (Mid 2010 8-Core, 2.4GHz)
(July, 2010)
|
 |
|
Machines Have Model Identifier MacPro5,1
Mac Pro (Mid 2010 Quad-Core, 2.8GHz, 3.2GHz)
(July, 2010)
|
|
|
Machines Have Model Identifier MacPro4,1
Mac Pro (Early 2009 8-Core, 2.26GHz, 2.66GHz, 2.93GHz)
(March, 2009)
|
|
|
Machines Have Model Identifier MacPro4,1
Mac Pro (Early 2009 Quad-Core, 2.66GHz, 2.93GHz, 3.33GHz)
(March, 2009)
|
|
|
Machines Have Model Identifier MacPro3,1
Mac Pro (Early 2008, 2.8GHz, 3.0GHz, 3.2GHz)
(January, 2008)
|
|
|
Machines Have Model Identifier MacPro2,1
Mac Pro (8-core, 3.0GHz)
(April, 2007)
|
|
|
Machines Have Model Identifier MacPro1,1
Mac Pro (Original, 2.0GHz, 2.66GHz, 3.0GHz)
(August, 2006)
|
|
 |
PC running Windows, Linux or FreeBSD
and available PCI-Express x8 lane or better slot
|
|
|
|
