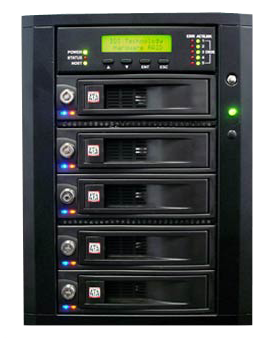

Five Bay Trayless "Quad Interface" Hardware RAID Tower
FireWire800/400, USB 2.0, and eSATA interfaces
Supports RAID 0, 1, 10, 5, 50, CLONE and JBOD

|
Now you can have a Massive, Protected, Quad Interface, RAID system
with no tech skills required! |
 |
With the T5_R5-eSUF, a 10TB (5x 2.0TB) protected, highly reliable, fast, hot-pluggable, massive storage in a quiet tower can be realized, and it is very easy to use. Simply plug it in via USB, FireWire or an eSATA host port, there is no driver or additonal software needed.
T5_R5-eSUF provides an unparalleled level of highly reliable data protection for users who demand high transfer rate performance for a fraction of the cost.
Features:
- Quiet, external five bay RAID 5 capable SATA enclosure with Quad host interface:
USB2.0, FireWire400, FireWire 800 and eSATA.
- Hot-swappable.
- Very fast: RAID 5 sustained transfered rate up to 300MB/sec.
- RaidGUI and LCD display for easy control and management of your RAID.
- Staggered drive spin up - Hard Disk (Activity / Failed) LED chassis function.
- Email notifications of system status.
- Automatically detects new drives to rebuild degraded RAID.
- S.M.A.R.T array monitoring for hard drive status and reliability.
|
|
|
|

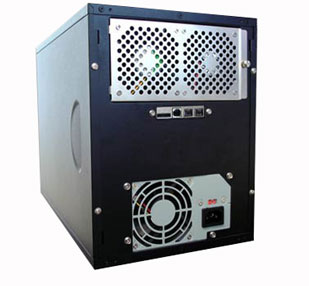

| Rear View: |

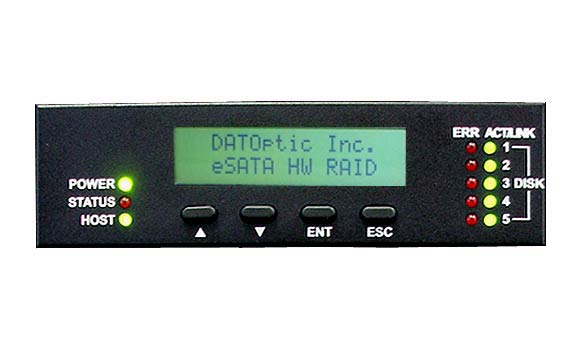

Display Close-up view: |
 |
 |
|
|

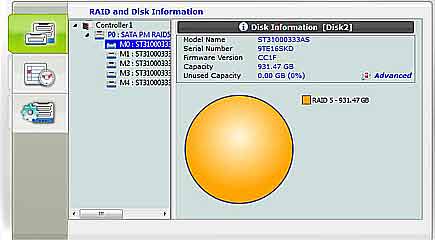

Web accessible RAID support.
RAID set up and management can be accessed via Web GUI. This method allows both local and remote control.
Configure or monitor your RAID with ease.
Setup your unit to operate in RAID 0, 1, 10, 5, 50, CLONE or JBOD. RAID 5 suggested for best speeds with reliable data protection:
RAID5 - As storage capacity requirements are getting larger, data storage without drive fault tolerance can lead to potential of loss data, down time and lost revenue. As the T5_R5-eSUF is RAID 5 capable, if a single hard drive fails a new HDD can be inserted and the built-in RAID 5 will be able to reconstruct the failed drive so your data stays intact.
|

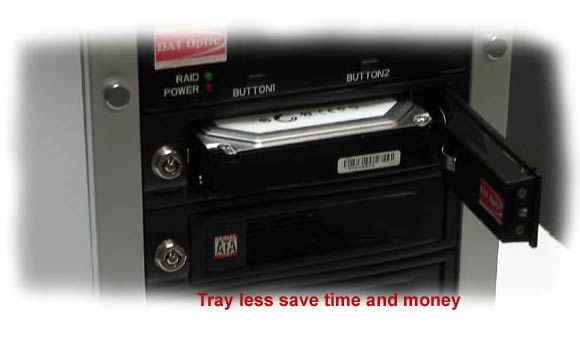

Tool-less tray design.
With datOptic's paented drive connector, you can insert and remove hard drives just like a compact disc or floppy disk being used.
Exchange your hard drives on the fly without having to shut down and disassemble the enclosure. Simply pull the unlocked door open and the drive automatically ejects.
|

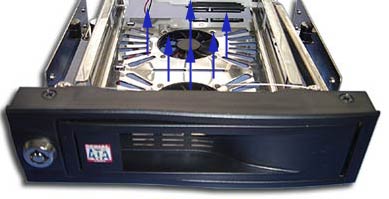

DirectAir™
 The DirectAir™ system is designed to force air directly into hard drive keep the temperature as close to ambient as possible, often resulting in close to 100% heat dissipation. By keeping the hard drives cool, you gain increased stability, prolong your individual hard drive's life, and increase overall efficiency.
|

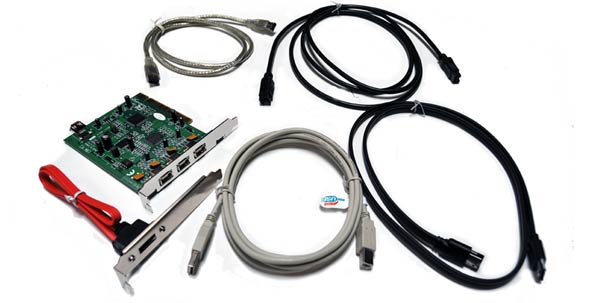

| This DAT optic 5-bay SATA Enclosure includes: |
- 1x eFUT4_R
- 1x each of eSATA, USB and FireWire cable
- 1x eSATA PCI bracket adapter
- 1x 1394 PCI host adapter
- 1x AC power cables
- 1x Set of tray lock keys
- 1x Manual, drivers and Raid Utility CD
|
 |
|
| Product Specifications: |
| Support RAID: |
RAID 0, 1, 10, 5, 50, CLONE and JBOD |
| Drive Interface: |
Supports up to five 3.5" SATA (Serial ATA) hard drives. |
| Physical Mount Space : |
Quiet Tower with 5x trayless SATA drive |
| LED Display (tray): |
- Green - Power on indicator
- Orange - Busy (HDD Accessing) indicator
|
| LED Display (Chassis): |
- FAN normal – Green; fail – Red (too slow rpm or stop)
- TEMP normal – Green; over 55°C – Red
|
| Max Data Transfer Rate: |
- eSATA - 3.0 Gbit/s (or 300 MB/sec)
- FireWire 800 - 800Mbps (or 100MB/sec)
- FireWire 400 - 400Mbps (or 50MB/sec)
- USB 2.0 - 480Mbps (or 60MB/sec)
- USB 1.1 - 12Mbps (or 1.5MB/sec)
|
Macintosh System
Requirements: |
- Mac OS 8.6 to 9.2.2, Mac OS X 10.0.x or later and an available USB 1.1 or FireWire 400 port.
- Mac OS X 10.2.8 or later and an available USB2.0/1.1, FireWire 800/400 port, or eSATA port.
|
Windows System
Requirements: |
- Windows 98SE or later and an available FireWire 400 or USB 2.0/1.1 port.
- Windows 2000 or later and an available USB 2.0/1.1, FireWire 800/400, or eSATA port.
|
| Cooling: |
Four 75 x 75 x 28 mm removable blowers |
| Operating Temperature: |
0° C to 50° C |
| Operating Humidity: |
5% to 95% non-condensing |
| RoHS Compliant: |
Yes |
| Power Supply: |
400W ATX PSU Quiet with Thermal Fan control -
Input: 115 – 230 VAC 50- 60 Hz - switch-able |
| External Case Dimensions: |
34 x 47 x 63 (cm)
8.75 x 12.0 x 16.00 (in) |
| Weight: |
Gross: 9.6kg
Net: 7.8Kg |
| Warranty: |
1 Year Manufacturer Warranty |
|
| Benchmark Results |

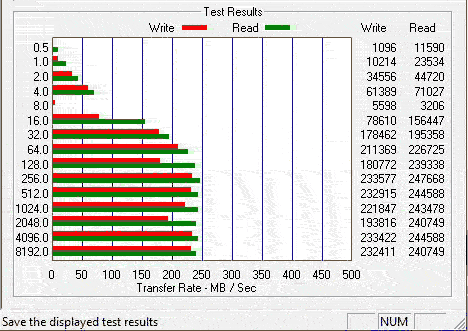

Machine: Window Vista - Duo Core 2.53GHz, 2.0GB DDR2, Vista 32
T5_R5-eSUF + eSATA_PCIe8 (JBOD mode)
5x SATA II 7200.10 1.00GB HDD (Seagate AS) configured as RAID 5 |

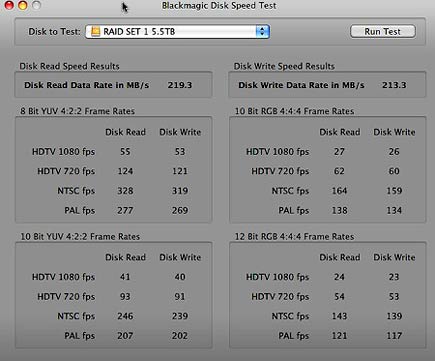

Machine: Apple Mac Pro
T5_R5-eSUF + eSATA_PCIe8 (JBOD mode)
5x SATA II 7200.10 1.5GB HDD (Seagate AS) configured as RAID 5 |
Unlike other RAID systems on the market,the T5_R5-eSUF fully supports S.M.A.R.T.
(Self-Monitoring, Analysis, and Reporting Technology).
Simply use the LCD display to obtain the data or RAID GUI utility. |
Machine: Apple Mac Pro
T5_R5-eSUF + eSATA_PCIe8 (JBOD mode)
5x SATA II 7200.10 1.00GB HDD (Seagate AS) configured as RAID 5 |
|
|
