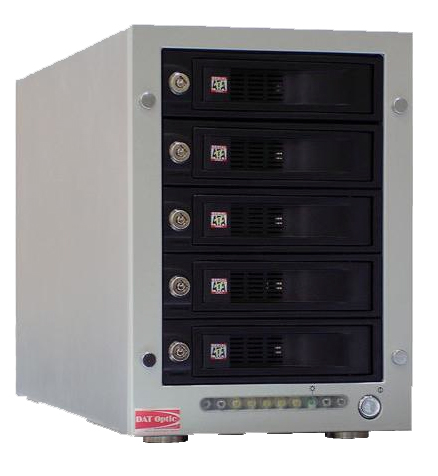

Five Bay Trayless FireWire/USB Hardware RAID Tower
FireWire800/400 and USB 2.0 interfaces
Supports JBOD, clone & RAID 0, 1, 3, 5, and 10

|
Now you can have a Massive, Protected, RAID system
with no tech skills required! |
 |
The DAT Optic UF8-R5J is a true stand-alone five bay enclosure that allows you to configure self-installed HDD(s) as JBOD, RAID 5, 3, 10, 0, or 1 with the flip of the a switch via FireWire or USB2.0. A perfect back-up storage solution for Mac or Windows platforms
When UF8-R5J configures as RAID, then it eliminates host CPU loading due to embedded RISC storage processor.
Features:
- Five SATA tray-less bay hardware raid5 with Oxford Semi Chip set OXUFS936QE
- Quad interface: USB2.0/FireWire 400/800/eSATA without drivers required
- Up 15.0TB storage space - 3.0TB HDD support
- Support RAID 0, 1, 5, and 10 with encryption (option) and independent from OS
- Hard Disk (Activity / Failed) LED indication and LCD control panel
- BIOS Booting (INT13) to RAID array
- Automatically detects new drive to rebuild a degraded RAID
- S.M.A.R.T array monitoring for hard drive status and reliability
- 64bit LBA for RAID arrays greater than 2TB
- Web browser-base software (Web GUI)
- Compatible with Time Machine™
- RoHS Compliant
|
|
|
|

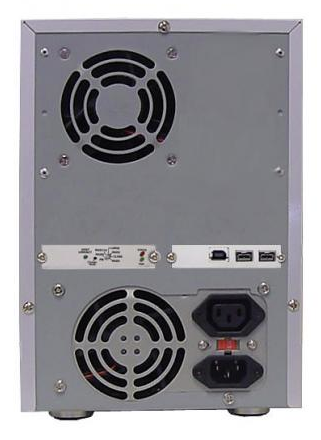

| Rear View: |
Tray view: |
 |

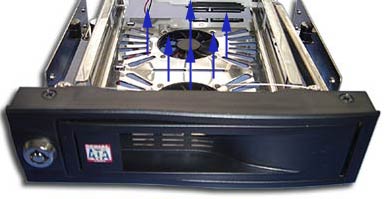

DirectAir™
The DirectAir™ system is designed to force air directly into hard drive keep the temperature as close to ambient as possible, often resulting in close to 100% heat dissipation. By keeping the hard drives cool, you gain increased stability, prolong your individual hard drive's life, and increase overall efficiency.
|
|
|

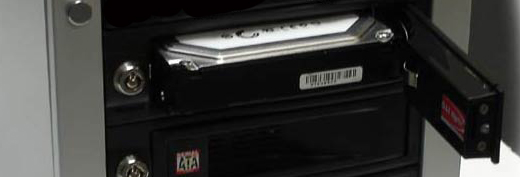

 Tool-less tray design.
With datOptic's patented drive connector, you can insert and remove hard drives just like a compact disc or floppy disk being used.
Exchange your hard drives on the fly without having to shut down and disassemble the enclosure. Simply pull the unlocked door open and the drive automatically ejects.
|
| |
| Product Specifications: |
| Support RAID: |
JBOD and RAID 0, 1, 10, 5, CLONE function Raid Engine provide by JMB393 chipset |
| Drive Interface: |
Up to five (5) SATA I/II/III drives - support 3.0TB HDD |
| Physical Mount Space : |
Quiet Tower with 5x trayless SATA drive |
| LED Display (tray): |
- Green - Power on indicator
- Blue - Busy (HDD Accessing) indicator
|
| LED Display (Chassis): |
- FAN normal – Green; fail – Red (too slow rpm or stop)
- TEMP normal – Green; over 55°C – Red
|
| Max Data Transfer Rate: |
- FireWire 800/400 - @ 800Mbps/400Mbps
- USB2.0 - @480Mbps
|
Macintosh System
Requirements: |
- Mac OS 8.6 to 9.2.2, Mac OS X 10.0.x or later and an available USB 1.1 or FireWire 400 port.
- Mac OS X 10.2.8 or later and an available USB2.0/1.1 or FireWire 800/400 port
|
Windows System
Requirements: |
- Windows 98SE or later and an available FireWire 400 or USB 2.0/1.1 port.
- Windows 2000 or later and an available USB 2.0/1.1 or FireWire 800/400.
|
| Cooling: |
- Direct Air scheme with Temperature Sensing allowing 24/7 operation
|
| Operating Temperature: |
0° C to 50° C |
| Operating Humidity: |
5% to 95% non-condensing |
| Connectors: |
- Universal AC Plug x2
- Power connector x1
- On/Off switch x1
- 2x Firewire800
- 1x USB2.0
|
| Power Supply: |
115-230VAC 50/60Hz; switch-able 400W Output Power |
| External Case Dimensions: |
(H X W X D)30.5cm x 19.0 cm x 41.9cm (12" x 7.5" x 16.5") |
| Weight: |
16.0lbs - 7.25Kg |
| Package Contents |
- 1x UF8-R5J
- 1x USB2.0 high speed cable
- 1x FireWire 400 to 800 cable
- 1x FireWire 800 to 800 cable
- 1x 1394PCI - FireWire PCI card
- 1x AC power cables
- 1x Set of tray lock keys
- 1x Manual, drivers and Raid Utility CD
|
| Warranty: |
1 Year Manufacturer Warranty |
|
| |
|
