Description: Ships: Price:
Edimax nMax Wireless 802.11n USB 2.0/1.1 Adapter for any Apple Mac or Windows PC with an available USB Port. Fully backwards compatible for 802.11g and 802.11b networks. New with 2 Year Edimax Warranty. (EDMEW7718UN) Same Day $48.99
Add to Your Basket:
Edimax

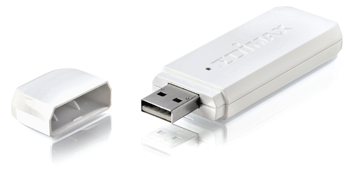

Edimax EW-7718Un
nMax Wireless 802.11n Draft 2.0 USB Adapter


EW-7718Un complies with 802.11n draft 2.0, the next generation wireless standard. With the advanced MIMO technology, it can support data transmission rates up to 6 times faster (up to 300Mbps) and coverage up to 3 times further than with IEEE 802.11b/g devices. The EW-7718Un's stable wireless connection and high bandwidth enable you to enjoy network applications without any interruptions.

EW-7718Un supports the WPS configuration function. This function provides easy procedures to set up wireless security. Use the included Edimax configuration tool to setup the WPS function to securely connect to your network.



Features
  • Complies with 2.4GHz IEEE802.11n Draft 2.0 and IEEE802.11g/b standards
  • Supports advanced 2T2R MIMO technology with data rate up to 300Mbps
  • Supports Wi-Fi Protected Setup (WPS) configuration function
  • Supports 64/128-bit WEP encryption and WPA-PSK, WPA2-PSK encryption
  • Support Windows XP/XP64/Vista/Vista64/2000/7, and Mac OS X 10.3 or later
Wireless Setup Diagram

Need Additional Items for
Your Wireless Setup?

Routers (Send out your wireless signal):

BR-6574n Wireless IEEE802.11 b/g/n Gigabit Broadband Router
BR-6324nL Wireless IEEE802.11 b/g Broadband Router

Access Points (Receive your signal and send it further):

EW-7416APn Wireless 802.11n Access Point

Receivers (Add to computer to receive the wireless signal):

EW-7708Pn nMax Wireless 802.11n Draft 2.0 32-bit Cardbus
EW-7728In nMax Wireless 802.11n Draft 2.0 PCI Card
EW-7718Un nMax Wireless 802.11n Draft 2.0 USB Adapter
EW-7711UAn Wireless nLITE 3dBi High Gain USB Adapter
EW-7727In Wireless 802.11n PCI Adapter



Product Specifications:
Standard: IEEE 802.11b/802.11g/802.11n Draft 2.0
Bus Type: USB 2.0 Type A
Frequency Band: 2.4000~2.4835GHz (Industrial Scientific Medical Band)
Data Rate: 11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, 32 with Half Guard Interval Support (up to 72/144Mbps)
11n (40MHz): MCS0-15, 32 with Half Guard Interval Support (up to 150/300Mbps)
Security: WEP 64/128, WPA, WPA2
Cisco CCX V1.0, V2.0 & V3.0 Compliance
Antenna: 2 x 2dBi chip Antennas
Drivers: Windows 2000/XP/XP64/2003/Vista/7 & Mac OS X 10.3 or later
LEDs: Link/Activity
Dimensions: 87mm(L) x 27mm(W) x 10mm(H)
Temperature: 32~131°F (0 ~55°C)
Humidity: Max. 95% (Non Condensing)
Certification: FCC , CE
Warranty: 2 Year Edimax Warranty
Downloads
Quick Start Guide Manual Driver
