Edimax
300Mbps Wireless 802.11a/b/g/n
Dual-Band USB Adapter
Mac | PC | IEEE 802.11a/b/g/n
Enjoying high-speed, dual-band (2.4GHz & 5GHz) wireless connectivity is as simple as plugging the Edimax EW-7722UnD into your computer's USB port. This wireless dual-band USB adapter is a quick and easy way to add wireless connectivity to or upgrade the wireless connectivity of your desktop or laptop computer.
Dual-Band Wireless Connectivity (2.4GHz & 5GHz)
Designed in compliance with 802.11a/b/g/n standards, the Edimax EW-7722UnD is able to connect to devices that use the 2.4GHz band as well as devices that use the 5GHz band. With dual-band capability, the EW-7722UnD gives you full flexibility in terms of device interoperability.
Wireless 802.11n Standard (data rates up to 300Mbps)
The latest 802.11n technology is built into the EW-7722UnD to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7722UnD complies with wireless 802.11b/g/n standards and can reach data transmission rates of up to 300Mbps when connected to wireless 802.11n devices. It provides faster and more reliable wireless connections than standard 802.11b/g wireless networks.
Features a Hardware WPS (Wi-Fi Protected Setup) Button
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. If the wireless device with which you wish to connect supports WPS, the Edimax EW-7722UnD will automatically set up the wireless connection with a robust WPA data encryption. The Edimax EW-7722UnD wireless USB adapter supports both hardware (push-button) WPS and software WPS configuration.
Features Multi-Language EZmax Setup Wizard*
The Edimax EW-7722UnD includes an EZmax setup wizard-an application available in 16 languages that helps you to quickly connect the adapter to your wireless network.

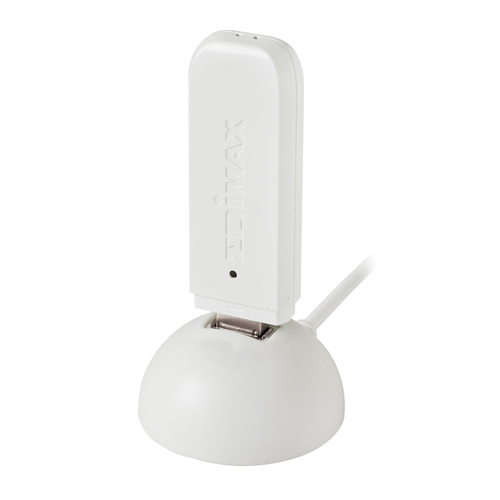

USB Cradle for Enhanced Wireless Performance
The EW-7722UnD comes with a free USB cradle with a 1-meter cable for improved wireless performance. When using the EW-7722UnD with the USB cradle, it provides better wireless performance at no extra cost.
Features
- Supports dual-band wireless connectivity (2.4GHz & 5GHz)
- Includes multi-language EZmax setup wizard
- Supports 64/128-bit WEP, WPA, WPA2, WPS, and IEEE 802.1x encryptions
- Supports QoS-WMM
Product Specifications
Manufacturer Part Number
Hardware Interface
- 1 x USB 1.0/2.0 Type A
- Hardware WPS Button
- 2 x Printed Antenna
Standard
- 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
- 5GHz: IEEE 802.11a
Frequency Band
- 2.4000 - 2.4835GHz (subject to local regulations)
- 5.150 - 5.825GHz (subject to local regulations)
Driver Download
Data Rate
- 11a: 6/9/12/24/36/48/54Mbps
- 11b: 1/2/5.5/11Mbps
- 11g: 6/9/12/24/36/48/54Mbps
- 11n (20MHz): MCS0-15 (up to 144Mbps)
- 11n (40MHz): MCS0-15 (up to 300Mbps)
Security
- WEP 64/128-bit, WPA, WPA2, 802.1x
- Hardware and Software WPS Configuration
LED
System Requirements
- Windows 2000/XP/Vista/7
- OS X 10.6, 10.7, or 10.8
Installation Kit
- EZmax multi-language setup wizard
Humidity
Temperature
Output Power
- 11n (2.4GHz, 20/40MHz): 15dBm±1.5dBm
- 11n (5GHz, 20/40MHz): 12dBm±1.5dBm
- 11g: 12dBm±1dBm
- 11b: 17dBm±1dBm
- 11a (5GHz): 12dBm±1.5dBm
Dimensions
- 5.3" x 3.4" x 1.0" (13.4 x 8.8 x 2.6 cm)
Certifications
Warranty
Manufacturer provided specifications for Edimax p/n EW-7722UnD UPC#: 649659022799
Includes
- Wireless USB Adapter (1 pcs)
- USB Cable (1 pcs)
- Quick Installation Guide (1 pcs)
- CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide & User Manual) (1 pcs)
* The EZmax setup wizard only supports the Edimax wireless series.
