2 Port 3Gb/s eSATA PCI Host Adapter
Up to 2 SATA devices | Hot Swap Supported
This card adds:
- Two External eSATA 1.5Gb/s Ports (1 eSATA device per port)
Requires:
See Specifiactions below for system and/or OS compatibility information |

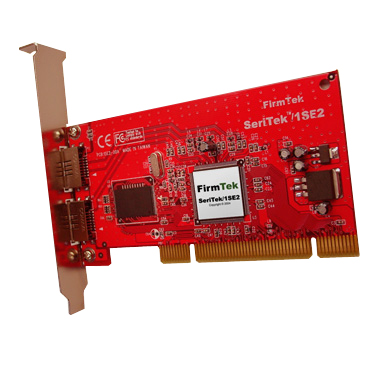

The SeriTek/1eSE2 Host Adapter extends Serial ATA's 1.5Gbits/sec performance to the outside of the computer chassis, enabling users to take advantage of external Serial ATA enclosures such as the SeriTek/1EN2. With the latest eSATA shielded connectors, the SeriTek/1eSE2 provides the high bandwidth necessary to meet the needs of performance-hungry applications while offering hot-swap flexibility similar to that of Universal Serial Bus (USB) and FireWire. |
 |
|
|
| Specifications |
| Ports |
- Two External SATA 1.5Gb/s Ports.
|
| Connections |
|
| Bus Specifications |
- 32-bit PCI bus version 2.2
|
| Form Factor |
|
| RAID Functionality |
- Native OS X RAID 0/1
- OS 9 RAID with 3rd party software
- Native Windows 2000/XP/2003 RAID
|
| Operating System Support |
- Mac OS 9.XX
- Mac OS X version 10.1.5 or later
- Windows 98/98SE/ME/NT/2000/XP/2003
|
| External Connectivity |
|
| Internal Connectivity |
|
| Drive Types Supported |
- Serial ATA hard drive
- Backward compatible with Ultra DMA 133/100/66 hard drives*
|
| Advanced Data Features |
- Fully compliant with Serial ATA 1.0a specification
- Bus Mastering off-loads data I/O handling from CPU
- Complete 32-bit CRC error checking, for all bits transmitted (command, data, and status), offers enhanced data protection for high-speed Serial ATA drives
- Dual independent data channels allows for separate device timings
- Automatically identifies and configures drive types*
- Automatically detects and supports devices utilizing many transfer modes including
- UltraDMA 6/5/43/2/1/0, PIO 4/3/2/1/0*
|
| Compliances |
- EN55022/1998, EN55024/1998 (European Community)
- FCC Part 15 Class B (US)
- RoHS Compliant
|
| Power Requirements |
|
| Notes |
* IDE to Serial ATA converter module required for Parallel ATA and Ultra ATA133/100/66 drives |
| Warranty |
|
| Physical |
|
| Temperature |
- Operating: +5°C to +55°C
- Non-Operating: -25°C to +70°C
|
| Relative humidity |
- Operating: 20% to 80%
- Non-Operating: 15% to 90%
|
| Dimensions |
- 120mm(L) x 1.6mm(W) x 64.4mm(H) (not including bracket)
|
| Weight |
|
|
| Click here to get your Model Identifier number |
| This is compatible with the following models: |
 |
Machines Have Model Identifier PowerMac7,3
Power Mac G5 (Early 2005, 2x 2.3GHz, 2x 2.7GHz)
(April, 2005)
|
 |
 |
Machines Have Model Identifier PowerMac7,2
Power Mac G5 (Early 2005)
(April, 2005)
|
 |
 |
Machines Have Model Identifier PowerMac9,1
Power Mac G5 (Late 2004)
(October, 2004)
|
 |
 |
Machines Have Model Identifier PowerMac7,3
Power Mac G5 (June 2004)
(June, 2004)
|
 |
 |
Machines Have Model Identifier PowerMac7,2
Power Mac G5 (1.6GHz, 1.8GHz, 2x 1.8GHz, 2x 2.0GHz)
(June, 2003)
|
 |
 |
Machines Have Model Identifier PowerMac3,6
Power Mac G4 (Mirrored Drive Doors 2003, 1.25GHz, 2x 1.25GHz)
(June, 2003)
|
 |
 |
Machines Have Model Identifier PowerMac3,6
Power Mac G4 (FW 800, 1.0GHz, 2x 1.25GHz, 2x 1.42GHz)
(January, 2003)
|
 |
 |
Machines Have Model Identifier PowerMac3,6
Power Mac G4 (Mirrored Drive Doors, 2x 867MHz, 2x 1.0GHz, 2x 1.25GHz)
(August, 2002)
|
 |
 |
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver 2002 ED, 867MHz)
(August, 2002)
|
|
 |
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver 2002, 733MHz, 800MHz, 933MHz, 2x 1.0GHz)
(January, 2002)
|
 |
 |
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver, 733MHz, 867MHz, 2x 800MHz)
(July, 2001)
|
 |
 |
Machines Have Model Identifier PowerMac3,4
Power Mac G4 (Digital Audio, 466MHz, 533MHz, 2x 533MHz, 667MHz, 733MHz)
(January, 2001)
|
 |
 |
Machines Have Model Identifier PowerMac3,3
Power Mac G4 (Gigabit Ethernet, 400GHz, 2x 450MHz, 2x 500GHz)
(July, 2000)
|
 |
 |
Machines Have Model Identifier PowerMac3,1
Power Mac G4 (AGP Graphics, 350MHz, 400MHz, 450GHz, 500GHz)
(September, 1999)
|
 |
 |
Machines Have Model Identifier PowerMac1,2
Power Mac G4 (PCI Graphics, 350MHz, 400MHz)
(August, 1999)
|
 |
 |
PC running Windows 98/98SE/ME/NT/2000/XP/2003
and available PCI expansion slot
|
|
|
|
