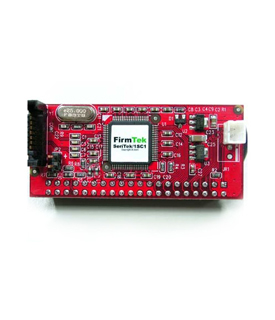

 SeriTek/1SC1
Parallel ATA to Serial Converter
The SeriTek/1SC1 is a Parallel ATA (PATA) to Serial ATA (SATA) converter. It allows you to utilize new SATA interface technologies with your current PATA drives. The SeriTek/1SC1 is especially engineered for tight-fitting Macintosh cases, and works with PC's too.
|
| Key Features and Benefits |
- Designed to be 100% compatible with Macintosh computers
- Dual-use capable; works with PC's as well
- Serial ATA (SATA) 1.0 compliant
- 48-bit LBA support for drive sizes larger than 137GB
- Supports UltraATA/UDMA 66/100/133 hard drives and most ATAPI Drives (ATAPI drives work with the SeriTek line of host adapters only)
- Macintosh and PC Plug and Play, no special drivers required
- Two Year Warranty
|
| Specifications |
- Transfer rate of up to 1.5Gbps or 150MB/s
- Includes standard female IDE 40-pin connector for connection to Parallel ATA or ATAPI drive
- Includes standard 7-pin Serial ATA data connector for connection to SeriTek or other host adapters
|
| System Requirements |
- One Parallel ATA or ATAPI drive with standard IDE connector
- One available Serial ATA port on SeriTek or other Serial ATA host adapter
- Macintosh Operation System: Mac OS 8.XX, 9.XX, OS X version 10.2 or later
- PC Operation System: DOS, Windows 95/98/ME/NT/2000/XP/2003, or Linux/FreeBSD
|
| Package Contents |
- SeriTek SATA to PATA Converter
- One Serial ATA Data Interface Cable, 60cm Length
- One power adapter/cable; powers both the SeriTek/1SC1 converter and the Parallel ATA/ATAPI device from just one system power port
- Installation guide
|
|
