2 Port 3Gb/s eSATA PCI Express Host Adapter
Up to 10 SATA devices | Port Multiplier Supported
This card adds:
- Two External eSATA 3Gb/s Ports (up to 5 eSATA devices each)
Requires:
- Available PCIe 1.0 x1 Lane Slot
See Specifiactions below for system and/or OS compatibility information |

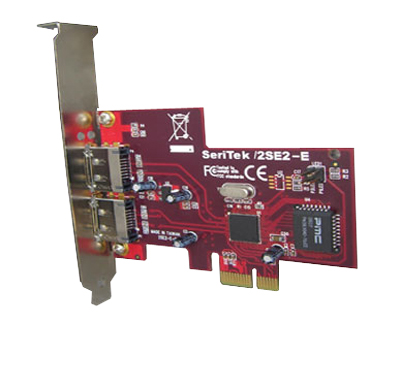

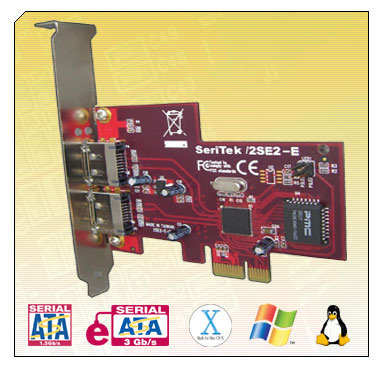

The SeriTek/2SE2-E is a Serial ATA host adapter fully compatible with the PCI Express 1.0 bus architecture found in Apple's Dual-Core G5 Macintosh, Mac Pro, and many PC computers. Offering two external SATA II ports at up to 3 gigabits per second, the card enables individual drives or RAID arrays to be fully utilized as high-performance storage on Dual-Core G5 systems.
With FirmTek's established hot-swap compatibility, users can easily move these drives or volumes from one system to another, providing maximum flexibility and security. The SeriTek/2SE2-E is designed to work with PCI Express equipped Dual-Core G5 and Mac Pro computers, as well as Windows, and Linux computers. |
 |
|
|
| Specifications |
| Ports |
- Two External SATA 3Gb/s Ports.
|
| Connections |
|
| Bus Specifications |
|
| Form Factor |
|
| RAID Functionality |
- Supports Disk Utility RAID 0, 1,and JBOD configurations
|
| Operating System Support |
- Mac OS X version 10.4.0 or later (10.4.6 or later is recommended)
- Windows 2000/XP/2003
- Linux
|
| External Connectivity |
|
| Internal Connectivity |
|
| Advanced Data Features |
- Two external ports with hot-swap capability
- Supports Sil-3726 based Port Mulitiplier (PM) enclosures
- Plug-and-Play ease of use, completely self-contained functionality, no driver installation necessary
- Boosts overall system performance with per-port data transfer rates of up to 300 MBytes/sec or 3.0 Gbits/sec
- Provides performance and protection: native and third-party Mac OS X RAID support
- Ideal for multimedia-intensive applications: audio/video capture and editing, and graphics manipulation/publishing
- User-upgradeable firmware
- 48-bit LBA support for drive sizes larger than 137GB
- Bus master operation enhances multitasking during disk transfers and increases CPU efficiency: The CPU is free to handle other tasks during data transfers between the PCI-Express Bus and system memory
- Data protection: Supports Mac OS X RAID, S.M.A.R.T.
- Reduced setting on storage devices (no master/slave) means easier installation and replacement
|
| Compliances |
- RoHS
- EN55022/1998, EN55024/1998 (European Community)
- FCC Part 15 Class B (US)
|
| Power Requirements |
|
| Warranty |
|
| Physical |
|
| Temperature |
- Operating: +5°C to +55°C
- Non-Operating: -25°C to +70°C
|
| Relative humidity |
- Operating: 20% to 80%
- Non-Operating: 15% to 90%
|
| Dimensions |
- 3.50" x 0.06" x 2.52" (89 x 1.6 x 64mm)
|
| Weight |
|
|
| Click here to get your Model Identifier number |
| This is compatible with the following models: |
 |
Machines Have Model Identifier MacPro5,1
Mac Pro (Mid 2010 8-Core, 2.4GHz)
(July, 2010)
|
 |
|
Machines Have Model Identifier MacPro5,1
Mac Pro (Mid 2010 Quad-Core, 2.8GHz, 3.2GHz)
(July, 2010)
|
|
|
Machines Have Model Identifier MacPro4,1
Mac Pro (Early 2009 8-Core, 2.26GHz, 2.66GHz, 2.93GHz)
(March, 2009)
|
|
|
Machines Have Model Identifier MacPro4,1
Mac Pro (Early 2009 Quad-Core, 2.66GHz, 2.93GHz, 3.33GHz)
(March, 2009)
|
|
|
Machines Have Model Identifier MacPro3,1
Mac Pro (Early 2008, 2.8GHz, 3.0GHz, 3.2GHz)
(January, 2008)
|
|
|
Machines Have Model Identifier MacPro2,1
Mac Pro (8-core, 3.0GHz)
(April, 2007)
|
|
|
Machines Have Model Identifier MacPro1,1
Mac Pro (Original, 2.0GHz, 2.66GHz, 3.0GHz)
(August, 2006)
|
|
 |
Machines Have Model Identifier PowerMac11,2
Power Mac G5 (Late 2005, 2.0GHz, 2.3GHz, dual 2.5GHz)
(October, 2005)
|
|
|
|
