FirmTek

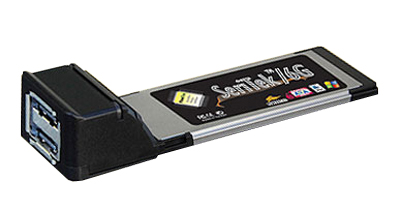

SeriTek/6G
2-port eSATA 6Gb/s ExpressCard/34 Adapter
The SeriTek/6G Offers Several Key Advantages
The FirmTek SeriTek/6G eSATA ExpressCard is designed for audio/video editing, photography, large media content libraries, storage expansion, backup and any application where external, hot swap, high performance, data storage is desirable.
The bootable, 2-port, SeriTek/6G eSATA 6Gb/s ExpressCard provides a new level of performance, offering recorded Read transfer rates over 380MB/s when matched with the 2011 Apple 17-inch MacBook Pro.
SMART Application Support
The FirmTek SeriTek/6G driver features S.M.A.R.T application support which enables it to deliver SMART data to third party utilities like Hardware Monitor. Users can conveniently monitor hard disk temperatures and the health of hard disks attached to the SeriTek/6G while using their favorite Macintosh SMART reporting application. In addition, Disk Utility can also be used to verify the SMART status of hard disks connected to the SeriTek/6G. The FirmTek SeriTek/6G is the first 2-port eSATA 6G ExpressCard that supports both port multiplication and Macintosh 3rd party SMART applications. SMART application support is a very useful feature for monitoring the condition of hard disks connected to the SeriTek/6G.
Performance
The SeriTek/6G features an energy efficient, two channel, SATA 6Gb/s compliant, native eSATA interface. The ExpressCard is compliant with the Serial ATA Revision 3.0 specification which supports SATA 6.0 Gb/s, 3.0 Gb/s and 1.5 Gb/s hard disks and Solid State Disks (SSD). The SeriTek/6G is also backward compatible with 2010 and 2009 MacBook Pro 17" models. However, pre-2011 MacBook Pro models will provide slower Read performance and are not bootable with the SeriTek/6G. For maximum performance, FirmTek recommends utilizing the SeriTek/6G with the 2011 Apple 17" MacBook Pro.
Port Multiplier
The FirmTek SeriTek/6G supports FIS-based port multiplier aware hardware which allows up to ten disks to be connected to the controller when two 5-bay SeriTek/5PM enclosures are available. A port multiplier configuration can provide massive storage volumes for audio/video editing, multimedia libraries or backing up data. The SeriTek/6G optimizes performance for up to 5 hard disks per data port by utilizing the advanced bandwidth characteristics of the PCI-Express architecture. Port multiplication also delivers significantly less cable clutter. A single eSATA data cable can attach up to five hard disks to the computer. The SeriTek/6G can dramatically increase on-hand data storage capabilities. With up to 10 hard disks connected simultaneously, accessible storage limits can be effectively eliminated for all but the most demanding applications.
Direct Connect
Using a direct connect storage enclosure like the FirmTek SeriTek/2EN2 allows up to two external SATA hard disks or SSD's to be attached to the SeriTek/6G. This configuration offers optimal bandwidth for high performance single disk or RAID installations. The SeriTek/6G eSATA controller supports a wide variety of hard disk configuration options for maximum connectivity.
Features
- Provides Mac OS Boot Support with Apple 2011 MacBook Pro 17" (8,3)
- Two-port eSATA 6G ExpressCard/34 adapter with 64-bit and 32-bit "Snow Leopard" compatibility
- Compatible with Mac OS X 10.6.6 and later
- Compatible with Windows 7, Vista and Windows XP
- Reduced compatibility with Apple 2010/2009 MacBook Pro 17" (6,1 & 5,2) models
- Onboard SATA 6Gb/s PCI-Express to Serial ATA controller chip
- Supports Disk Utility RAID 0, 1 and JBOD configurations
- S.M.A.R.T application support for third party Macintosh utilities
- PCI-Express compliant
- SATA 6Gb/s compliant, backward compatible with SATA 3.0 and SATA 1.5 Gb/s
- Provides external PM support for MacBook Pro with an ExpressCard/34 slot
- Complete CRC error checking, for all bits transmitted offers enhanced data protection
- Bus Mastering off-loads data I/O handling from CPU
- User-upgradeable firmware
- Utilizes standard eSATA connectors
- First 6G ExpressCard/34 with SMART application and Macintosh Port Multiplier support
- Port multiplier support: Connect up to 10 drives using SeriTek/5PM enclosures
- Direct connect support: Connect up to 2 drives with a SeriTek/2EN2 enclosure
- Simple to install, Easy to Use, Full Featured eSATA 6G 2-Port ExpressCard
- Excellent value based on performance and features
Product Specifications
Manufacturer Part Number
Ports
Connections
Form Factor
Bus Type
RAID
- Supports Disk Utility RAID 0, 1 and JBOD configurations
External Connectivity
- 2-port external Serial ATA (eSATA) interface connectors support up to 2 external connections
(port multiplier or individual drive connections)
Operating System Support
- Mac OS X 10.6.6 or later "Snow Leopard" 32-bit and 64-bit modes
- Microsoft Windows 7, Vista and Windows XP
Hardware Requirements
- Apple 2011 MacBook Pro 17" (8,3) model (Boot Support)
- Apple 2010/2009 MacBook Pro 17" (6,1 & 5,2) models (No boot support)
- 2011, 2010 & 2009 MacBook Pro 17" models have an ExpressCard/34 slot
- PC notebook with an available ExpressCard/34 slot
Drive Types Supported
- Serial ATA and Solid State Disks
Data Transfer Rates
Drive Modes Supported
Advanced Data Features
- SATA 6Gb/s compliant
- Supports SATA 6.0 Gb/s, 3.0 Gb/s and 1.5 Gb/s Disks
- Fully compliant with Serial ATA Revision 3.0 specification
- PCI-Express compliant
- S.M.A.R.T application support for third party Macintosh utilities
- Supports Apple Disk Utility RAID and JBOD hard disk configurations
- Bus Mastering off-loads data I/O handling from CPU
- Complete CRC error checking, offers enhanced data protection
- Two independent data channels with external Serial ATA (eSATA) connectors
- Automatically identifies and configures drive types
- Supports Mac OS Port Multiplier FIS based switching
- Supports Native Command Queuing (NCQ)
- Low power consumption and aggressive power management
- Direct connect support: Connect up to 2 disks with a SeriTek/2EN2 enclosure
- Port Multiplier support: up to 10 disks using SeriTek/5PM enclosures
- Oxford 936DS/936QS enclosure support
Enclosure Support
- Direct Connect eSATA (SeriTek/2EN2)
- SiI-3726 Port Multiplier (SeriTek/5PM)
- Oxford 936/946
Onboard Flash ROM
- Provides easy upgrades to the latest firmware
Cables Supported
- 7-pin shielded SATA cable, up to 2 meters in length
Agency Approvals & Compliance
- EN55022/1998, EN55024/1998 (European Community)
- FCC Part 15 Class B (US)
- RoHS Compliant
Dimensions
- 113mm(L) x 34mm(W) x 4mm(H)
- 34mm ExpressCard Compliant
Weight
Operating Temperature
(Hardware Environment)
Operating Temperature
(Storage Environment)
Relative Humidity
- Operating: 20% to 80%
- Non-Operating: 15% to 90%
Warranty
Manufacturer provided specifications for Firmtek p/n FTKSATA6G
This card is compatible with...
Click here to get your Model Identifier number.
MacBook Pro (17-inch Early 2011)
(February, 2011)
Model ID: MacBookPro8,3
2.2GHz, 2.3GHz
MacBook Pro (17-inch Mid 2010)
(April, 2010)
Model ID: MacBookPro6,1
2.53GHz, 2.66GHz, 2.8GHz
MacBook Pro (17-inch Mid 2009)
(June, 2009)
Model ID: MacBookPro5,2
2.8GHz, 3.06GHz
MacBook Pro (17-inch Early 2009)
(January, 2009)
Model ID: MacBookPro5,2
2.66GHz, 2.93GHz
MacBook Pro (17-inch Early 2008)
(February, 2008)
Model ID: MacBookPro4,1
2.5GHz, 2.6GHz
MacBook Pro (17-inch Mid/Late 2007)
(June, 2007)
Model ID: MacBookPro3,1
2.4GHz, 2.6GHz
MacBook Pro (17-inch Core 2 Duo)
(October, 2006)
Model ID: MacBookPro2,1
2.33GHz
MacBook Pro (17-inch)
(April, 2006)
Model ID: MacBookPro1,2
2.16GHz
MacBook Pro (15-inch Late 2008)
(October, 2008)
Model ID: MacBookPro5,1
2.4GHz, 2.53GHz, 2.66GHz 2.8GHz
MacBook Pro (15-inch Early 2008)
(February, 2008)
Model ID: MacBookPro4,1
2.4GHz, 2.5GHz, 2.6GHz
MacBook Pro (15-inch Mid/Late 2007)
(June, 2007)
Model ID: MacBookPro3,1
2.2GHz, 2.4GHz, 2.6GHz
MacBook Pro (15-inch Core 2 Duo)
(October, 2006)
Model ID: MacBookPro2,2
2.16GHz, 2.33GHz
MacBook Pro (15-inch Glossy)
(May, 2006)
Model ID: MacBookPro1,1
2.0GHz, 2.16GHz
MacBook Pro (15-inch)
(January, 2006)
Model ID: MacBookPro1,1
1.83GHz, 2.0GHz, 2.16GHz
PC/intel Laptops
Running Windows XP or Windows 7
with available ExpressCard/34 slot
