3Gb/s SATA RAID Host Adapter
RAID 0, 1, 5, 10, & JBOD | Up to 4 SATA devices
This card adds:
- Two Internal eSATA Ports (up to 2 devices)
- Two External eSATA Ports (up to 2 devices)
Requires:
See Specifiactions below for system and/or OS compatibility information |
Initially SATA was designed as an internal or inside-the-box interface technology, bringing improved performance and new features to internal PC or consumer storage. Creative designers quickly realized the innovative interface could reliably be expanded outside the PC, bringing the same performance and features to external storage needs instead of relying on USB or FireWire interfaces. |
Key benefits of eSATA:
- Up to 6 X faster than USB 2.0 & FireWire 400.
- Robust and user friendly external connection.
- High performance, cost effective expansion storage.
- Up to 2 meter shielded cables and connectors.
|
|
Highlights
- PCI 32bit@33/66 MHz
- 2 Internal SATA and 2 External eSATA II ports
- Up to 4 SATA II or SATA I Hard Drives
- RAID 0, 1, 5, 10 and JBOD
- Backward compatible to RocketRAID 1640 RAID arrays
- Support Windows, OS X, Linux and FreeBSD
RAID Management Utilities
- BIOS
- Web based RAID
- Management Software and CLI
|
Additional Features
- Dynamic Sector Repair and Remapping
- Native Command Queuing (NCQ)
- Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLM)
- Staggered drive spin up
- Hard Disk (Activity / Failed) LED chassis function
- SAF-TE Enclosure Management Functions
- BIOS Booting (INT13) to RAID array
- Quick and Background initialization for instant RAID access
- Write through and write back cache for RAID arrays
- Hot swap and hot spare
- Online array roaming
- Automatic detect drive to rebuild degraded RAID
- S.M.A.R.T array monitoring for hard drive status and reliability
- 64bit LBA for RAID arrays greater than 2TB
- SMTP email notification for events and error reporting
- Remote array management through (Web GUI, RAID GUI and CLI)
|
|

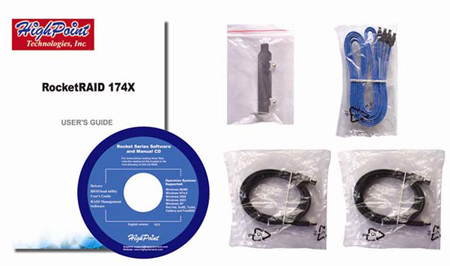

| Includes |

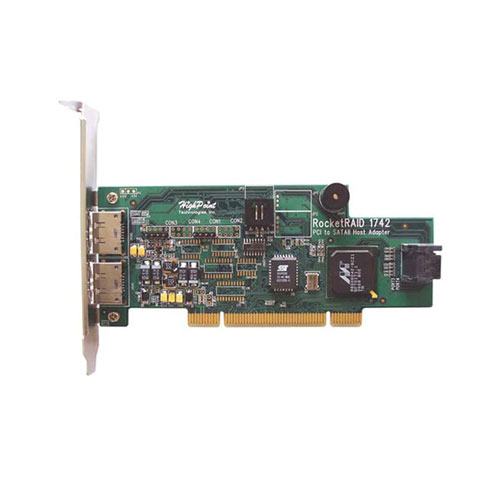

- HighPoint RocketRAID 1742 PCI Card
- 2x 2 meter eSATA to eSATA cables
- 2x Standard SATA cables
- 1x low-profile bracket
- Users Guide
- Rocket Series Software and Manual CD
|
 |
|
| Gallery |
 |
|
|
| Specifications |
| Ports |
- 2 External eSATA
- 2 Internal SATA
|
| Connections |
- External - 2 Devices
- Internal - 2 Devices
|
| Bus Specifications |
|
| Form Factor |
|
| RAID |
- RAID level 0, 1, 5, 10 and JBOD
|
| RAID Controller |
|
| Operating System Support |
- OS X
- Windows (XP, 2000, Server 2003 and Vista)
- Linux
- FreeBSD
|
| External Connectivity |
|
| Internal Connectivity |
|
| MTBF |
|
| Electrical |
- PCI+3.3V : 0.9A
- Power : 3W
|
| Alarm/Buzzer |
|
| Activity/Failure LED |
|
| SAF-TE Connector |
|
| Agency Approvals & Compliance |
- EMI: FCC Part 15 Class B
- CE
- RoHS
|
| Warranty |
|
| Physical |
|
| Dimensions |
- 6.007"L x 2.531"W (152.6mm x 64.3mm)
|
| Weight |
|
| Operating Temperature (Hardware Environment) |
|
| Operating Temperature (Storage Environment) |
|
| Relative Humidity |
|
|
| |
| Click here to get your Model Identifier number |
| This is compatible with the following models: |
 |
Machines Have Model Identifier PowerMac7,3
Power Mac G5 (Early 2005, 2x 2.3GHz, 2x 2.7GHz)
(April, 2005)
|
 |
|
Machines Have Model Identifier PowerMac7,2
Power Mac G5 (Early 2005)
(April, 2005)
|
|
|
Machines Have Model Identifier PowerMac9,1
Power Mac G5 (Late 2004)
(October, 2004)
|
|
|
Machines Have Model Identifier PowerMac7,3
Power Mac G5 (June 2004)
(June, 2004)
|
|
|
Machines Have Model Identifier PowerMac7,2
Power Mac G5 (1.6GHz, 1.8GHz, 2x 1.8GHz, 2x 2.0GHz)
(June, 2003)
|
|
 |
Machines Have Model Identifier PowerMac3,6
Power Mac G4 (FW 800, 1.0GHz, 2x 1.25GHz, 2x 1.42GHz)
(January, 2003)
|
|
|
Machines Have Model Identifier PowerMac3,6
Power Mac G4 (Mirrored Drive Doors, 2x 867MHz, 2x 1.0GHz, 2x 1.25GHz)
(August, 2002)
|
|
 |
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver 2002 ED, 867MHz)
(August, 2002)
|
|
|
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver 2002, 733MHz, 800MHz, 933MHz, 2x 1.0GHz)
(January, 2002)
|
|
|
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver, 733MHz, 867MHz, 2x 800MHz)
(July, 2001)
|
|
 |
Machines Have Model Identifier PowerMac3,4
Power Mac G4 (Digital Audio, 466MHz, 533MHz, 2x 533MHz, 667MHz, 733MHz)
(January, 2001)
|
|
|
Machines Have Model Identifier PowerMac3,3
Power Mac G4 (Gigabit Ethernet, 400GHz, 2x 450MHz, 2x 500GHz)
(July, 2000)
|
|
|
Machines Have Model Identifier PowerMac3,1
Power Mac G4 (AGP Graphics, 350MHz, 400MHz, 450GHz, 500GHz)
(September, 1999)
|
|
|
Machines Have Model Identifier PowerMac1,2
Power Mac G4 (PCI Graphics, 350MHz, 400MHz)
(August, 1999)
|
|
 |
Machines Have Model Identifier PowerMac1,1
Power Macintosh G3 (Blue & White, 300MHz, 350MHz, 400MHz, 450MHz)
(January, 1999)
|
|
 |
PC running Windows 2000/XP/2003/Vista
and available PCI expansion slot
|
|
|
|
