        Home » Expansion Cards

        We're sorry, but this item is no longer for sale. However, there may be more Expansion Cards items available.

        HighPoint

        RocketRAID 2722
        6Gb/s SAS/SATA RAID Host Adapter

        RAID 0, 1, 5, 10, 50, & JBOD | Up to 8 SAS/SATA devices
        Utilizing a point-to-point connectivity architecture in addition to PCI-Express 2.0 x8 lane speed maximizes performance support up to 4000MB/s. Doubling the performance eliminates the bottleneck from previous PCIe generations to support today's fastest storage devices such as SAS & SSD.

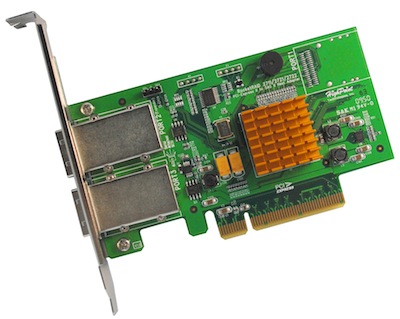

        HighPoint RocketRAID 2722
        This Card Adds:
        • Two External Mini-SAS Port
          (up to 8 devices)
        Requires:
        • Available PCIe 2.0 x8 lane Slot
          (backwards compatible with PCI-Express 1.0)

        See specifications below for system and/or OS compatibility information

        • FEATURES
        • SPECS
        • INCLUDES
        • GALLERY
        • COMPATIBILITY

        Features

        Maintenance and Management Settings

        • RAID Array Roaming
        • Unplug/Remove RAID array
        • Hot key (ctrl-h) boot-up RAID manager via BIOS
        • Firmware update while running the Operating System
        • Verify RAID Array for Bad Sectors and Parity Check
        • Task Scheduler
        • Automatic RAID rebuild
        • Automatic drive (insert / removal) detection
        • Hot Spare Disk



        • Staggered Drive Spinup
        • Rebuild Priority (Low - Highest)
        • Spin Down Idle Mode
        • Hot Swap and Hot plug
        • Bad sector repair and remapping to reduce dropped drives
        • Multiple RAID array
        • Multiple Logical Drive
        • 64bit LBA support greater than 2TB per volume

        RAID Monitoring Tools

        • SMTP for email notification
        • Alarm / Buzzer alerts for drive failure
        • SES-2 enclosure management (Failed, SMART (SHI))
        • Enclosure management support I2C
        • Hard Drive LED indicators (Activity and Failed)
        • SHI (Storage Health Inspector - Drive analysis from S.M.A.R.T)
        • Event Log

        RAID Management Suite

        • Command Line Interface (CLI)
        • Web browser-base RAID management software
        • API

        Product Specifications

        Manufacturer Part Number

        • RRAID2722

        Ports

        • 2 External Mini-SAS

        Connections

        • External - 8 Devices

        Bus Specifications

        • PCI-Express 2.0 x8 (Compatible with PCI-Express 1.0)

        Form Factor

        • Low-Profile

        RAID Functionality

        • RAID level 0, 1, 5, 10, 50 and JBOD
        • Multiple RAID Support
        • BIOS Boot to RAID with point-to-point connectivity or through port multiplier
        • Quick, Background or Foreground Initialization

        RAID Controller

        • Marvell 88SE9485

        Operating System Support

        • OS X
        • Windows
        • Linux
        • FreeBSD

        External Connectivity

        • x8 Mini SAS connector

        Internal Connectivity

        • none

        MTBF

        • 920,585 hours

        Operating Voltage

        • 3.3V (4W max) / 12V (1W max)

        Alarm/Buzzer

        • Yes

        Activity/Failure LED

        • Yes

        SAF-TE Connector

        • Yes

        Agency Approvals & Compliance

        • EMI: FCC Part 15 Class B
        • CE

        Temperature

        • Operating: +5°C to +55°C
        • Non-Operating: -20°C to +80°C

        Relative humidity

        • 5% ~ 60% non condensing

        Dimensions

        • 3.79"L x 2.55"W

        Weight

        • 1.45 lbs

        Warranty

        • Highpoint Technologies 1 Year Limited Warranty
        Manufacturer provided specifications for Highpoint Technologies p/n RRAID2722 UPC#: 643653272211

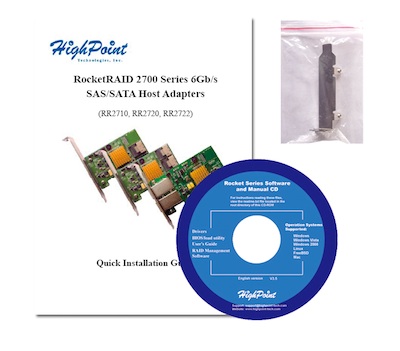

        Includes

        • RocketRAID 2722 host adapter
        • Quick Installation Guide
        • Software CD

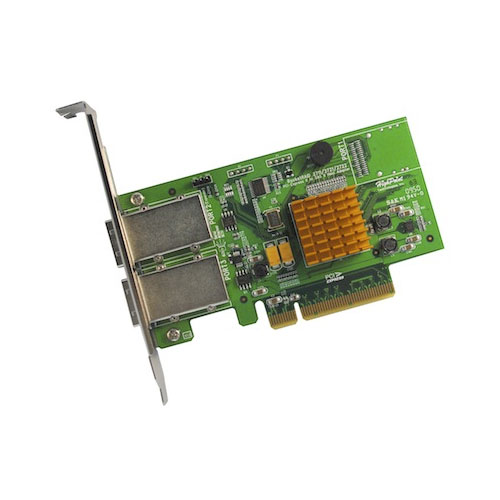

        Gallery

        Gallery Pic 1
        This product is compatible with... Learn how to find your Mac's model ID
        Mac Pro
        Mac Pro 4-Core (Mid 2012)
        (June, 2012)
        Model ID: MacPro5,1
        3.2GHz
        Detailed specs
        Install Videos
        Mac Pro
        Mac Pro 8-Core (Mid 2010)
        (July, 2010)
        Model ID: MacPro5,1
        2.4GHz
        Detailed specs
        Install Videos
        Mac Pro
        Mac Pro 4-Core (Mid 2010)
        (July, 2010)
        Model ID: MacPro5,1
        2.8GHz, 3.2GHz
        Detailed specs
        Install Videos
        Mac Pro
        Mac Pro 8-Core (Early 2009)
        (March, 2009)
        Model ID: MacPro4,1
        2.26GHz, 2.66GHz, 2.93GHz
        Detailed specs
        Install Videos
        Mac Pro
        Mac Pro 4-Core (Early 2009)
        (March, 2009)
        Model ID: MacPro4,1
        2.66GHz, 2.93GHz, 3.33GHz
        Detailed specs
        Install Videos
        Mac Pro
        Mac Pro 4-Core (Early 2008)
        (January, 2008)
        Model ID: MacPro3,1
        2.8GHz
        Detailed specs
        Install Videos
        Mac Pro
        Mac Pro 8-Core (Early 2008)
        (January, 2008)
        Model ID: MacPro3,1
        2.8GHz, 3.0GHz, 3.2GHz
        Detailed specs
        Install Videos
        Mac Pro
        Mac Pro 8-core (Early 2007)
        (April, 2007)
        Model ID: MacPro2,1
        3.0GHz
        Detailed specs
        Install Videos
        Mac Pro
        Mac Pro 4-core (Mid 2006)
        (August, 2006)
        Model ID: MacPro1,1
        2.0GHz, 2.66GHz, 3.0GHz
        Detailed specs
        Install Videos
        PC Desktop
        PC
        PC running Windows, Linux or FreeBSD and available PCI-Express x8 lane or better slot
        HighPoint RocketRAID 2722 6Gb/s SAS/SATA
        RAID Host Adapter         Mfr P/N: RRAID2722 OWC SKU: HPTRRAID2722 PCI-Express 2.0 x8 mini-SAS 2 Port 6Gb/s RAID Controller Card for up to 8 external drives. Supports RAID 0, 1, 5, 10, 50, JBOD. Highpoint Technologies 1 Year Limited Warranty Ships: Sold Out
        Be the first
        Only $319.99MacSales.com Price $229.00
        Sold OutSold OutHighpoint Technologies RRAID2722, Click to Buy Now
