3Gb/s SAS/SATA RAID Host Adapter
RAID 0, 1, 3, 5, 6, 10, 50, and JBOD| Up to 8 SAS/SATA devices

This card adds:
- Two External Mini-SAS Port (up to 8 devices)
Requires:
- Available PCIe 2.0 x8 lane Slot
(backwards compatible with PCI-Express 1.0)
See Specifiactions below for system and/or OS compatibility information |

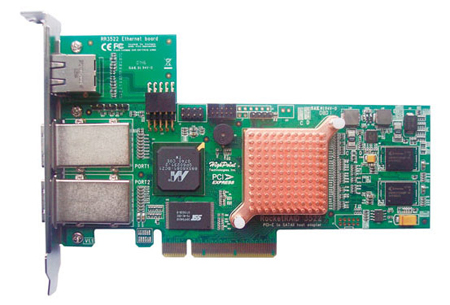

RocketRAID 3522 PCI-Express x8 Hardware RAID controller with enterprise level data protection, performance and manageability.
Dual external mini-SAS connectors for external storage , RAID 5 XOR and 6 (P+Q) with NVRAM for advance data protection and OBM (Out of Band Management to monitor storage array. |
 |
|
Host Adapter Architecture
- TerabyteStream™ for blazing performance
- Intel IOP 81341
- PCI -Express x8 (x16 slot compatible)
- 256 MB of DDR II memory with ECC protection
- Write through and write back cache
- 2 External mini-SAS Channels up to 8 SATA I or SATA II Hard Drives
- Multi -adapter support up to 4 adapters
- BIOS booting support (PC Only)
- EFI booting on Mac Pro, download the latest EFI drivers here.
- BIOS PnP and BBS (BIOS boot specification) support
- Intel RAID 6 (P+Q) for large capacity RAID arrays
- NVRAM for write journaling
- Optional Battery Backup Unit
- RoHS compliant
Advanced RAID Features
- Support RAID 0, 1, 3, 5, 6, 10, 50, and JBOD
- Multiple RAID support
- Multiple Logical Drive Support
- Online array roaming
- Online capacity expansion (OCE) and Online RAID level migration
- (ORLM)
- OCE & ORLM is currently NOT supported on the Mac.
- Quick and Background initialization for instant RAID configuration
- Automatic drive insertion / removal detection and rebuild
- 64bit LBA support greater than 2TB per volume
- S.M.A.R.T monitoring hard drive status for reliability
- Staggered Spinup with user selection in BIOS
- (MAID) spin down drives in array is idle
|
Array Monitors, Alerts and Indicators
- SMTP for email notification
- SAF -TE (I2C) enclosure management
- Alarm / Buzzer alerts for array activity
- SNMP for remote management
- Ethernet board for (OBM) Out of Band Management
- NTP (Network Time Protocol)
RAID Management
- TerabyteSaver™ and TerabyteGuard™ for Data Protection and Reliability
- Firmware update in the Operating System
- Hot key (ctrl-h) boot-up RAID manager via BIOS
- API library for customizing AP
- Command Line Interface (CLI)
- Web browser-base RAID management software
- Disk scrubbing to prevent degraded RAID arrays on and Reliability
- Bad sector repair and remapping to reduce dropped drives
- ATA pass-through mode support
Operating System Support
- Windows (2000, XP, x64) Microsoft WHQL 2003 and Vista (32 and 64) BIT) certified
- Linux
- Mac OS X 10.4 (Tiger) and 10.5 (Leopard) - usable in: Power Mac G5 (PCI-e) PPC, Mac Pro (PCI-e) Intel, Xserve (PCI-e) Intel
- FreeBSD
- GPL Licensed Linux Open Source Driver into Kernel 2.6.24
|
|
| Includes |
- RocketRAID 2722 host adapter
- Quick Installation Guide
- Software CD
|
 |
|
| Gallery |
|
 |
|
| Specifications |
| Ports |
|
| Connections |
|
| Bus Specifications |
- PCI-Express 2.0 x8 (Compatible with PCI-Express 1.0)
|
| Form Factor |
|
| RAID |
- RAID level 0, 1, 3, 5, 6, 10, 50, and JBOD
- Multiple RAID Support
|
| RAID Controller |
|
| Operating System Support |
- OS X
- Windows
- Linux
- FreeBSD
|
| External Connectivity |
|
| Internal Connectivity |
|
| MTBF |
|
| Operating Voltage |
|
| Alarm/Buzzer |
|
| Activity/Failure LED |
|
| SAF-TE Connector |
|
| Agency Approvals & Compliance |
- EMI: FCC Part 15 Class B
- CE
|
| Warranty |
|
| Physical |
|
| Dimensions |
- (167.0mm x 67.0mm) 6.75"L x 2.63"W
|
| Weight |
|
| Operating Temperature (Hardware Environment) |
|
| Operating Temperature (Storage Environment) |
|
| Relative Humidity |
|
|
| |
| Click here to get your Model Identifier number |
| This is compatible with the following Mac Pro models: |
 |
Machines Have Model Identifier MacPro5,1
Mac Pro (Mid 2010 8-Core, 2.4GHz)
(July, 2010)
|
 |
|
Machines Have Model Identifier MacPro5,1
Mac Pro (Mid 2010 Quad-Core, 2.8GHz, 3.2GHz)
(July, 2010)
|
|
|
Machines Have Model Identifier MacPro4,1
Mac Pro (Early 2009 8-Core, 2.26GHz, 2.66GHz, 2.93GHz)
(March, 2009)
|
|
|
Machines Have Model Identifier MacPro4,1
Mac Pro (Early 2009 Quad-Core, 2.66GHz, 2.93GHz, 3.33GHz)
(March, 2009)
|
|
|
Machines Have Model Identifier MacPro3,1
Mac Pro (Early 2008, 2.8GHz, 3.0GHz, 3.2GHz)
(January, 2008)
|
|
|
Machines Have Model Identifier MacPro2,1
Mac Pro (8-core, 3.0GHz)
(April, 2007)
|
|
|
Machines Have Model Identifier MacPro1,1
Mac Pro (Original, 2.0GHz, 2.66GHz, 3.0GHz)
(August, 2006)
|
|
 |
PC running Windows, Linux or FreeBSD
and available PCI-Express x8 lane or better slot
|
|
|
|
