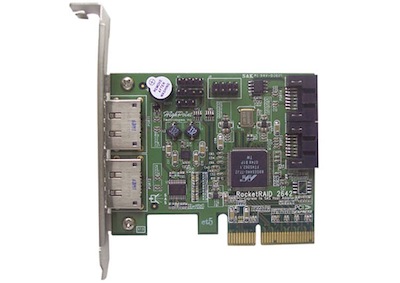

HighPoint RocketRAID 2642
6Gb/s SAS/SATA RAID Host Adapter
RAID 0, 1, 5, 10, & JBOD | Up to 4 SAS/SATA devices
New Condition | Open Box

This card adds:

Two External Mini-SAS Port (up to 2 devices)
Two Internal Mini-SAS Port (up to 2 devices)

Requires:

Available PCIe 1.0 x4 lane Slot

See Specifiactions below for system and/or OS compatibility information

The RocketRAID 2642 PCIe SAS RAID host adapter offers cost effective SAS connectivity plus RAID 5 functionality, with support for internal and external storage configurations.

Highlights

SAS/SATA
3Gb/s (300MB/s) transfer rate
NCQ (Native Command Queuing)
Staggered drive spin-up support
Hot swap and hot spare
Bad Sector Reallocation and Remapping
Write-through and write-back cache support
Quick and Background initialization for quick RAID configuration
Online array roaming
64bit LBA for over 2TB support
Automatic RAID rebuild of failed drive
S.M.A.R.T drive monitoring for status and reliability
Browser-based RAID management software
SMTP for email notification

Features

RAID Levels 0, 1, 5, 10 and JBOD
Multiple RAID Support
Online Array Roaming
Automatic RAID Rebuild
Automatic Drive Insertion
Quik Initilization
Online Capacity Expansion / Online RAID Level Migration
Hot Spare - (global)
Staggered Drive Spin-up
Bad Sector Repair and Remapping
BIOS Booting Support

RAID Management Suite

Web GUI management utility
CLI (Command Line Inteface)
BIOS Management

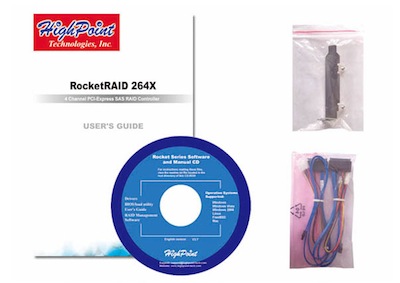

Includes

RocketRAID 2642 SAS RAID Controller
RocketRAID SAS user manaual
Low profile bracket
Software CD with (Drivers and Manual)
Cables (Point to point) and internal mini-SAS

Gallery

Specifications
Ports	2 External Mini-SAS 2 Internal Mini-SAS
Connections	Internal - 2 Devices External - 2 Devices
Bus Specifications	PCI-Express 1.0 x4
Form Factor	Low-Profile
RAID	Supports RAID 0,1,5,10 and JBOD Multiple RAID array support Multiple logical drive support
RAID Controller	Marvell 88SE6445
Operating System Support	OS X Windows Linux FreeBSD
External Connectivity	x2 Mini SAS connector
Internal Connectivity	x2 Mini SAS connector
MTBF	920,585 hours
Operating Voltage	3.3V (5W max)
Alarm/Buzzer	Yes
Activity/Failure LED	Yes
SAF-TE Connector	Yes
Agency Approvals & Compliance	EMI: FCC Part 15 Class B CE
Warranty	3 Year HighPoint Warranty
Physical
Dimensions	3.13"L x 2.66"W
Weight	1.45 lbs
Operating Temperature (Hardware Environment)	+5°C ~+ 55°C
Operating Temperature (Storage Environment)	-20°C ~ +80°C
Relative Humidity	5% ~ 60% non condensing

Click here to get your Model Identifier number
This is compatible with the following Mac Pro models:
	Machines Have Model Identifier MacPro5,1 Mac Pro (Mid 2010 8-Core, 2.4GHz) (July, 2010)
	Machines Have Model Identifier MacPro5,1 Mac Pro (Mid 2010 Quad-Core, 2.8GHz, 3.2GHz) (July, 2010)
	Machines Have Model Identifier MacPro4,1 Mac Pro (Early 2009 8-Core, 2.26GHz, 2.66GHz, 2.93GHz) (March, 2009)
	Machines Have Model Identifier MacPro4,1 Mac Pro (Early 2009 Quad-Core, 2.66GHz, 2.93GHz, 3.33GHz) (March, 2009)
	Machines Have Model Identifier MacPro3,1 Mac Pro (Early 2008, 2.8GHz, 3.0GHz, 3.2GHz) (January, 2008)
	Machines Have Model Identifier MacPro2,1 Mac Pro (8-core, 3.0GHz) (April, 2007)
	Machines Have Model Identifier MacPro1,1 Mac Pro (Original, 2.0GHz, 2.66GHz, 3.0GHz) (August, 2006)
	PC running Windows, Linux or FreeBSD and available PCI-Express x8 lane or better slot
