IOGEAR USB 2.0 / FireWire Combo CardBus Card - 2-in-1 CardBus (FireWire, USB 2.0, and USB 1.1) - Upgrade Your Notebook to USB 2.0 and FireWire! (IOGGUF202)
|
Same Day
|
$67.99 |
 |
|
|
|
|
Description:

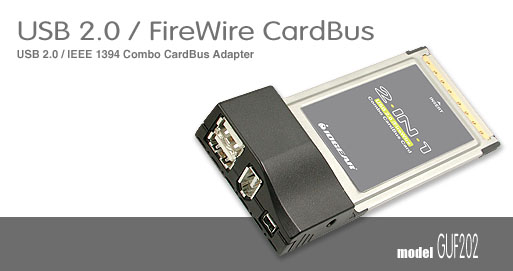

USB 2.0 / FireWire Combo CardBus Card - 2-in-1 CardBus (FireWire, USB 2.0, and USB 1.1)

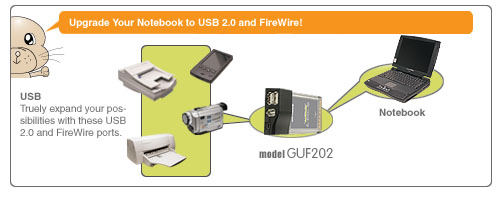

Upgrade Your Notebook to USB 2.0 and FireWire!
GUF202 is a combination PCI CardBus adapter that features both USB 2.0 and IEEE 1394 (FireWire) connections on the same card. It includes two USB 2.0 Type A receptacles and two IEEE 1394 Type A receptacles.
All USB ports support both USB version 2.0 and 1.1 devices. The two external USB 2.0 Type A ports can be used for external USB 2.0 and 1.1 devices such as scanners, portable CD-ROMs, portable drives, etc.
The two external IEEE 1394 receptacles can be used for IEEE 1394 devices such as digital camcorders, digital cameras, etc.
USB 2.0 will move data at a rate of 480 Mbps (Megabits per second), and is fully backward compatible with the first generation of USB devices. With the increase in speed, USB 2.0 will offer enhanced functionality, allowing more devices to share the increased bandwidth. The new USB 2.0 ports will allow you to take full advantage of the USB 2.0 technology on your current USB 1.1 systems. Users can take advantage of the scalability that USB 2.0 products provide.
|
|
Function:
|
|
|
|
Features/Benefits:
• USB 2.0 - 40 times faster than the original USB
• Supports high speed data transfer rates of up to 480 Mbps.
• Supports Mac OS X 10.0.3 or greater; Windows 98SE, 2000, ME, XP
• Two Type A USB downstream ports
• Hot Swappable - Plug-N-Play
• Fully backward compatible with USB 1.1
• PC power management v2.2 compliant
• Provides better performance for printer, scanner, PC camera, storage, and Broadband network connections
• Automatically switches to the highest speed peripheral is capable of supporting
• IEEE 1394 FireWire - provides two downstream ports
• 400 Mbps data throughput
• Supports 100/200/400 Mbs connections
• Automatically switches to the highest speed supported by peripheral
• Fully IEEE 1394 compliant
• Plug-n-Play compatible
• Chain up to 63 devices together
• Hot Pluggable - connect devices without restarting the computer
• Use with digital camcorders, hard drives, scanners and more
• Easy to install - no jumpers, switches or terminators required
|
|
|
|
|
|
Support high speed data transfer rates of up to 480 Mbps using USB 2.0 technology
|
Hot Pluggable - connect devices without restarting the computer
|
Automatically switches to the highest speed supported by peripheral
|
|
Requirements:
• For PC Users
• Windows 98SE, 2000, ME, XP
• 300 Mhz or greater
• Available CardBus slot
• For MAC Users
• Mac G3 required
• OS X10.0.3 or greater (USB 2.0 support)
• Available CardBus slot |
|
|
|
Package Content:
• GUF202 Combo CardBus Adapter
• Installation CD
• Users Manual
• Warranty/Registration Card
• Power Adapter
|
|
Specifications:
|
|
Function
|
GUF202
|
| Case |
| Case Qty. |
12
|
| Height |
10.25 in/26.0 cm
|
| Length |
14.25 in/36.2 cm
|
| Width |
10.5 in/26.7 cm
|
| Connectors |
(2) USB 2.0, (1) 6 pin Firewire, (1) 4 pin FireWire
|
| Data Rate |
USB 2.0-480 Mbps, FireWire-400 Mbps
|
| Dimensions |
| Height |
0.88 in/2 cm
|
| Length |
4.75 in/ 12.2 cm
|
| Width |
2.1 in/5.4 cm
|
| FireWire Specifications |
IEEE 1394a
|
| Humidity |
20-80% RH, (Non Condensing)
|
| Operating System Support |
- MAC OS X 10.0.3 or greater
- Win 98SE, 2000, ME, XP
|
| Operating Temperature |
20-50 degrees (Celsius)
|
| Package Dimensions |
| Height |
2.75 in/6cm
|
| Length |
9.5 in/24.1cm
|
| Width |
6.5 in/16 cm
|
| Storage Temperature |
0 to 70 degrees (Celsius)
|
| Transfer Rate |
USB - 480 Mbps, FireWire - 100, 200, 400 Mbps
|
| USB Specification |
USB 1.1 and 2.0 compliant
|
| Weight |
2 oz./56.8 g
|
|
|
|
