| 802.11n/g/b Wireless USB 2.0 Stick Adapter & Extension Cradle |
|
| |
Features:
- Fully Mac OS X supported with with on-screen
menu set-up and full user manual.
- Easy to connect via USB 2.0 and USB 1.1*
- Cradle base for optimal positioning reception
- IEEE802.11n standard 2.0 compliant
- Up to 300Mbps data transmission rate
- Backward compatible with 802.11g/b
- Ideal for bandwidth-sensitive application
- Designed to stream movies, music, photos,
HD video, VoIP phone calls, and large files
- Advanced security features: 64/128-bit WEP, WPA, WPA2
- 2 year warranty
Smart Antenna Technology For MAXimum Wireless Range & Reliability—
Stay Connected From Virtually Anywhere!
))) Up to 4x GREATER range than 802.11g
))) The FASTEST wireless data transfer rate...up to 300Mbps |
 |
|
|
|
|
Experience the freedom of the
latest 802.11n wireless technology!
Simply plug the MAXPower USB 2.0 Stick Adapter into any available USB 2.0 port on your notebook or desktop computer to start sharing Internet access, media files and network resources such as printers and external storage from the furthest room in your home or office. |
|
|
|
|
MAXimum Reception Quality
Moveable adapter cradle base
offers positioning convenience for
optimal reception quality. |
MAXimum Security & Privacy
The latest encryption and security features protect your computer from hackers and unauthorized users. |
MAXimum Compatibility
Backward compatible with 802.11g/b
wireless standards
to maintain existing network investment. |
MAXimum Mobility
Share, surf, even stream
HD video anywhere! Access Internet and e-mail services in public locations too. |
|
|
| Product Specifications |
| Wireless Standards |
- IEEE standard 802.11n, 802.11b/g
|
| Chipset |
|
| Features |
- Fully Mac OS X supported with with on-screen
menu set-up and full user manual.
- Easy to connect via USB 2.0 and USB 1.1*
- Cradle base for optimal positioning reception
- IEEE802.11n standard 2.0 compliant
- Up to 300Mbps data transmission rate
- Backward compatible with 802.11g/b
- Ideal for bandwidth-sensitive application
- Designed to stream movies, music, photos,
HD video, VoIP phone calls, and large files
- Advanced security features: 64/128-bit WEP, WPA, WPA2
- 2 year warranty
|
| Interface |
|
| Antenna |
- internal, non-detachable printed antenna(3dbi)
|
| Security |
- 64/128-bit WEP, WPA, WPA2
|
| Frequency Band |
- 2.412GHz~2.484GHz (ISM Band)
|
| Operating Channels |
|
| Transmit Output Power |
|
| Spread Spectrum Transmission Method |
- Direct Sequence Spread Spectrum (DSSS)
|
| Transmission Distance |
- Indoor 230 feet**
- Outdoor 820 feet**
|
| Data Transmission Rate (Auto Rate Sensing) |
- 11b: 11, 5.5, 2,
1
Mbps per channel 11g: 54,
48, 36, 24, 18, 12, 9,
6Mbps per channel 11n (20MHz): 144, 130, 115, 86, 57, 43, 28,
14Mbps 11n (40MHz): 270, 240,
180, 120, 90, 60, 30Mbps
|
*operates at reduced speeds due to interface limitations
**Actual data throughput and reception range can vary depending on network conditions and environmental factors.

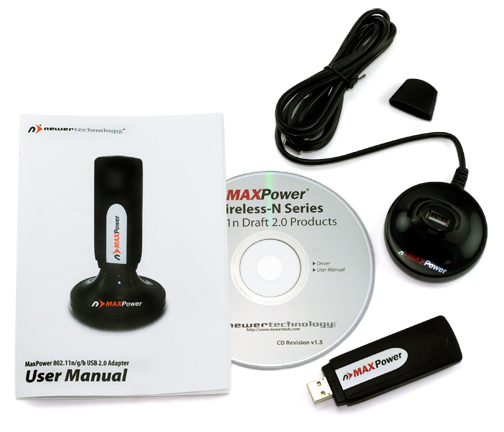

| Includes |
 |
- MAXPower 802.11n/g/b Wireless USB 2.0 Stick Adapter
- CD-ROM (User Manual, Drivers, Utility)
- User Manual
- USB Cradle
|
|
|
| Charts |
Click to make larger |
|
Click to make larger |
|
|
|
