Name: (*) NewerTech Guardian MAXimus RAID-1 [MIRROR] eSATA/FW800/400+USB 3.0 Enclosure Kit for 2 x HDD
Brand: Newer Technology
SKU: NWTGM3QKIT0GB
Rating: 4.83 (12 reviews)

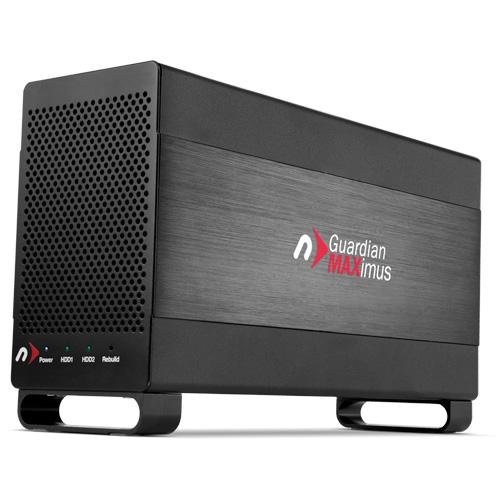

Newer Technology Guardian MAXimus

We're sorry, but this item is no longer for sale. However, there may be more External Drives & Enclosures items available.

Provides "live activity" backup/data redundancy of your critical data with Plug and Play simplicity on any Mac or PC.

Provides “live activity” backup/data redundancy of your critical data
Plug and Play simplicity on any Mac or PC
FireWire 800/400, USB 3.0, and eSATA ports
Thermalregulated Smart Fan for super quiet operation
1 Year Newer Technology Limited Warranty

Reviews (12)

Overview
Includes
Specs
Videos
Reviews

MAXimum Performance & Compatibility

Underneath Guardian MAX's sleek, unassuming housing beats the heart of a super protector ready to save large amounts of precious data quickly, reliably, and effortlessly. Pre-configured hardware RAID solutions feature two paired lightning fast SATA 1.5/3.0Gb/s drives with up to 6.0TB each of storage capacity and a high speed Custom Oxford 946DSE/3100 Integrated Chipset featuring FireWire 800/400, USB 3.0, and eSATA ports to deliver some of the fastest single drive transfer rates possible...up to 300MB per second! Enclosure only kits are also available for "add your own hard drive" flexibility and economy With its multiple interface connections, Guardian MAXimus makes adding vault-like mirrored data storage performance to Macintosh and Windows computers Plug and Play easy.

MAXimum Real Time Redundancy

Real performance can also be measured by intangibles like having peace of mind knowing your critical data is always safe! Should you experience a hard drive failure, the ever vigilant Guardian MAXimus automatically and seamlessly continues data read/write functions with the remaining drive. And with the convenient front panel drive status LEDs, you'll know at a glance which drive is being accessed and if you need to take any action.

Why You Need Guardian MAXimus RAID-1

Guardian MAXimus is "live activity" backup of financial records, medical files, business projects...any critical data that you simply cannot risk losing. It's always guarding against data loss by writing the same information in real-time to two separate drives for a "mirrored" copy. It also protects you from costly system downtime and data restoring after a single hard drive-equipped system crash. Even daily scheduled software driven data backups can't protect you from the time of your last backup and when your computer's internal drive fails.

MAXimum Portability

With its shock resistant design, diminutive 5.8 pound weight (bare case is 2.6 lbs.), and 9.3? x 2.8? x 5.6? (237mm x 72mm x 142mm) dimensions, Guardian MAXimus is ready to go to wherever you need a storage sentinel on duty. The comprehensive Mac utility used by professionals for accurate Mac diagnosis and maintenance.

Includes

(1) External NewerTech Guardian MAXimus storage solution
(1) 39" High Quality Double Shielded eSATA connecting cable
(1) 36" High Quality Double Shielded FireWire 800 connecting cable (9-9 Pin cable)
(1) 36" High Quality Double Shielded FireWire 400 black connecting cable (6-6 Pin cable)
(1) 36" High Quality Double Shielded USB 3.0 connecting cable
(1) US/International 100~240V 4.2Amp UL Listed power supply
(1) Backup and Utility software Suite
Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later
NovaStor NovaBACKUP® for Windows 2000 or later
(1) Guardian MAXimus Assembly Manual & User Guide (6.4MB PDF)
1 Year Newer Technology Limited Warranty

Need an additional power supply? Secondary/replacement power supplies are also available.

Specs

Drive Bays

2 bays supporting: 3.5-inch SATA drives
Drives must be identical

Storage Interface

SATA

RAID Capable

RAID Levels Supported

RAID 1

RAID Features

Hardware RAID

Device Ports

(1) USB 3.0 Port
(1) eSATA 3 Gb/s Port (supports port multiplier)
(2) FireWire 800 Ports
(1) FireWire 400 Port

Data Transfer Rate (Maximum)

USB 3.2 Gen 1 : Up to 5Gb/s (or 625MB/s)
USB 2.0 : Up to 480Mb/s (or 60MB/s)
USB 1.1 : Up to 12Mb/s (or 1.5MB/s)
eSATA Rev 2.x : Up to 3Gb/s (or 375MB/s)
eSATA Rev 1.x : Up to 1.5Gb/s (or 187.5MB/s)
FireWire 800 : Up to 800Mb/s (or 100MB/s)
FireWire 400 : Up to 400Mb/s (or 50MB/s)

Chipset / Controller

Oxford 946

MTBF (Mean Time Between Failures)

Varies depending on drive mechanism installed

Contact Start Stops

Varies depending on drive mechanism installed

Mac OS Compatibility

Mac OS 8.6
Mac OS 9.0
Mac OS 9.1
Mac OS 9.2
Mac OS X 10.0 Cheetah
Mac OS X 10.1 Puma
Mac OS X 10.2 Jaguar
Mac OS X 10.3 Panther
Mac OS X 10.4 Tiger
Mac OS X 10.5 Leopard
Mac OS X 10.6 Snow Leopard
Mac OS X 10.7 Lion
Mac OS X 10.8 Mountain Lion
OS X 10.9 Mavericks
OS X 10.10 Yosemite
OS X 10.11 El Capitan
macOS 10.12 Sierra

PC OS Compatibility

Windows 2000
Windows ME
Windows XP
Windows XP 64-bit Edition
Windows XP Professional x64 Edition
Windows Vista
Windows 7 32-bit Edition
Windows 7 64-bit Edition
Windows 8 32-bit Edition
Windows 8 64-bit Edition
Windows 8.1 32-bit Edition
Windows 8.1 64-bit Edition
Windows 10 32-bit Edition
Windows 10 64-bit Edition
Windows Server 2019
Windows Server 2022
Windows 11

Other OS Compatibility

Chrome OS
Linux supported via USB and FireWire interfaces

Other Requirements

Mac OS X 10.2 or later required for FireWire 800 and USB 3.0

External Power Adapter

Power Supply

External UL-listed universal auto-switching power supply
Need an additional power supply? Secondary/replacement power supplies are also available.

AC Input

100-240V, 50-60Hz, 1.5A

DC Output

+12V, 5A

Replacement Adapter Part Number

OWCMEP2BAY5A (sold separately)

Cooling

(1) cooling fan

Security Slot

Power Button

Power/Activity LED

Housing Color

Black

Housing Material

Aluminum

Dimensions

Height: 13.3 cm (5.3 in)
Length: 22.8 cm (9.0 in)
Width: 7.3 cm (2.9 in)

Weight

1.1 kg (2.33 lbs)

Ambient Temperature

Operating: Varies depending on drive mechanism installed
Non-Operating: Varies depending on drive mechanism installed

Altitude

Operating: Varies depending on drive mechanism installed
Non-Operating: Varies depending on drive mechanism installed

Humidity

Operating: Varies depending on drive mechanism installed
Non-Operating: Varies depending on drive mechanism installed

Shock

Operating: Varies depending on drive mechanism installed
Non-Operating: Varies depending on drive mechanism installed

Noise

Varies depending on drive mechanism installed

Videos

Install Videos

Newer Technology Guardian MAXimus Enclosure: Determining and replacing a failed drive.

Newer Technology Guardian MAXimus Enclosure: Drive Installation

Customer Reviews

4.83 out of 5

Write a Review

5-Star

4-Star

3 star

2 star

1 star

83%

17%

Great Product

I have about 10 of these Mirrored Dual Drive Bays and I will continue to purchase them as they are needed. The ones I have range from 2GB up to 4GB and they are effortless to use. These are great for backup use as well as for always on and permanently connected to many of our Macintosh computers. Because of their relatively small size they are also good as a backup drive that can be stored in onsite Fire Proof/Flood Proof safes.

I would recommend this product to a friend!

Verified Purchase.

Jan, 17 2016

From:Oak Park, MI
Age:Over 65
Experience:IT Professional
Owned Product:over 6 months

Good Simple RAID Enclosure

Bought this as a backup device for all of my wife's photos and video files. Using two 1TB drives I had left over from a previous upgrade I installed them in about 10 minutes. Getting the drive connected to the iMac did cause a problem and calling the help line I was told that I had to initially connect using the USB interface set up the RAID, then shut down and use the Firewire interface. Sort of a round about way, but everything works and I am pleased. There was a problem with what seemed to be a lot of noise coming from the cooling fan. Again customer service told me to carefully pop out the fan press on the center of the fan to seat or reseat it and reinstall and restart. That did make the drive much quieter. So for the money this is a great drive especially if you have a pair of old drives you want to make use of.
