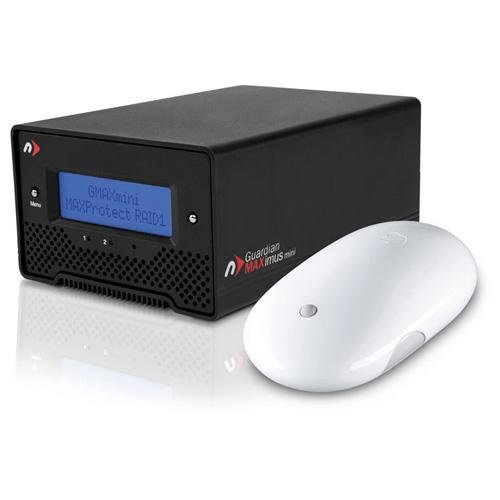

240GB + 240GB Newer Technology Guardian MAXimus mini
Ultra Portable, Secure Storage Solution with Versatile Interface
Mfr P/N: NWTGM8QMSSD480 OWC SKU: NWTGM8QMSSD480
Powerful, Dual Drive RAID 0/1 Performance in a Bus-Powered, Portable Design
- Multi-Interface Hardware RAID-1 (Mirrored) Data Redundant Solution
- Test Certified for HD Video capture and playback of HDV, DVC Pro, and ProRes 422HQ file formats via eSATA and FireWire 800
- Uses two paired (identical) 2.5? SATA type hard disk drives or solid state drives up to 9mm tall
- LCM display menu provides convenience of drive and system status
- Super quiet operation with a rugged, heat dissipating anodized aluminum enclosure
- Shock resistant design
- Bus powered via FireWire, or use FireWire for power while using an eSATA connection for data.
- 3 Year Newer Technology Limited Warranty
MAXProtect or MAXPerform - Your Choice
NewerTech Guardian MAXimus storage solution provides maximum Plug-and-Play "Live Activity" data backup and protection in a space-saving mini footprint. In the pre-configured MAXProtect mode, Guardian MAXimus mini guards against data loss and costly system downtime by writing the same information in real-time to create a "mirrored" copy of up to 120GB of data. For those seeking faster performance, Guardian MAXimus mini can be easily switched to MAXPerform mode for up to 240GB of high speed performance storage. Whatever your preference, Guardian MAXimus mini offers MAXimum performance, flexibility, and reliability for critical data backup.

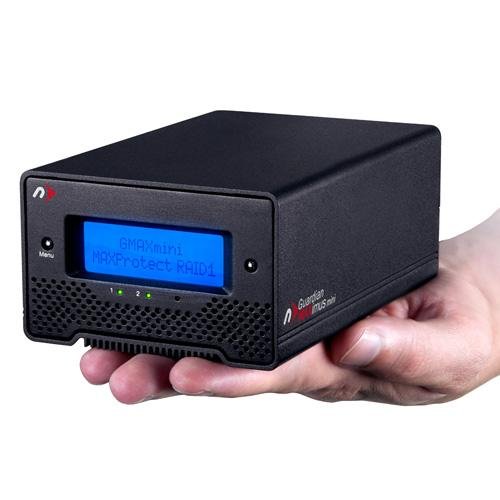

MAXiumum Portability
Guardian MAXimus mini is ready to go wherever your "mobile office" needs take you. Bus-powered (no AC adapter required) and weighing as little as 1.24 pounds, it offers maximum data protection with minimal gear bag bulk. While ultra compact, the Guardian MAXimus mini comes packed with high performance features like dual hard drives or SSDs, data transfer speeds up to 300MB/s, and user conveniences like a front panel LCM screen/control interface for drive and system status monitoring.
Why You Need Guardian MAXimus mini RAID-0, RAID-1
With the RAID-0 striped mode, Guardian MAXimus mini dedicates its drives to maximum performance ensuring you stay working at the highest speeds. In the RAID-1 mode, you get a "live activity" backup of financial records, medical files, business projects...any critical data that you simply cannot risk losing. You're always protected against data loss as the same information is copied in real-time to two separate drives for a "mirrored" copy. You're also protected from costly system downtime and data restoring after a single hard drive-equipped system crash. By having a second, "mirrored" copy, you can keep working and saving until the failed drive is replaced. Best of all? After replacing that drive, the Guardian MAXimus mini automatically rebuilds the "mirror" by copying all the data to the new drive!
- The actual total capacity will depend on your own defined file settings/preferences. 1GB = 1,000,000,000 bytes. Total accessible capacity. varies depending upon operating environment (typically 5-10% less). The above capacity specifications are based on the factory default configuration of RAID 1. If the RAID 0 configuration is set, capacities are doubled.
- 1MB per 2.4 megapixel JPEG photo - low resolution
- DVD Quality Digital Video at a 2.597GB/hour data rate
Includes
Back to top
- (1) NewerTech Guardian MAXimus mini storage solution
- (1) High Quality Double Shielded eSATA connecting cable
- (1) High Quality Double Shielded FireWire 800 connecting cable (9-9 Pin cable)
- (1) High Quality Double Shielded USB 2.0/1.1 connecting cable
- (1) UL Listed U.S./International Auto Switching 100 ~ 240v, 50/60Hz input, 12Volt 2 Amp output Power Supply (adapter plugs for International use sold separately)
- (1) Guardian MAXimus mini Manual
- 3 Year Newer Technology Limited Warranty
Need an additional power supply? Secondary/replacement power supplies are also available.
Specs
Back to top
Drive Bays
- 2 bays
Capacity
- 240GB + 240GB
Plug and Play
- Yes
Drive Format
- Included Drive Guide Software will format drive for either OS X, or Windows
Storage Interface
- SATA
RAID Capable
- Yes
Default RAID Level
- RAID 1
RAID Levels Supported
- RAID 1
- RAID 0
RAID Features
- Hardware RAID
Device Ports
- (1) USB 2.0 Port
Chipset / Controller
- Oxford 936DS
Mac OS Compatibility
- Mac OS 8.6
- Mac OS 9.0
- Mac OS 9.1
- Mac OS 9.2
- Mac OS X 10.0 Cheetah
- Mac OS X 10.1 Puma
- Mac OS X 10.2 Jaguar
- Mac OS X 10.3 Panther
- Mac OS X 10.4 Tiger
- Mac OS X 10.5 Leopard
- Mac OS X 10.6 Snow Leopard
- Mac OS X 10.7 Lion
- Mac OS X 10.8 Mountain Lion
- OS X 10.9 Mavericks
- OS X 10.10 Yosemite
- OS X 10.11 El Capitan
- macOS 10.12 Sierra
PC OS Compatibility
- Windows 2000
- Windows ME
- Windows XP
- Windows XP 64-bit Edition
- Windows XP Professional x64 Edition
- Windows Vista
- Windows 7 32-bit Edition
- Windows 7 64-bit Edition
- Windows 8 32-bit Edition
- Windows 8 64-bit Edition
- Windows 8.1 32-bit Edition
- Windows 8.1 64-bit Edition
- Windows 10 32-bit Edition
- Windows 10 64-bit Edition
- Windows Server 2019
- Windows Server 2022
- Windows 11
Other OS Compatibility
- Linux supported via USB and FireWire interfaces
Other Requirements
- Mac OS X 10.2 or later required for FireWire 800 and USB 2.0
- Windows 2000 or later required for FireWire 800
- Time Machine Compatible: Mac OS X 10.5 (version introduced) and later
External Power Adapter
- Yes
Power Supply
- External power supply
- Need an additional power supply? Secondary/replacement power supplies are also available.
Replacement Adapter Part Number
- OWCMEP2BAYM15 (sold separately)
Security Slot
- No
Power Button
- Yes
Power/Activity LED
- Yes
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 5.3 cm (2.1 in)
- Length: 13.2 cm (5.2 in)
- Width: 8.9 cm (3.5 in)
Weight
- 570.0 g (1.26 lbs)
Reach Certification
- Yes
Ambient Temperature
- Operating: 41°F to 131°F (5°C to 55°C)
- Non-Operating: -40°F to 149°F (-40°C to 65°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 5% to 95% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: 65 G max at 2 ms
- Non-Operating: 175 G max at 2 ms
Benchmarks
Back to top
Truth in Numbers: Another OWC Difference
There are many attributes that define “The OWC Difference.” By listing real-world performance tests of OWC solutions, we’re confident you’ll be completely satisfied with your technology investment.
macOS RAID 0 Test Results

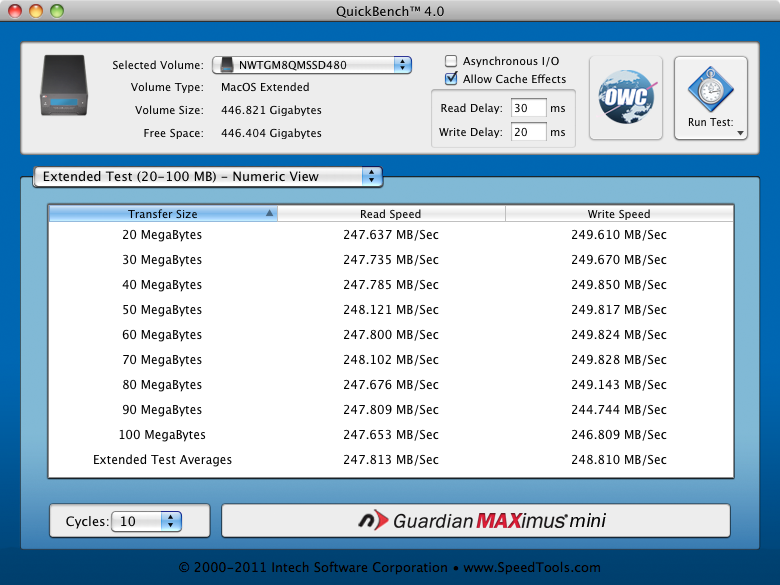

QuickBench
eSATA

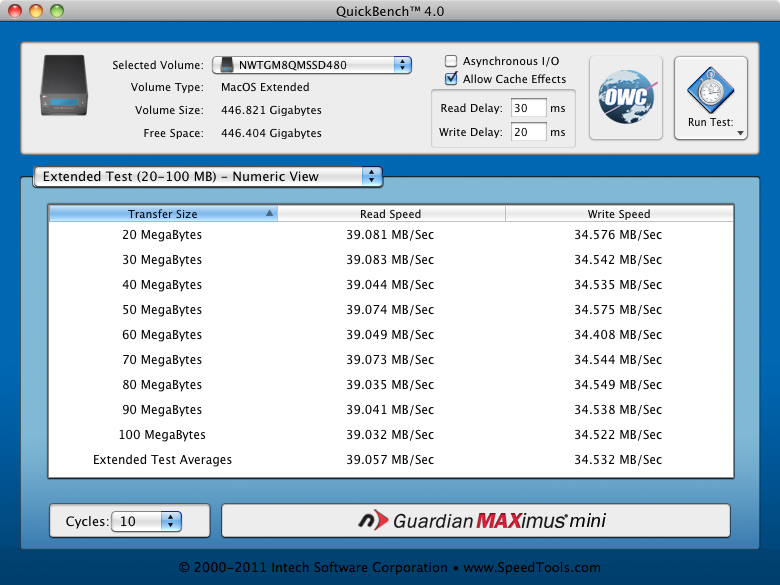

QuickBench
FireWire 400

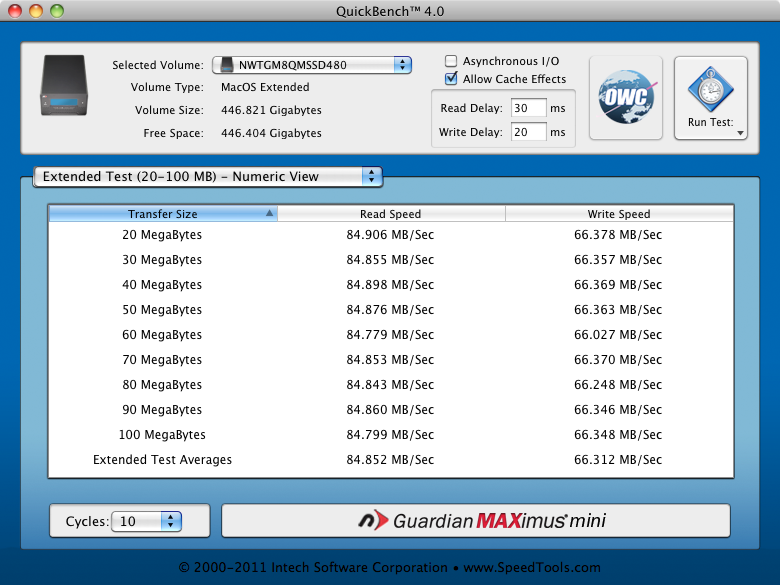

QuickBench
FireWire 800
QuickBench
USB 2.0

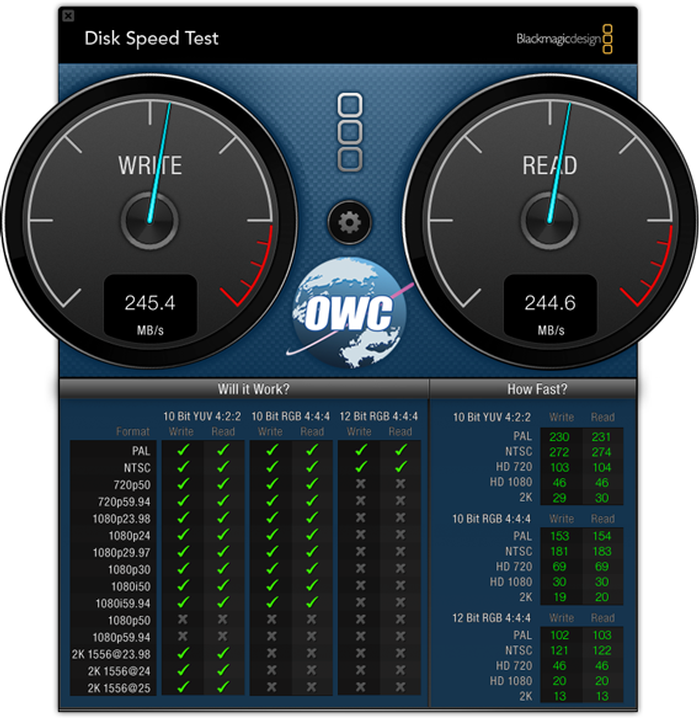

Blackmagic Disk Speed Test
eSATA

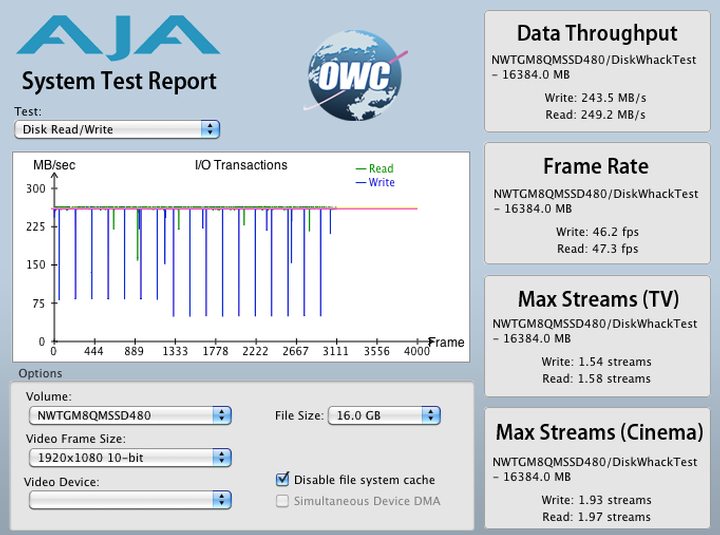

AJA System Test
eSATA
macOS RAID 1 Test Results
QuickBench
eSATA

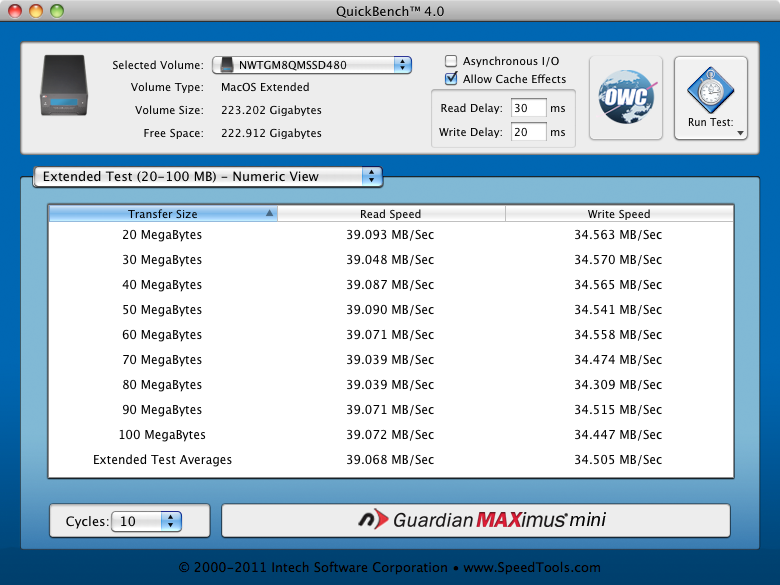

QuickBench
FireWire 400
QuickBench
FireWire 800
QuickBench
USB 2.0

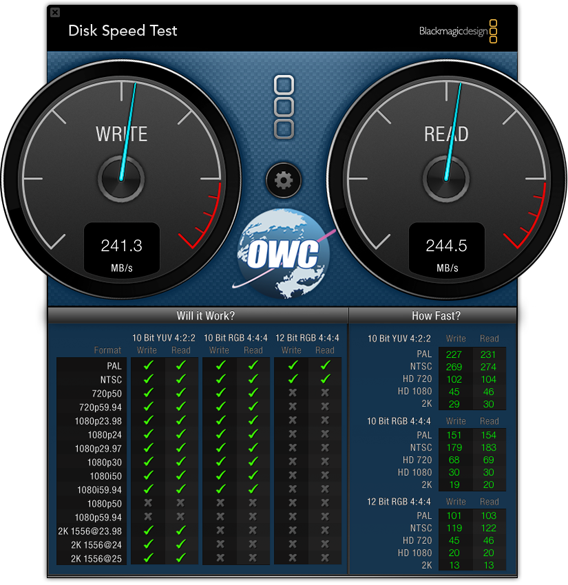

Blackmagic Disk Speed Test
eSATA

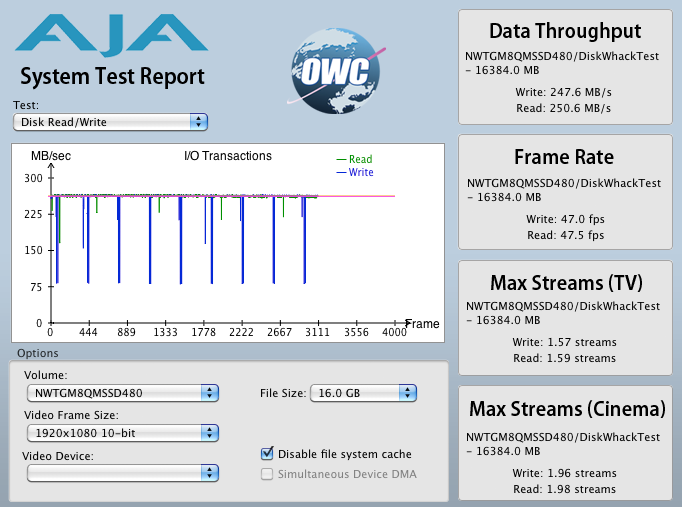

AJA System Test
eSATA
