| Description: | Ships: | Price: |
|---|---|---|
| 60GB OWC Mercury ZIF Parallel-ATA Solid State Drive for Early 2008 MacBook Air. 64MB Cache. 2 year OWC warranty. (OWCSMBAZIF60) | Same Day | $159.99 |
|
|
OWC
60GB ZIF Solid State Drive
1.8" IDE/ATA (PATA) SSD
for Early 2008 MacBook Air
A Complete Two-In-One Performance & Capacity Upgrade
If you own the original Early 2008 MacBook Air (Model ID: MacBookAir1,1) and are seeking a performance boost, more capacity than what the factory drive offers, or want both gains, the OWC ZIF SSD has all your needs covered.
With speeds up to 88MB/s and three SSD capacity choices – 30/60/120GB – for up to 87.5%* more internal storage space than the factory drive, the OWC ZIF drive delivers a one-two upgrade knockout punch that's lighter on your wallet than buying a brand new machine.

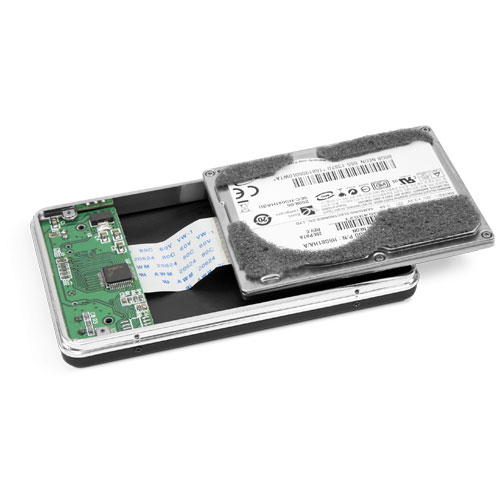

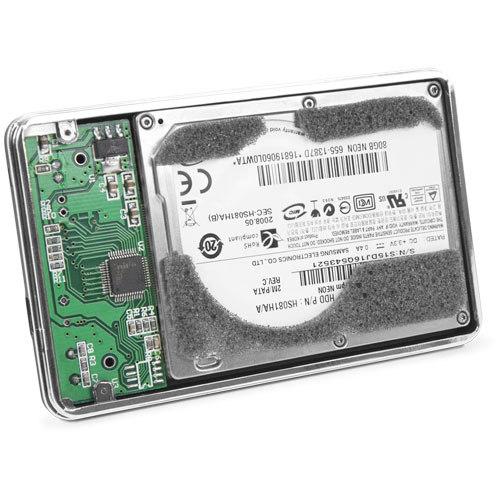

Plus, thanks to the value and innovation OWC is known for, a USB 2.0 enclosure and cable are included for retasking the original factory drive as a "new" external drive!
*Compared to 64GB factory SSD. Up to 50% more capacity compared to 80GB 4200RPM factory hard drive.
With speeds up to 88MB/s and three SSD capacity choices – 30/60/120GB – for up to 87.5%* more internal storage space than the factory drive, the OWC ZIF drive delivers a one-two upgrade knockout punch that's lighter on your wallet than buying a brand new machine.
Plus, thanks to the value and innovation OWC is known for, a USB 2.0 enclosure and cable are included for retasking the original factory drive as a "new" external drive!
*Compared to 64GB factory SSD. Up to 50% more capacity compared to 80GB 4200RPM factory hard drive.
Highlights
- Up to 87.5%* more internal storage space than the factory drive.
- Speeds up to 88MB/s
- 2 year OWC warranty
*OWC ZIF is compatible with all MacBook Air models with Apple Model Identifier "MacBookAir1,1"
Models with this identifier were produced from early 2008 and until October of 2008.
View how to check your model ID.
The OWC ZIF SSD is compatible with...
Learn how to find your Mac's model ID
The OWC ZIF SSD is not compatible with...
NOT COMPATIBLE
MacBook Air (13-inch Mid 2011)
MacBook Air (13-inch Mid 2011)
(July, 2011)
Model ID: MacBookAir4,2
1.7GHz, 1.8GHz
NOT COMPATIBLE
MacBook Air (13-inch Late 2010)
MacBook Air (13-inch Late 2010)
(October, 2010)
Model ID: MacBookAir3,2
1.86GHz, 2.13GHz
NOT COMPATIBLE
MacBook Air (11-inch Mid 2011)
MacBook Air (11-inch Mid 2011)
(July, 2011)
Model ID: MacBookAir4,1
1.6GHz, 1.8GHz
NOT COMPATIBLE
MacBook Air (11-inch Late 2010)
MacBook Air (11-inch Late 2010)
(October, 2010)
Model ID: MacBookAir3,1
1.4GHz, 1.6GHz
NOT COMPATIBLE
MacBook Air (Mid 2009)
MacBook Air (Mid 2009)
(June, 2009)
Model ID: MacBookAir2,1
1.86GHz, 2.13GHz
NOT COMPATIBLE
MacBook Air (Late 2008)
MacBook Air (Late 2008)
(October, 2008)
Model ID: MacBookAir2,1
1.6GHz, 1.86GHz
Includes
- OWC ZIF Solid State Drive
- USB 2.0 enclosure and USB 2.0 cable
- Screwdriver for installing the new drive into the MacBook Air and the old drive into the supplied USB enclosure
60GB OWC ZIF SSD Specifications:
Specifications
Form Factor
1.8″ MLC flash
Interface
40 pin PATA ZIF
Capacity1
60GB
Formatted Capacity2
55GiB
Cache
64MB
SMART Attributes
Standard
Manufacturer Model Number
OWCSMBAZIF60
Format
Unformatted (Instructions on formatting here)
Physical
Height (max)
5.2mm (0.204″)
Width (max)
54mm (2.125″)
Length (max)
71mm (2.795″)
Weight (typical)
<40g (<0.088 lbs.)
Reliability3
MTBF (Mean Time Between Failures)
>1,000,000
Data Reliability
ECC Recovery: Up to 18 bytes correctable per 512-byte sector
Bit error monitoring and management
Yes
Dynamic and static wear-leveling
Yes
Dynamic bad block management
Yes
Support Auto garbage connection
Yes
Warranty
2 Year OWC Warranty
Performance
Sequential Read (up to)
88MB/s
Sequential Write (up to)
56MB/s
Random 4K Read
Up to 5,200 IOPS
Random 4K Write
Up to 5,200 IOPS
Read Latency
less than 0.1ms
Write Latency
less than 0.1ms
Environmental (Operating)
Shock
1500G / 1.0ms
Temperature (°F)
32°F to 158°F
Temperature (°C)
0°C to 70°C
Vibration
20G
Environmental (Non-Operating)
Shock
1500G / 1.0ms
Temperature (°F)
32°F to 158°F
Temperature (°C)
0°C to 70°C
Vibration
20G
Acoustics
Idle (Typical)
0.0 bels
Seek (Typical)
0.0 bels
- 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
- In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
- Specific application environments such as temperature and duty cycle will affect the overall reliability rates.
