Features and Benefits
- JMicron JMB360 chipset
- Sustained Data Rates:
- Read up to 170MB/Second
- Write up to 120MB/Second
- Compliant with ExpressCard/34 Type II standard
- 1x external SATA II port with 3Gb/s
- Fully plug & play and hot plug supported
- Supports up to 5 disk drives**
- RoHS Certified
- OWC 1 Year Warranty
|
eSATA Specifications
- Supports 1-independent SATA port
- Supports up to five drives via port multiplier
command-based switching technology**
- Supports Native Command Queue (NCQ)
- Data transfer up to 3.0Gbps
- Compliant with Serial ATA II specification
- Backward compatible to Serial ATA I Specification
- Compliant with Gen2i, Gen2m SATA II Electrical Specification Revision 1.0
|
System Requirements:
- MacBook Pro models with ExpressCard/34 slot
Mac OS X 10.4.x*, 10.5.x, & 10.6.x
- Windows Notebook with an ExpressCard/34 or ExpressCard/54 slot
Windows 2000, Server 2003, Server 2008, XP SP2, Vista or Windows 7.
Package includes:

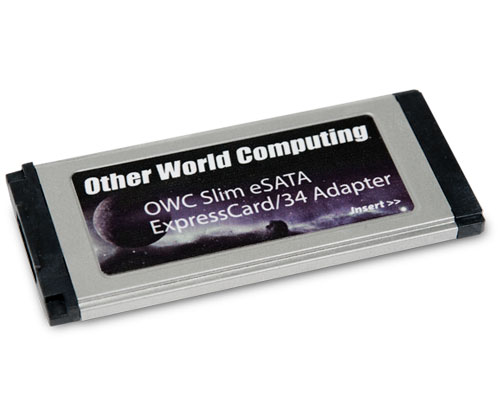

- Slim Expresscard with 1x eSATA port
- User Manual
- CD with Windows drivers
Special notes for Mac users:
- No Drivers are needed for OS X.*
- Bootable in MacBook Pro systems using Core 2 Duo processors
(not bootable with original MacBook Pro Core Duo).
- Port Multiplication not supported.
Special notes for Windows users:
- Plug and play, driverless install on
Windows Vista and Windows 7.
- Drivers for Windows XP and older included on Disc.
- Cannot boot to drives connected through card.
Download Windows & Linux Drivers with Manual
*Under 10.4.x, hot-plugging is not supported. Card and drives must be connected while the computer is turned off.
** Windows only with full driver installation. |
| |
| Click here to get your Model Identifier number |
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
 |
Machines Have Model Identifier MacBookPro1,1
MacBook Pro (15-inch 1.83GHz, 2.0GHz, 2.16GHz)
(January, 2006)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
 |
Machines Have Model Identifier MacBookPro1,2
MacBook Pro (17-inch 2.16GHz)
(April, 2006)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro1,1
MacBook Pro (15-inch 2.0GHz, 2.16GHz)
(May, 2006)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro2,2
MacBook Pro (15-inch 2.16GHz, 2.33GHz)
(October, 2006)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro2,1
MacBook Pro (17-inch 2.33GHz)
(October, 2006)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro3,1
MacBook Pro (15-inch 2.2GHz, 2.4GHz, 2.6GHz)
(June, 2007)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro3,1
MacBook Pro (17-inch 2.4GHz, 2.6GHz)
(June, 2007)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (15-inch 2.4GHz, 2.5GHz, 2.6GHz)
(February, 2008)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (17-inch 2.5GHz, 2.6GHz)
(February, 2008)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (17-inch 2.5GHz, 2.6GHz)
(June, 2009)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
 |
Machines Have Model Identifier MacBookPro8,3
MacBook Pro (17-inch Early 2011, 2.2GHz, 2.3GHz)
(February, 2011)
|
|
| OWC Slim ExpressCard is compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro6,1
MacBook Pro (17-inch 2.53GHz, 2.66GHz, 2.8GHz)
(April, 2010)
|
|
| OWC Slim ExpressCard is not compatible with the following MacBook Pro model: |
 |
Machines Have Model Identifier MacBookPro5,1
MacBook Pro (15-inch 2.4GHz, 2.53GHz, 2.66GHz, 2.8GHz, 2.93GHz)
(October, 2008/ March, 2009)
|
|
| OWC Slim ExpressCard is not compatible with the following MacBook Pro model: |
 |
Machines Have Model Identifier MacBookPro5,2
MacBook Pro (17-inch 2.66GHz, 2.93GHz)
(January, 2009)
|
|
| OWC Slim ExpressCard is not compatible with the following MacBook Pro model: |
|
Machines Have Model Identifier MacBookPro5,2
MacBook Pro (17-inch 2.8GHz, 3.06GHz)
(June, 2009)
|
|
|
| |
| Reviews, Awards and Customer Comments
|
| |
|

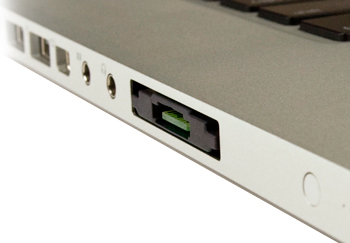

The OWC Slim ExpressCard to eSATA Adapter fits flush inside
your ExpressCard slot. |
 |
|
|
