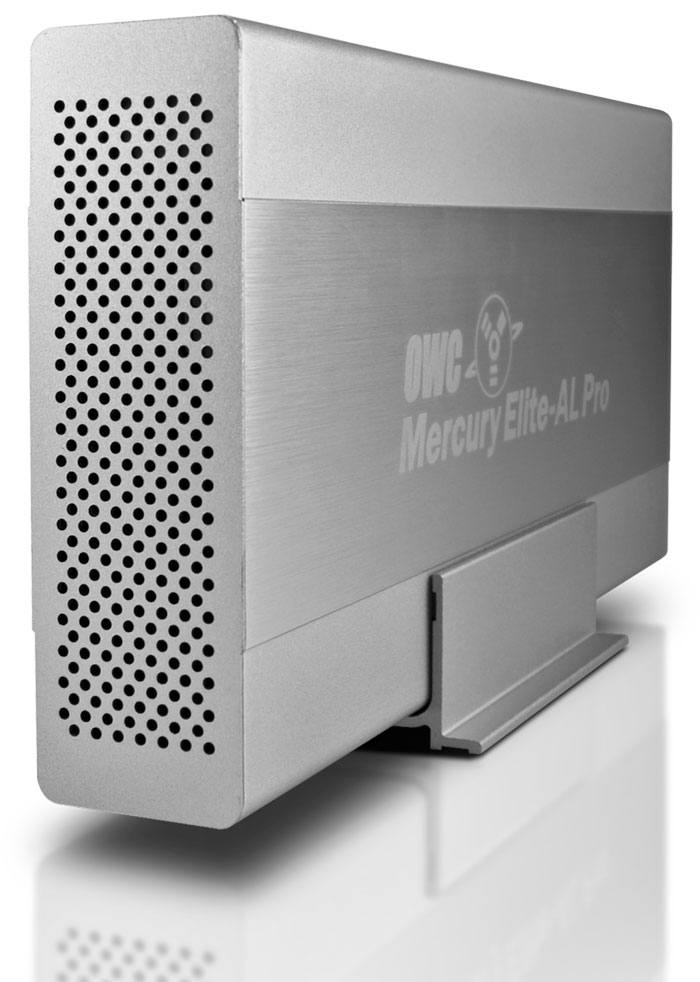

OWC Mercury Elite-AL Pro 'Quad Interface'
FireWire 800/400 + USB2 2.0 + eSATA
Combo Storage Solutions

High Performance, High Reliability, High Portability, and Style are standard
for the OWC Mercury Elite -AL Pro Series!

	Loyd Case of ExtremeTech.com

Outstanding Features:

High Performance: The next-gen High-Speed Oxford 924 chipset combined with the fastest drive mechanisms available give Mercury Elite -AL Pro Solutions the fastest single drive transfer rates possible, exceeding an amazing 80 Megabytes Per Second!

High Reliability: A Top-Notch Design and the Best Components ensure the Mercury Elite -AL Pro Series is Built to Last. The included Two Year Warranty backs this up!

High Portability: The Compact and Shock Resistant Design has the Mercury Elite Series going places! In addition, the Mercury Elite -AL series offers (1) eSATA, (2) FireWire 800(1394B), (1) FireWire 400(1394A) port and (1) USB 2.0+1.1 Port for Easy Plug and Play on virtually ANY
system! Even the cables are included!

Style: Designed to compliment any user's system, the Mercury Elite -AL was created in mind with the Power Macintosh G5 system as a starting point. As the pictures show, it's a fine storage solution for any computer. Also, a blue activity LED compliments the design recessed behind the front grille showing when your drive is being accessed

From day one, the OWC Mercury Elite Series has been designed to be everything you'd hope for and more!

	Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later   Backup Made Easy. Data Backup makes it easy to backup to FireWire and USB drives, network drives, CDs and even DVDs. Make schedules so you don't need to 'think' about backing up... It does it for you. A $59.00 Value, FREE! NovaStor NovaBACKUP® Solution for Windows® NovaBACKUP has been helping millions of users recover from data loss and disasters for over 18 years. Feature rich, NovaBACKUP provides a powerful backup solution. Built-in support for hundreds of the most popular storage devices and a step-by-step backup and restore wizard makes NovaBACKUP extremely easy to use. Requires Windows 2000 and later. A $49.95 Value, FREE! Intech® SpeedTools Utilities™ Intech Hard Disk SpeedTools consists of a suite of utilities managed by an application which controls the launching, documentation and version control of each individual component utility, such as Disk Defrag and QuickBack. An easy-to-use installation and removal application is provided to make installation a snap, yet powerful enough to allow you to customize which utility component set you would like to create. An $89.95 Value, FREE!

Carry and protect your Mercury Elite drive in style with an OWC carrying case!

Its the perfect choice to tote your OWC Mercury Elite around in! Black Cordura Nylon for the ultimate in durability Side pouch for your power supply / FireWire/USB Cables! Only $19.99!!! Click Here for more info...

All OWC Mercury FireWire hard drives are fully compatible with these systems
	Apple OS X 10.1.x and later - including the latest 10.4.x Tiger, Apple Mac OS 8.6 and Later. Mac OS X 10.2.x or later required for FW800 or eSATA Operation. eSATA PCI Card required with some systems.		Windows ME and Later. Windows 2000 or later required for FW800 Operation. eSATA PCI Card required with some systems.

Product Specifications:
Chipset:	Oxford Semiconductor 924 (OXUF924DS)
Interfaces Supported:	eSATA FireWire 800 (1394B) FireWire 400 (1394a) USB 2.0 USB 1.1
Drive Rotation Speed:	7200 RPM
Data Buffer:	32 Megabyte (32,768k)
Port Configuration:	eSATA - 1 port FireWire 800 - (2) 9 pin ports FireWire 400 - (1) 6 pin port USB 2.0/1.1 - (1) 5 pin port
Maximum Data Transfer Rate:	eSATA - 1.5 Gbit/s (or 150 MB/sec) FireWire 800 - 800Mbps (or 100MB/sec) FireWire 400 - 400Mbps (or 50MB/sec) USB 2.0 - 480Mbps (or 60MB/sec) USB 1.1 - 12Mbps (or 1.5MB/sec)
Macintosh System Requirements:	eSATA: Macintosh with eSATA PCI Interface card. eSATA requires Mac OS X 10.2 or later. FireWire 800: Macintosh with FireWire 800 interface, either built in or via 3rd party PCI FireWire 800 card. FireWire 800 requires Mac OS X 10.2 or later. FireWire 400: Macintosh with FireWire 400 interface, either built in or via 3rd party PCI FireWire 400 card. FireWire 400 requires Mac OS 8.6 or later. USB 2.0: Macintosh with USB 2.0 3rd party PCI FireWire interface card running Mac OS 10.1 or later. USB 2.0 requires Mac OS X 10.1 or later. USB 1.1: Macintosh with USB 1.1 interface, either built in or via 3rd party PCI USB 1.1 card. USB 1.1 requires Mac OS 8.6 or later.
Windows System Requirements:	eSATA: Windows system with eSATA PCI Interface, either built in or via 3rd party PCI eSATA card. eSATA requires Windows 2000 or XP. FireWire 800: Windows system with FireWire 800 interface, either built in or via 3rd party PCI FireWire 800 card. FireWire 800 requires Microsoft Windows 2000 or XP. FireWire 400: Windows system with FireWire 400 interface, either built in or via 3rd party PCI FireWire 400 card. FireWire 400 requires Windows ME, 2000 or XP. USB 2.0: Windows system with USB 2.0 interface, either built in or via 3rd party PCI USB 2.0 card. USB 2.0 requires Windows ME, 2000 or XP. USB 1.1: Windows system with USB 1.1 interface, either built in or via 3rd party PCI USB 1.1 card. USB 1.1 requires Windows ME, 2000 or XP.
Software Included:	Intech® Hard Disk SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only) ProSoft Engineering® Data Backup for Mac OS X v10.2.8 or later NovaStor NovaBACKUP® for Windows 2000 or later
Power Supply:	100-240v 50/60hz US/International Auto Switching
External Case Dimensions:	9.3" x 1.4" x 5.6" (237mm x 36mm x 142mm)
Drive Weight (no accessories):	Approximately 3.0 pounds (1.36kg)
Operating Environment:
Temperature:	(operating) 5°C - 55°C (41°F - 131°F) (non-operating) -40°C - 65°C (-40°F - 149°F)
Relative humidity:	(operating) 8% - 90% RH (Non-condensing) (non-operating) 5% - 95% RH (Non-condensing)
Shock:	(operating) 65G 2mS; (non-operating) 175G 2mS
Vibration:	(operating) 1.0G (5 - 300Hz) (non-operating) 5.0G (5 - 500Hz)
MTBF:	More than 500,000 power-on hours
Warranty:	Two Year Repair/Replacement Warranty- In addition to OWC's Warranty, the hard drive mechanism inside this solution has an additional 1 year warranty direct with the manufacturer. Note: Do not disassemble or otherwise open your OWC solution prior to the conclusion OWC's 2 years Warranty period. Doing so will void the remainder of the OWC warranty.
Standard mechanism:	Samsung Spinpoint F1

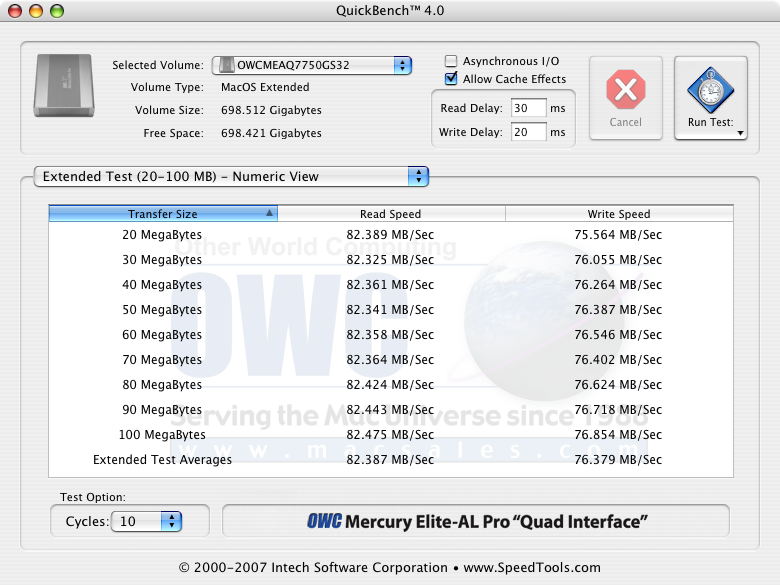

Performance Benchmarks Tested using a Dual 1.25GHz Power Mac G4 (FW800) running Mac OS X 10.4.10

eSATA FireWire 800 (1394B) FireWire 400 (1394A) Click thumbnails for larger view

Other Views:

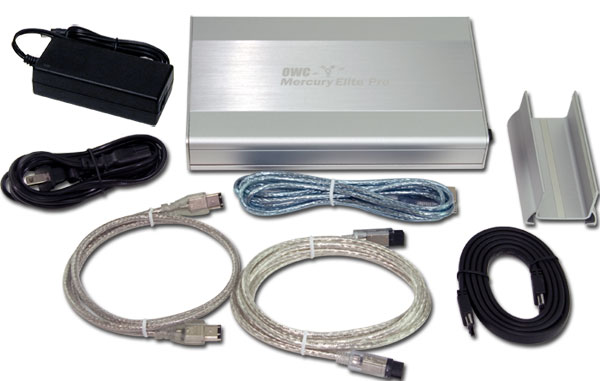

The OWC Mercury Elite-AL Pro 'Quad Interface' includes:
750GB External OWC Mercury Elite-AL Pro "Quad Interface" Drive 36" High Quality Double Shielded eSATA connecting cable 36" High Quality Double Shielded FireWire 800 connecting cable (9-9 Pin cable) 36" High Quality Double Shielded FireWire 400 connecting cable (6-6 Pin cable) 36" High Quality Double Shielded USB 2.0/1.1 connecting cable External AutoSwitching 100/240v 50/60Hz Power Adapter Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only) Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later NovaStor NovaBACKUP® for Windows 2000 or later Over 1.5GB of Freeware/Shareware/Public domain software installed
