OWC MRF82SD22LS Mercury Pro 800/400+USB2+eSATA... in stock at OWC

97 items Checkout / View Cart

Search:

Description:	Ships:	Price:
OWC Mercury Pro FireWire 800/400, USB 2.0, eSATA SuperMulti-Drive up to 22X DVD, 12X DVD Dual Layer, 48X CDRW Burn Speeds, with LightScribe. Fully compatible with Roxio Toast, Apple iDVD, etc! 1yr OWC Warranty. (MRF82SD22LS) Special Offer: Buy Prosoft Drive Genius v3 for only $35 with this qualifying storage item, That's 60% Off Retail! Offer will be shown in basket once this item is added.	Same Day	$99.97 OWC Discounted Price: $97.99

The OWC Mercury Pro Optical Drive Solution is Plug and Play easy. The quad interface design allows you record up to 8.5GB of files, photos, or business documents onto a single dual layer DVD disc via eSATA, FireWire 800, FireWire 400, or USB 2.0 & 1.1.

SATA interface technology allows for easier integration and ultimately faster performance while LightScribe gives you the added feature of etching customized labels onto a special coated LightScribe disc (sold separately).

Supports direct disc labeling. Just burn, flip and burn!
Includes everything you will need to get up and burning with ease!
All connecting cables included!
Get started right away creating and archiving using optical media!
Large Buffer Memory: 4MB
RoHS Compliant

Package Includes
OWC Mercury Pro Quad Interface External DVD Drive 110v US Standard Power Cable 110/240v Auto Switching International Power Supply FireWire 800 (1394b) 9 pin - 9 pin Connecting Cable FireWire 400 (1394a) 6 pin - 6 pin Connecting Cable eSATA connecting cable USB A-B Connecting Cable

Gallery

Specifications

Chipset

Oxford 934DSB

Solution Material

ABS Plastic

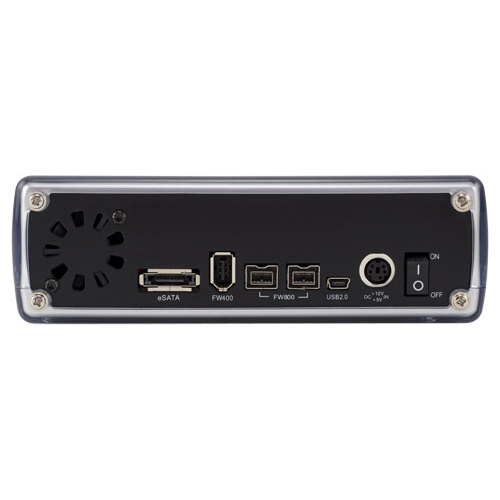

Port Configuration

eSATA - 1 Port
FireWire 800 (1394b) - 2 Ports
FireWire 400 (1394a) - 1 Port
USB 2.0 (1.1 Backwards Compatible) - 1 Port

Max Data Transfer Rate

eSATA - 3.0 Gbit/s (or 300 MB/sec)
FireWire 800 - 800Mbps (or 100MB/sec)
FireWire 400 - 400Mbps (or 50MB/sec)
USB 2.0 - 480Mbps (or 60MB/sec)
USB 1.1 - 12Mbps (or 1.5MB/sec)

Optical Drive Mechanism Specs

Samsung SpeedPlus™ Specs:

General

Drive Type

Internal DVD/CD Writer

Form Factor

5.25" Desktop

Interface

SATA

Loading Mechanism

Tray

Bezel Color

Black

Buffer Memory

1.5MB

Mounting Orientation

Horizontal / Vertical

Manufacturer Model Number

SH-222AL/BEBS

RoHS Compliant

Yes

Physical

Height (max)

42mm (1.65")

Width (max)

148.2mm (5.83")

Length (max)

170mm (6.69")

Weight (typical)

0.75kg (1.65lbs.)

Maximum Read Speeds

DVD-RAM

12X

DVD-R

16X

DVD+R

16X

DVD-R (Dual Layer)

12X

DVD+R (Dual Layer)

12X

DVD-RW

DVD+RW

12X

DVD-ROM

16X

CD-ROM

48X

CD-R

40X

CD-RW

40X

Maximum Write Speeds

DVD-RAM

12X

DVD-R

22X

DVD+R

22X

DVD-R DL

12X

DVD+R DL

16X

DVD-RW

DVD+RW

CD-R

48X

CD-RW

24X

Capacity

Data Capacity

8.5GB : DVD General Use Double Layer
4.6GB : DVD General Use
700MB : 79 minute CD
650MB : 74 minute CD
550MB : 63 minute CD

Disk Labeling

Disc Labeling

Yes

Disc Label Type

Lightscribe

Disc Label Time

20min(Draft mode) - 36min(Best Quality)

Pixel Resolution

600 DPI

Track Resolution

860 TPI

Linear Velocity

0.325 m/sec

Laser Power

40 mW

Label Colors Available

mono, single color

Performance

Access Time

DVD-ROM 150ms typ.
CD-ROM 130ms typ.

Supported Formats

DVD-RAM, DVD+R, DVD+R dual Layer, DVD+RW, DVD-R, DVD-R dual Layer, DVD-RW, DVD-ROM, DVD-Video, CD-R, CD-RW, CD-ROM, CD-ROM/XA, CD-Audio, Video-CD, Photo CD, CD-I (FMV) , CD-Extra, CD-TEXT, LightScribe CD-R,LightScribe DVD+R, LightScribe DVD-R

Reliability

Warranty

1 Year Samsung Warranty

System Requirements

Mac

Compatible with any Mac Pro system with a SATA interface. The 'Woodcrest' or 'Harpertown' Mac Pro uses an IDE interface and is not compatible with this drive.
DVD Player Support:
Mac OS X 10.3 (all versions) - DVD player works perfectly
Mac OS X previous to OS X 10.3 - DVD player not supported
Mac OS 9 or earlier - DVD player not supported

Compatible with any PC system running Windows 2000 or later with a SATA drive interface. Please see your burning software application manufacturer's website for specific support of this drive mechanism.

Environment

Operating Temperature

5° C to 45° C

Non-Operating Temperature

-30° C to 60° C

Operating Humidity

15% to 80% R.H.

Non-Operating Humidity

10% to 90 % R.H.

OWC Notes:

G5 owners replacing a Sony optical drive will need to purchase this additional screw set. The system profiler can tell you if you have a Sony mechanism.

At this time, there is no native support for this drive when using earlier versions of Mac OS X. Patching this drive for support under earlier versions of Mac OS X is possible using Christian Moller's PatchBurn Software.

Requires disabling of hard disk sleep in Mac Pro Systems to prevent drive from disappearing during sleep. To disable hard disk sleep go to the Apple --->System Preferences ---> Energy Saver and uncheck "Put the hard disk(s) to sleep when possible."

Cooling

Fan Cooled

Macintosh System Requirements

FireWire Interface and OS X 10.3 or above
USB 2.0 Interface and OS X (any version)

Windows System Requirements

FireWire Interface and Windows XP SP2 or later.
USB 2.0 Interface and Windows XP SP2 or later.

Linux System Requirements

Linux compatible via supported USB and FireWire interfaces.

Power Supply

110v US Standard Power Cable & 110/240v Auto Switching International Power Supply

External Case Dimensions

6.3 in (W) x 11.3 in (D) x 3.1 in (H)

Enclosure Weight

4 lbs

OWC has tested and qualified the following cards for use with the eSATA interface port on your OWC Mercury Pro Optical Solution:

eSATA Extender Cables for Mac Pro
	Newer Technology eSATA Extender Cable Adapter for Mac Pro (NWTMPQXES2)	PRICE: $19.00 SHIPS: Same Day

PCIe (PCI Express) for Desktops and Towers
	Sonnet Technology Tempo SATA E2P Serial ATA Host Adapter Card (STITSATAIIE2P)	PRICE: $48.79 SHIPS: Same Day
	NewerTech MAXPower eSATA 6G PCIe 2.0 Controller Card (NWTMXPCIE6GS2)	PRICE: $47.99 SHIPS: Same Day
	Firmtek Seritek/2SE2-E PCI Express (PCIe) Serial ATA Adapter (FTKSATA2SE2E)	PRICE: $95.00 SHIPS: Same Day
	DAT Optic PCIe 8x 4 Channel eSATA host adapter (DOIESATAPCIE8)	PRICE: $157.99 SHIPS: Same Day

Operating Environment

Temperature

(operating) 5°C - 55°C (41°F - 131°F)
(non-operating) -40°C - 65°C (-40°F - 149°F)

Relative Humidity

(operating) 8% - 90% RH (Non-condensing)
(non-operating) 5% - 95% RH (Non-condensing)

Shock

(operating) 65G 2mS
(non-operating) 175G 2mS

Warranty

OWC 1 Year Solution Warranty

OWC Notes

Requires disabling of hard disk sleep in Mac Pro Systems to prevent drive from disappearing during sleep.
To disable hard disk sleep go to the Apple --->System Preferences ---> Energy Saver and uncheck "Put the hard disk(s) to sleep when possible."
Drive is Plug & Play Natively supported by Apple iLife, Apple iDVD, etc with Apple OS X 10.4.3 and later Apple OS Versions. If you are using Apple OS X 10.4.2, the latest version 10.4.11 is a free update we recommend installing. if you are using Apple OS 10.3.x 'panther', click (here) for PatchBurn version for 10.3.x support, if you are using Apple OS 10.2.8, click (here) for Pathburn version for 10.2.8 support.
This drive is not supported under Mac OS 9 or earlier.
Linux compatible via supported USB and FireWire interfaces.
