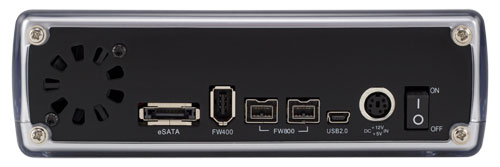

Interface: |
- FireWire 800 (1394b) - 2 Ports
- FireWire 400 (1394a) - 1 Port
- eSATA - 1 Port
- USB 2.0 (1.1 Backwards Compatible) - 1 Port
|
Format: |
External |
Chipset: |
Prolific 3507 |
Mechanism: |
LG Super Multi Blue |
Data Transfer Rate (Read): |
- BD-ROM(SL/DL): 10x / 8x CAV
- BD-R (SL L to H): 6x CAV
- BD-R (SL/DL): 10x / 8x CAV
- BD-RE (SL/DL): 8x / 6x CAV
- BDMV(AACS Compliant Disc): 4.8x CAV
- DVD-ROM(SL/DL): 16x / 12x CAV
- DVD-R (SL/DL): 16x / 12x CAV
- DVD-RW: 12x CAV
- DVD+R (SL/DL): 16x / 12x CAV
- DVD+RW(SL): 12x CAV
- DVD-RAM: 2x, 3x CLV, 5x, 12x PCAV
- DVD-Video (CSS Compliant Disc): 12x / 8x CAV(SL/DL)
- CD-R/RW/ROM: 48x / 40x / 48x
- CAVCD-DA (DAE): 40x CAV
- 80mm: CD 16x CAV
|
Data Transfer Rate (Write): |
- DVD-R: 2x, 4x CLV, 8x ZCLV, 8x, 12x
PCAV, 16x CAV
- DVD-R DL: 2x, 4x CLV, 8x PCAV
- DVD-RW: 1x, 2x, 4x, 6x CLV
- DVD-RAM: 2x, 3x CLV, 5x, 12x PCAV
- DVD+R: 2.4x, 4x CLV, 8x ZCLV, 8x, 12x
PCAV, 16x CAV
- DVD+R DL: 2.4x, 4x CLV, 8x PCAV
- DVD+RW: 2.4x, 4x, 6x CLV, 8x ZCLV
- CD-R: 8x, 16x CLV, 24x, 32x, 40x PCAV,
48x CAV
- CD-RW: 4x, 10x, 16x CLV, 24x ZCLV
|
Access Speed (average): |
- BD-ROM: 180 msec (Typical)
- DVD-ROM: 160 msec (Typical)
- DVD-RAM: 180 msec (Typical)
- CD-ROM: 150 msec (Typical)
|
Buffer Size: |
4MB Under-run prevention function embedded |
Data Capacity: |
- 50GB (Dual Layer Blu-ray Disc) - read only
- 25GB (Blu-ray Disc)- read only
- 8.5GB (Double Layer DVD+R DL Disc, General Use)
- 4.7GB (DVD General Use)
- 700 MB (79 min. disk)
- 650 MB (74 min. disk)
- 550MB (63 min. disk)
|
Loading Mechanism: |
Tray |
Supported Formats: |
- BD-ROM (SL/DL)
- BD-R (SL/DL)
- BD-RE (SL/DL)
- BDMV
- DVD-R
- DVD-RW
- DVD ROM
- DVD-R DL
- DVD-RAM
- DVD-Video
- DVD+R
- DVD+RW
- DVD+R DL
- CD-R
- CD-RW
- CD ROM
- CD-DA (DAE)
|
Recording Modes: |
- DVD-R/RW : Disc at Once, Incremental Recording and Restricted Overwrite
- DVD-R SL : Disc at Once and Incremental Recording
- DVD-R DL : Disc at Once, Incremental Recording and Layer Jump Recording
- DVD-RAM/+RW : Random Write / Disc at Once, Incremental Recording and Restricted Overwrite
- DVD+R : Sequential Recording
- DVD+R DL : Sequential Recording
- CD-R/RW : Disc at Once, Session at Once, Track at Once and Packet Write
|
Lightscribe Label Printing: |
- Pixel Resolution: 600 [DPI]
- Track Resolution: 860 [TPI]
- Linear Velocity: 0.325 [m/sec]
- Laser Power: 40 [mW] as Objective emission light
- Color: Mono, Color BG
|
LightScribe Notes: |
LightScribe requires USB interface (FireWire not supported) and Mac OS X 10.3.9 or later. |
Sustained Transfer Rate: |
- BD-ROM 359.65Mbits/s (10x) max.
- DVD-ROM 22.16Mbits/s (16x)max.
- CD ROM 7,200 kB/s (48x) max.
|
Burst Transfer Rate: |
- 1.5Gbps bits/s (10b side)
- 1.2Gbps bits/s (8b side)
|
Apple OS X Notes: |
Drive is Plug & Play Natively supported by Apple iLife, Apple iDVD, etc with Apple OS X 10.4.3 and later Apple OS Versions. If you are using Apple OS X 10.4.2, the latest version 10.4.11 is a free update we recommend installing. if you are using Apple OS 10.3.x 'panther', click (here) for PatchBurn version for 10.3.x support, if you are using Apple OS 10.2.8, click (here) for Pathburn version for 10.2.8 support. |
Mac OS 9 Notes: |
This drive is not supported under Mac OS 9 or earlier. |
Operating System: |
- Macintosh
- FireWire Interface and OS X 10.3 or above
- USB 2.0 Interface and OS X (any version)
- PC
- FireWire Interface and Windows XP SP2 or later.
- USB 2.0 Interface and Windows XP SP2 or later.
- Linux
- Linux compatible via supported USB and FireWire interfaces.
|
Installation: |
Horizontal |
Case Dimensions: |
10.5"(D) x 7.5"(W) x 2.5"(H)
266.7mm x 190.5mm x 63.5mm |
Warranty: |
1 Year OWC Warranty
 |
