60GB OWC Mercury Legacy Pro

We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives & SSDs items available.

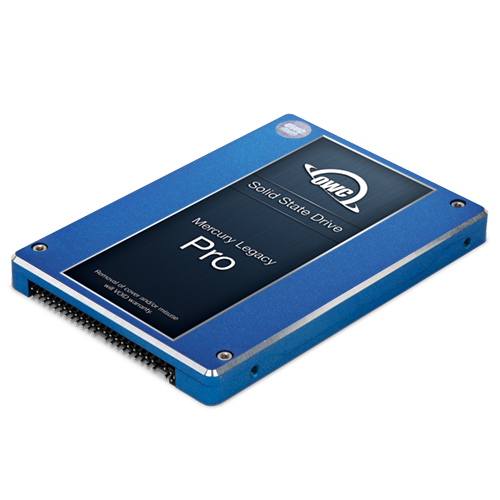

60GB OWC Mercury Legacy Pro

2.5-inch 7mm IDE/ATA Solid-State Drive

Mfr P/N: SSDMLP060 OWC SKU: OWCSSDMLP060

60GB OWC Mercury Legacy Pro

The Fastest Drive Upgrade Available For Yesterday's Macs and PCs.

  • One of the fastest Internal IDE/ATA 2.5? SSDs available.
  • EXTREME Power Efficiency
  • 3 Year OWC Limited Warranty
Reviews (19)
availability
Add a technological supercharger to your existing Mac or PC with the OWC Mercury Legacy Pro SSD. It's the fastest, most reliable IDE/ATA mechanism available to breathe lightning fast performance into that trusty machine and extend its usefulness.
Boot, load apps, and access data nearly instantaneously...tedious system responsiveness is a thing of the past! Enjoy award-winning ultra-efficient Block Management & Wear Leveling technologies that virtually eliminate any speed reduction over long term use of the drive. And with no moving parts to break or fail, the OWC Mercury Legacy Pro SSD offers uncom- mon ruggedness for notebook users with up to 100x greater reliability than traditional hard drives. "Mean Time To Failure" We all know that nothing lasts forever. But that doesn't mean you shouldn't get the most out of your investment. OWC SSD with Durawrite™ Technology optimizes writes to the flash memory over conventional controllers, increasing the overall endurance and reliability of the complete SSD. Highly intelligent block management and wear leveling also extends the overall endurance. With this technology, even MLC-based SSDs can operate for years in demanding use applications without daily write restrictions. This adds up to a MTTF that is higher than most enterprise class hard drives and SSDs on the market today.
Additionally, as there are no volatile memory elements in this storage device, the need for cache is completely negated. The drive is just that fast from the get-go! Replace your conventional hard drive with a reliable solid state drive. Unlike traditional hard disk drives, OWC solid state drives have no moving parts, resulting in a quiet, cool, highly rugged storage solution that also offers faster system responsiveness.

IncludesIncludes

Back to top
  • (1) OWC Mercury Legacy Pro Solid-State Drive
  • 3 Year OWC Limited Warranty

SpecsSpecs

Back to top

    Capacity

    • 60GB Useable Capacity
    • Total Flash Memory Components: 64GB
    • 4GB Allocated to real-time data redundancy and error correction

    Formatted Capacity

    • 56GiB

    Drive Mechanism

    • (1) 60GB OWC Mercury Aura Pro Solid-state Drive
    • *OWC reserves the right to replace or upgrade to equivalent or better components.

    Drive Format

    Controller

    • SandForce 2181 Series Processor

    NAND Flash Components

    • Tier 1 3x nm Multi-Level Cell (MLC) NAND Flash

    S.M.A.R.T. Attributes

    • Standard attributes supported

    RAID Support

    • Yes

    Form Factor

    • 2.5-inch 9.4mm

    Drive Interface

    • PATA

    Random 4K Read

    • Up to 50,000 IOPS

    Random 4K Write

    • Up to 50,000 IOPS

    Sequential Read (Max)

    • Up to 285 MB/s

    Sequential Write (Max)

    • Up to 275 MB/s

    Read Latency (Max)

    • 100 µs

    Write Latency (Max)

    • 100 µs

    Nonrecoverable Read Errors

    • 1 per 1016 bits read

    MTBF (Mean Time Between Failures)

    • 2,000,000 hours

    TRIM Support

    • Yes

    Error Correction

    • Built-in ECC

    Security

    • Chip Based Data Encryption: 128-bit AES-compliant

    Read Mode (Max)

    • Up to 2.2 Watts

    Write Mode (Max)

    • Up to 2.5 Watts

    Idle Mode (Max)

    • Up to 0.09 Watts

    Dimensions

    • Height: 0.9 cm (0.4 in)
    • Length: 10.0 cm (3.9 in)
    • Width: 7.0 cm (2.8 in)

    Weight

    • 80.0 g (0.18 lbs)

    RoHS Compliant

    • Yes

    Ambient Temperature

    • Operating: 32°F to 158°F (0°C to 70°C)
    • Non-Operating: -40°F to 185°F (-40°C to 85°C)

    Altitude

    • Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
    • Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

    Idle (Typical)

    • 0.0 bels

    Seek (Typical)

    • 0.0 bels

    Compatibility & Installation VideosCompatibility & Installation Videos

    Back to top

    PowerBook

    How to find your Mac’s Model ID info
    PowerBook G4 Aluminim 17-inch
    PowerBook G4 Aluminim 17-inch
    Late 2005
    Model ID: PowerBook5,9
    1.7GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Aluminim 15-inch
    PowerBook G4 Aluminim 15-inch
    Late 2005
    Model ID: PowerBook5,8
    1.7GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Aluminim 12-inch
    PowerBook G4 Aluminim 12-inch
    Early 2005
    Model ID: PowerBook6,8
    1.5GHz PowerPC G4
    Detailed Specs
    PowerBook G4 Aluminim 17-inch
    PowerBook G4 Aluminim 17-inch
    Early 2005
    Model ID: PowerBook5,7
    1.7GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Aluminim 15-inch
    PowerBook G4 Aluminim 15-inch
    Early 2005
    Model ID: PowerBook5,6
    1.5GHz PowerPC G4 & 1.7GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Aluminim 12-inch
    PowerBook G4 Aluminim 12-inch
    Early 2004
    Model ID: PowerBook6,4
    1.3GHz PowerPC G4
    Detailed Specs
    PowerBook G4 Aluminim 17-inch
    PowerBook G4 Aluminim 17-inch
    Early 2004
    Model ID: PowerBook5,5
    1.5GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Aluminim 15-inch
    PowerBook G4 Aluminim 15-inch
    Early 2004
    Model ID: PowerBook5,4
    1.3GHz PowerPC G4 & 1.5GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Aluminim 12-inch
    PowerBook G4 Aluminim 12-inch
    Late 2003
    Model ID: PowerBook6,2
    1.0GHz PowerPC G4
    Detailed Specs
    PowerBook G4 Aluminim 17-inch
    PowerBook G4 Aluminim 17-inch
    Late 2003
    Model ID: PowerBook5,3
    1.3GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Aluminim 15-inch
    PowerBook G4 Aluminim 15-inch
    Late 2003
    Model ID: PowerBook5,2
    1.0GHz PowerPC G4 & 1.2GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Aluminim 12-inch
    PowerBook G4 Aluminim 12-inch
    Early 2003
    Model ID: PowerBook6,1
    867MHz PowerPC G4
    Detailed Specs
    PowerBook G4 Aluminim 17-inch
    PowerBook G4 Aluminim 17-inch
    Early 2003
    Model ID: PowerBook5,1
    1.0GHz PowerPC G4
    Detailed SpecsInstall Videos
    PowerBook G4 Titanium
    PowerBook G4 Titanium
    Late 2002
    Model ID: PowerBook3,5 & PowerBook3,4 & PowerBook3,3 & PowerBook3,2
    1.0GHz PowerPC G4 & 867MHz PowerPC G4 & 667MHz PowerPC G4 & 800MHz PowerPC G4 & 550MHz PowerPC G4 & 400MHz PowerPC G4 & 500MHz PowerPC G4
    Install Videos
    PowerBook G3 Pismo
    PowerBook G3 Pismo
    Early 2000
    Model ID: PowerBook3,1
    400MHz PowerPC G3 & 500MHz PowerPC G3
    Detailed Specs

    iBook

    How to find your Mac’s Model ID info
    iBook G4 (12-inch, Mid 2005)
    iBook G4 (12-inch, Mid 2005)
    Mid 2005
    Model ID: PowerBook6,7
    1.3GHz PowerPC G4
    Detailed Specs
    iBook G4 (14-inch, Mid 2005)
    iBook G4 (14-inch, Mid 2005)
    Mid 2005
    Model ID: PowerBook6,7
    1.4GHz PowerPC G4
    Detailed Specs
    iBook G4 (12-inch, Late 2004)
    iBook G4 (12-inch, Late 2004)
    Late 2004
    Model ID: PowerBook6,5
    1.2GHz PowerPC G4
    Detailed Specs
    iBook G4 (14-inch, Late 2004)
    iBook G4 (14-inch, Late 2004)
    Late 2004
    Model ID: PowerBook6,5
    1.3GHz PowerPC G4
    Detailed Specs
    iBook G4 (12-inch, Early 2004)
    iBook G4 (12-inch, Early 2004)
    Early 2004
    Model ID: PowerBook6,5
    1.0GHz PowerPC G4
    Detailed Specs
    iBook G4 (14-inch, Early 2004)
    iBook G4 (14-inch, Early 2004)
    Early 2004
    Model ID: PowerBook6,5
    1.0GHz PowerPC G4 & 1.2GHz PowerPC G4
    Detailed Specs
    iBook G4 (14-inch, Late 2003)
    iBook G4 (14-inch, Late 2003)
    Late 2003
    Model ID: PowerBook6,3
    1.0GHz PowerPC G4
    Detailed Specs
    iBook G4 (12-inch, Late 2003)
    iBook G4 (12-inch, Late 2003)
    Late 2003
    Model ID: PowerBook6,3
    800MHz PowerPC G4
    Detailed Specs
    iBook G4 (14-inch, Late 2003)
    iBook G4 (14-inch, Late 2003)
    Late 2003
    Model ID: PowerBook6,3
    933MHz PowerPC G4
    Detailed Specs
    iBook G3 (12-inch, Early 2003)
    iBook G3 (12-inch, Early 2003)
    Early 2003
    Model ID: PowerBook4,3
    800MHz PowerPC G3 & 900MHz PowerPC G3
    Detailed Specs
    iBook G3 (14-inch, Early 2003)
    iBook G3 (14-inch, Early 2003)
    Early 2003
    Model ID: PowerBook4,3
    900MHz PowerPC G3
    Detailed Specs
    iBook G3 (12-inch, Late 2002)
    iBook G3 (12-inch, Late 2002)
    Late 2002
    Model ID: PowerBook4,3
    700MHz PowerPC G3 & 800MHz PowerPC G3
    Detailed Specs
    iBook G3 (14-inch, Late 2002)
    iBook G3 (14-inch, Late 2002)
    Late 2002
    Model ID: PowerBook4,3
    800MHz PowerPC G3
    Detailed Specs
    iBook G3 (12-inch, Mid 2002)
    iBook G3 (12-inch, Mid 2002)
    Mid 2002
    Model ID: PowerBook4,3
    600MHz PowerPC G3 & 700MHz PowerPC G3
    Detailed Specs
    iBook G3 (14-inch, Mid 2002)
    iBook G3 (14-inch, Mid 2002)
    Mid 2002
    Model ID: PowerBook4,3
    700MHz PowerPC G3
    Detailed Specs
    iBook G3 (14-inch, Early 2002)
    iBook G3 (14-inch, Early 2002)
    Early 2002
    Model ID: PowerBook4,2
    600MHz PowerPC G3
    iBook G3 (12-inch, Late 2001)
    iBook G3 (12-inch, Late 2001)
    Late 2001
    Model ID: PowerBook4,1
    500MHz PowerPC G3 & 600MHz PowerPC G3
    Detailed Specs
    iBook G3 (12-inch, Mid 2001)
    iBook G3 (12-inch, Mid 2001)
    Mid 2001
    Model ID: PowerBook4,1
    500MHz PowerPC G3
    Detailed Specs
    iBook G3 (12-inch, Late 2000)
    iBook G3 (12-inch, Late 2000)
    Late 2000
    Model ID: PowerBook2,2
    366MHz PowerPC G3 & 466MHz PowerPC G3
    Detailed Specs
    iBook G3 (12-inch, Early 2000)
    iBook G3 (12-inch, Early 2000)
    Early 2000
    Model ID: PowerBook2,1
    366MHz PowerPC G3
    Detailed Specs
    iBook G3 (12-inch, Mid 1999)
    iBook G3 (12-inch, Mid 1999)
    Mid 1999
    Model ID: PowerBook2,1
    300MHz PowerPC G3
    Detailed Specs

    Mac mini

    How to find your Mac’s Model ID info
    Mac mini (Late 2005)
    Mac mini (Late 2005)
    Late 2005
    Model ID: PowerMac10,2
    1.3GHz PowerPC G4 & 1.5GHz PowerPC G4
    Detailed SpecsInstall Videos
    Mac mini (Early 2005)
    Mac mini (Early 2005)
    Early 2005
    Model ID: PowerMac10,1
    1.2GHz PowerPC & 1.4GHz PowerPC G4
    Detailed SpecsInstall Videos

    PC Compatible

    PC Compatible
    PC Compatible

    reviewsCustomer Reviews

    Back to top
    4.84 out of 5

    19 out of 19 (100%) reviewers would recommend this product

    Write a Review
    5-Star
    4-Star
    3 star
    2 star
    1 star
    84%
    16%
    0%
    0%
    0%
    Win-Win Upgrade

    Mac Mini HD was failing in my PPC Mini. Decided to upgrade from HD to SSD. Couldn't be happier after two+ years (still under warranty!)

    I would recommend this product to a friend!

    Verified Purchase
    Verified PurchaseVerified Purchase.
    Macstheonlyway,
    Dec, 17 2017
    review of: 120GB Mercury Legacy Pro 2.5-inch 9.5mm IDE/ATA Solid-State Drive
    • Reviewer:Macstheonlyway
    • From:Texas
    • Age:Over 65
    • Experience:Power User
    • Owned Product:over 6 months
    Amazing Legacy SSD

    I use this in my 12" PowerBook G4. It makes the machine absolutely fly now! It was a really simple upgrade too.. everything fit exactly like the original drive. The capacity is twice what the original slow mechanical drive had too!

    I would recommend this product to a friend!

    Verified Purchase
    Verified PurchaseVerified Purchase.
    Chimpur,
    Nov, 26 2017
    review of: 120GB Mercury Legacy Pro 2.5-inch 9.5mm IDE/ATA Solid-State Drive
    • Reviewer:Chimpur
    • From:Toronto,On
    • Age:25-34
    • Experience:Power User
    • Owned Product:over 6 months
    Stable and fast

    Good build quality, the right height for my old iBook's innards, enabling it to run silently and fast!

    I would recommend this product to a friend!

    Verified Purchase
    Verified PurchaseVerified Purchase.
    Enkelkind,
    Jul, 2 2017
    • Reviewer:Enkelkind
    • From:Tasmania, Australia
    • Age:45-54
    • Experience:Power User
    • Owned Product:less than a month
