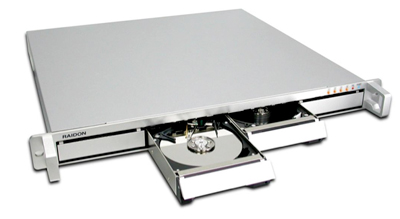

Raidon GearTANK ST7610-4S-U5 (SAS or SATA), 3.5" SATA to eSATA, SwapRack Enclosure, Includes Infiniband Cable. Silver. 2 Year Raidon Warranty. (STST7610-4S-U5)
|
24-48 hrs |
$318.95
|
0GB 4-bay mini-SAS Rack-Mount Drive Enclosure
Mac | PC | mini-SAS | eSATA | 1U | Supports Hot-Swap

The Raidon GearTANK series is designed for simple, multi-drive data storage, making it an affordable option for your high-capacity storage needs. It can function with all the drives appearing independently or, with the addition of a controller card, as an inexpensive RAID unit.
The RAIDON SAS backup data storage solution is a JBOD system that uses SAS (Serial Attached SCSI), the latest generation of SCSI technology. Designed for enterprise users that require stable, high performance and reliable storage devices, it provides a longer service life while maintaining the same level of stability and reliable performance as traditional SCSI technology.
The next incarnation of SCSI technology represented by SAS allows freedom from daisy-chained devices like in past SCSI setups. They are now linked individually through independent SAS or Infiniband cables to the SCSI card. Now when one device malfunctions the rest of the storage system can continue to operate normally, removing the restrictions associated with using a single link. ST7610-4S-U5 can be expanded into a RAID system by RAID card as well. |
 |
|
| Package Includes |
- (1) GearTANK ST7610-4S-U5 Enclosure
- (1) InfiniBand cable
- (1) Accessory bag including keys & screws
- (1) Power Cable
- (1) User Manual (on CD)
|
|
|
| Gallery |
 |
|
| Specifications |
|
| Manufacturer Part Number |
|

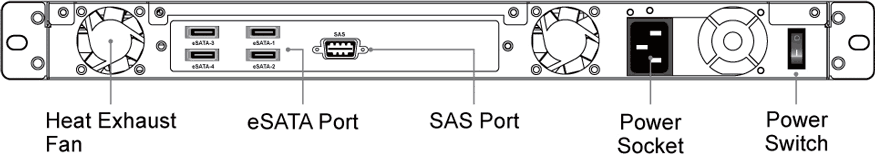

| Host Interface / Ports |
- 1x Mini SAS port (36pin)
- 4x eSATA ports
|
| Compatible Drives |
- 3.5" SATA Revision 2 - 3.0Gb/s hard drive
- 3.5" SATA Revision 1 - 1.5Gb/s hard drive
Supports large volumes in excess of 2TB
|
| Mechanisms Supported |
- Supports four identical 3.5" SATA (Serial ATA) or SAS hard drives up to 2.0TB each.
|
| Drive Rotation Speed |
- Varies with drive mechanisms installed
|
| Drive Cache Size |
- Varies with drive mechanisms installed
|
| Data Transfer Rate |
- mini-SAS up to 6.0Gbps (600MB/s)
- eSATA up to 3.0Gbps (300MB/s)
|
| OS System Requirements |
|
| RAID Levels Supported |
- JBOD (supports higher levels with the addition of a controller card)
|
| Cooling |
|
| Power Supply |
- Input: 100~240V
- Output: 200W
|
| Certifications |
|
| Warranty |
2 Year Raidon/Stardom Warranty |
| Physical |
|
| Temperature |
Operating: 5°C ~ 40°C
Non-Operating: -20°C ~ 70°C |
| Humidity |
Operating: 20%RH ~ 80%RH
Non-Operating: 10%RH ~ 90%RH |
| Dimensions |
43mm x 430mm x 420mm (16.9"x16.5"x1.69") |
| Weight |
7.0 kg (15.4lbs.) |
|
|
