Replay XD
Prime X Professional HD Action Camera
HYPERION CinePrime X Lens

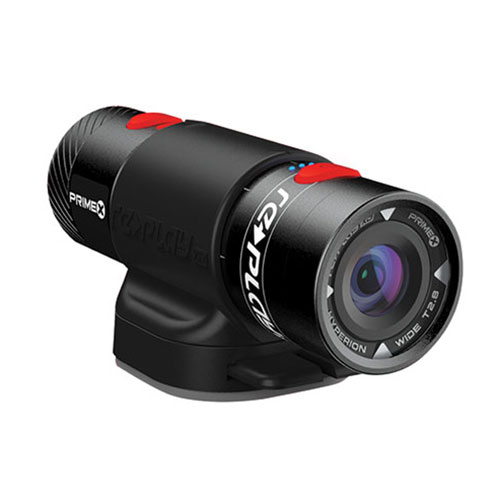

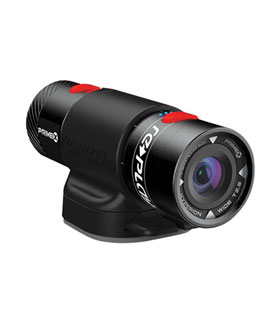

Prime X is a 4th Generation Replay XD HD camera. Through a culmination of 9 years of experience, incredible industrial design, and ingenious engineering, Prime X combines never before seen size, light-weight, power, optics, image sensor, processing, and aerospace-grade materials, all built into an aluminum professional HD camera. Pro users will love the Prime X's beautiful and sharp high quality image, advanced features including Wi-Fi, superior craftsmanship, and Replay XD's trademarked settings and simplicity that allow the everyday video enthusiast to use Prime X with ease.
True Professional Grade Optics

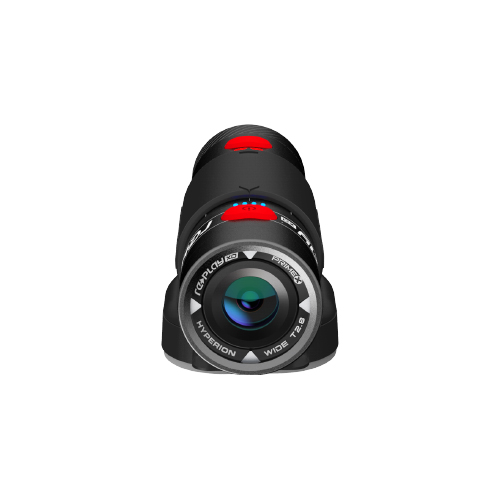

Prime X is the first HD action camera to feature a custom miniprime cinema lens. The Hyperion CinePrime X lens is exclusively designed to be the worlds first 1/2 inch format lens to incorporate a patent pending, aspherical, multi element all-glass design, with SLD elements, CineAR Anti-reflection coatings, and superior chromatic correction, all optimized for a cinematic look and feel. Hyperion CinePrime X Lens is professional grade with a 140° Natural Wide Angle FOV operating at T/2.8, ƒ/2.7, all protected by a new impact resistant glass window, lens cover.
Supercharged
Prime X has been supercharged... aside from optics & image, battery life is the most important function of any camera. Prime X was engineered around an ultra-high capacity, 1700 mAh battery, more than doubling usage up to an outstanding 3.5 hours on a single charge. That's 200% more battery life than most competitors and lasts long enough to use all day for most stop and go activities. Prime X is microSDXC compatible up to 128GB allowing for extended recording sessions.
iOS / Android App
Quickly control and adjust advanced settings on the Prime X with your iOS or Android device. The Replay XD app lets you do more then ever. Start/Stop recording, LiveView your shots, share videos with the world, and more – all from one familiar place. Frame your shot like a professional with Rule of Thirds or Spot & Level grid and replay your footage after you're done recording. Enable true professional features to fine tune the image: Bitrate, Exposure Control, Exposure Metering, Adjustable White Balance, Contrast Adjustment, Sharpness Adjustment, Saturation Adjustment, Mic Audio Gain Control, Date and Time Adjustment, Slow Motion, Time Stamp and much more. You can also switch Prime X to One-Touch mode for one button recording or Auto Power Start Stop mode for triggered recording and constant charging with any RePower kits.
Highlights
- New Raised Power Level & Record LED Indicators
- New Lower Profile and Wider Buttons
- New FOV Button, Wide & Narrow FOV Option
- New Glass Window, Lens Cover
- Improved User Interface, with fewer button presses
- New Laser Markings for Quick Alignment
- Same Renowned Vibration Feedback
- Replay XD 180 Day Limited Warranty
Clearly a Standout in its Class
Replay XD is known for producing some of the smallest and lightest Full HD cameras by mounted volume, without sacrificing professional-grade features. Prime X is no exception, weighing only 3.5 ounces total and measuring in at just 30mm x 98mm, all of which includes the new CinePrime X lens, 16MP CMOS sensor, 1700 mAh battery, Wi-Fi, and a powerful image processor, that puts the Prime X at the top of its class.
Elegant Design

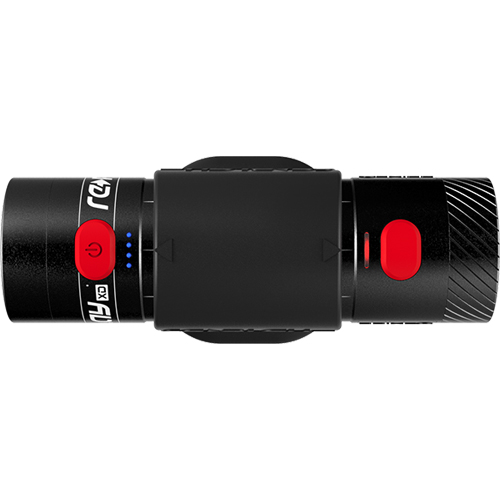

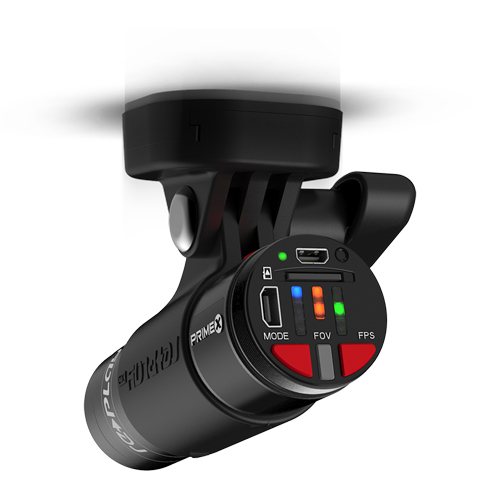

Resolutions and frame rates are simple to adjust through the rear multicolor LED panel. Pick your setting once and replace the waterproof cap, it's that simple. The Power and Record buttons are on the top and only need one simple touch. Power on/off, start/stop recording provides vibration feedback to let you intuitively know the cameras status, great for noisy environments. Prime X remembers the previously used setting and saves it for quick use next time.
Mount Prime X Anywhere

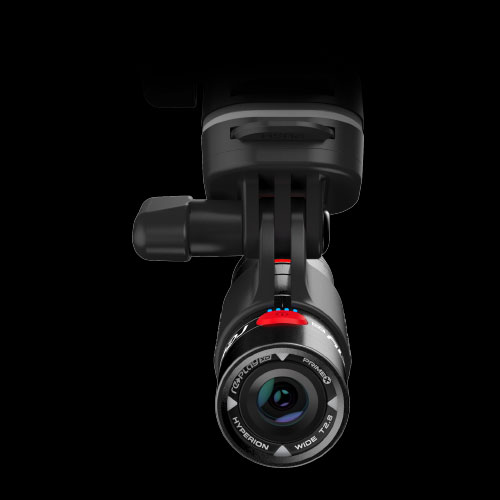

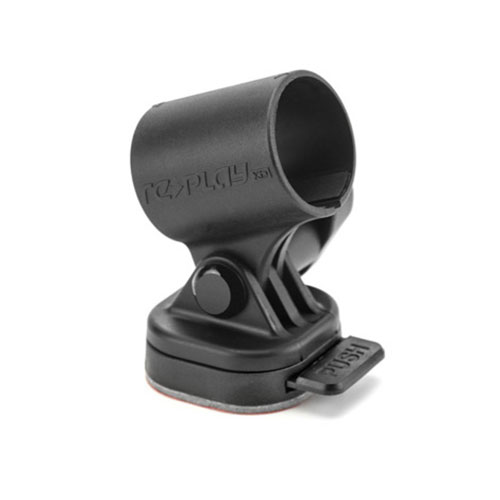

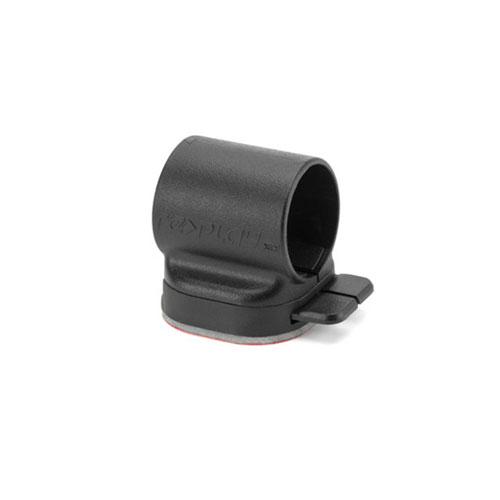

Mounting Prime X anywhere is easy as no other camera maker gives you over 1 Million finite mounting positions right out of the box. Prime X can be mounted and adjusted quickly due to its small form-factor and infinitely round housing. There are two mounts included with each system, a LowBoy mount, and a Tilt mount, with one Flat SnapTray, one Curved SnapTray, and one Tripod SnapTray to get you recording in no-time. The mounts feature new quick-release tabs that have been extended allowing you to get more leverage on the camera for easier removal and placement.
Waterproof
Prime X is waterproof up to 3 Meters / 10 Feet, so no need for a separate waterproof case for most activities. Water-tight, o-ring seals are used throughout the advanced aluminum housing to ensure water and other elements stay out while you Record.
Authentic Sound
Internal Audio: Replay XD's extreme environment experience has helped them to develop, engineer, and test the right combination of acoustic materials and microphones to suppress wind noise yet still capture realistic audio. Prime X can capture audio from fine dialogue to 8,000 horsepower screaming engines.
External Audio: For critical audio applications Replay XD has built in an External Audio option to connect high quality Lav Mics, Ext. Audio sources, or other In-car Radio Communication through a standard 3.5mm Mini-jack adapter.
HDMI LiveView
Prime X provides uncompressed HDMI output at 1080p60 or 1080i60, a Replay XD standard that has been utilized to record and stream video simultaneously to popular external HD recorders and transmitters. Combine Prime X with our accessory RePower connection kit to reliably power and stream from rugged environments, fixed location points, or even from FPV applications.
Product Specifications:
Replay XD Part Number
Display
Removeable Storage
- microSDXC Compatible
- 4GB micro SDHC Included
- Class 10 or UHS recommended
Ports
- Micro HDMI Output
-Live HD 1080p60 Video Streaming
-HD Video & Photo Playback, Thumbnail Display, Play/Stop, Skip Forward/Reverse, Menu On/Off
-3.5 mm Aux Audio Line-In with adapter
- Standard Mini USB
-Charge and Sync
-Composite Video Out
- microSDXC slot
- Backwards compatible with microSD, microSDHC
Housing
- Durable Aluminum Housing
-Black Anodized
-Round for 360° Mounting Rotation
-Impact Resistant
- Black with Laser Etched Logos
-Easy Alignment
-Discrete Placement
- O-ring Sealed
-Front and Rear Bezel
-Low profile Exterior Buttons
- Waterproof 3 m (10 ft)
Wi-Fi
- Free iOS and Android App
-Live Video preview to App
-Record and Camera control functions
-Advanced settings control
-Playback, copy videos and photos to your device and share them with Facebook, Instagram, and YouTube
-Delete photos and videos on the cameras memory card
Control
- On Top
Power button: "On/Off", "Record, Stop, Playback, Clip File" Buttons with Vibration Feedback
- On the Back
Mode button:
-1080P, (1200P), 720P, (960P), Photo
-Mass Storage Device Mode
- FPS button:
-Video 120 fps, 60 fps, 30 fps,
-Photo Manual Shutter, 3, 5, 15, 30 Sec.
-LiveView UI On/Off
- FOV button:
-Video Mode, Super Wide 140°, Wide 116°, Narrow 70°
-Photo Mode, 16MP, 14MP, 12MP
Photo Mode
- 16 MP JPEG Photo 4608 x 3456
- 14 MP JPEG Photo 4608 x 3072
- 12 MP JPEG Photo 4608 x 2592
-Manual Shutter, Time-lapse Photo per 3, 5, 15, 30 sec
-Burst Mode, and Custom time-lapse duration available in Advanced Settings
Video Settings
- H.264 Codec, Quicktime .mp4 file type
- HD Playback, HD LiveView
- Bitrate Adjustment: High, Medium, Low
- Exposure Control EV Adjustment
- Auto Exposure Metering: Center, Average, Spot
- Automatic White Balance
- White Balance Presets
- Contrast Adjustment
- Sharpness Adjustment
- Saturation Adjustment
- Date and Time Stamp
- Frame Per Second Control
Video Resolution
- 16 MP (4608 x 3456) CMOS Sensor
- 1920 x 1080, up to 60 fps
- 1600 x 1200, up to 60 fps
- 1280 x 960, up to 60 fps
- 1280 x 720, up to 120 fps
- 848 x 480, up to 240 fps
- 640 x 480, up to 240 fps
- NTSC 60/30, PAL 50/25, Cinema 48/24
- LiveView HDMI Output 1080p60, 1080p50
Optics
- Hyperion CinePrime X Lens
- T2.8 / ƒ/2.7 Natural Wide Angle
- 140 Degrees @ 1080P, 960P, 720P, Photo
- 116 Degrees, Available most resolutions
- 70 Degrees, Available most resolutions
- FOV: Superwide 140°, Wide 116°, Narrow 70°
- 2x Better Lowlight Sensitivity
- 1.3V/lux-sec Light Sensitivity
Power Supply
Power
- Rechargeable Internal 1700mAh* Li-ion Battery
- Up to 210 min (3.5 hr) Record Time*
Dimensions
Weight
Warranty
Manufacturer provided specifications for Replay XD p/n 01-PRIMEX-CS
System Requirements
Minimum System Requirements (Mac)
- Mac OS X 10.7 and later
- USB 2.0 Port, Mouse
- VRAM 1GB
- RAM 4GB
Minimum System Requirements (PC)
- Windows® 7 and later
- 1920 x 1080 screen resolution
- USB 2.0 Port, Mouse
- VRAM 1GB
- RAM 4GB

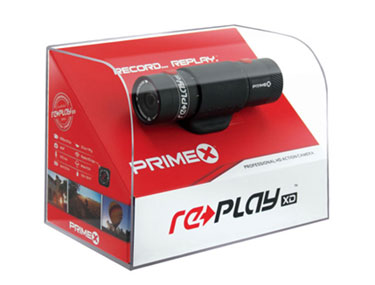

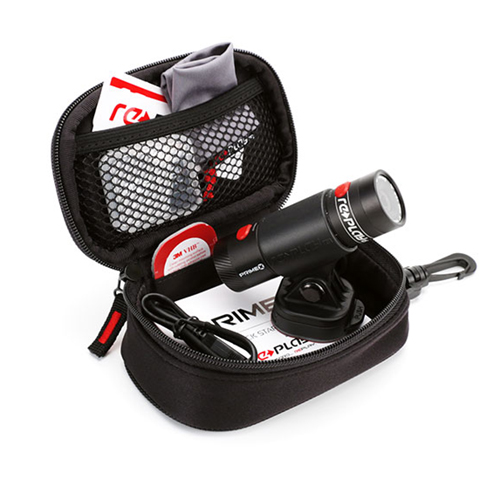

Includes
- Prime X Action Camera
- Tilt adjustable mount
- LowBoy fixed mount

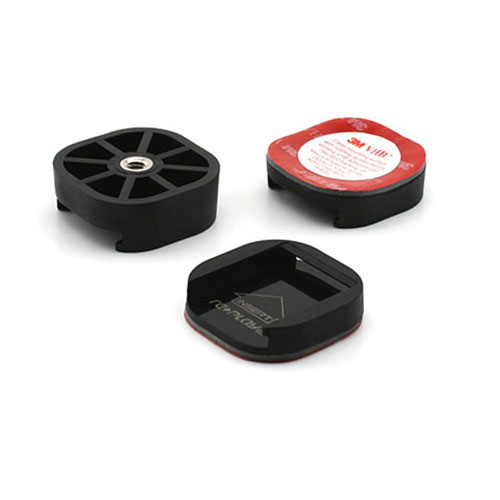

- Tripod 1/4-20 SnapTray
- Flat VHB SnapTray
- Curved VHB SnapTray
- SnapTray 3M® VHB
- 4GB UHS microSDHC Card

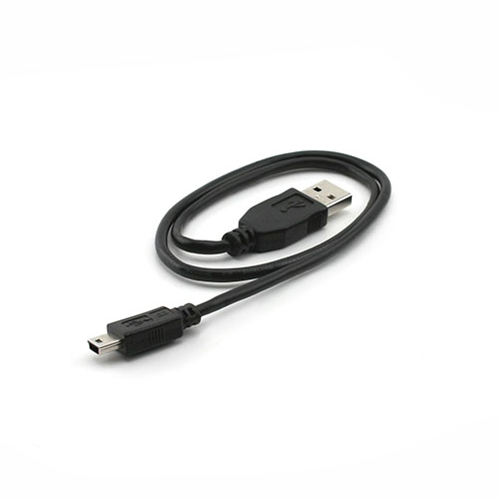

- Mini USB Cable
- Nylon Ballistic Case

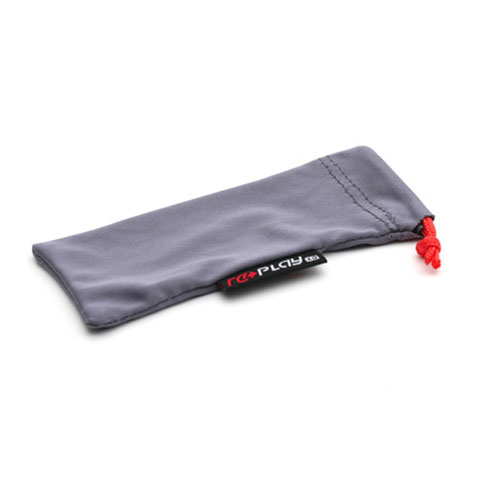

- Silk Camera Bag
- Windbreaker Decal Kit
- Two Replay XD Decals
- User Guide
