We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives & SSDs items available.

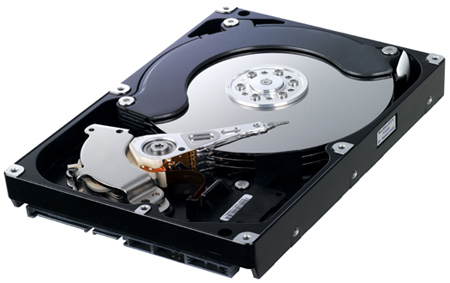

1TB Samsung Spinpoint F RAID
Hard Disk Drive
Mfr P/N: HE103UJ OWC SKU: SAMHE103UJ
Highlights
- 7,200RPM Performance
- SATA 3.0 Gb/s Interface
- Complies with the RoHS directive
- 32MB Cache data buffer
- Samsung 3 Year Limited Warranty
Samsung’s new Spinpoint F1R is made to meet the industry’s highest quality standards, providing a mean time between failure (MTBF) of up to 1.2 million hours. The new F1R also offers enterprise class features such as command completion time limit, and vibration tolerance with RV controller (RVC). It features a 16 or 32MB cache, a Serial ATA 3.0Gbps interface, a 175MB/s maximum media transfer rate, and NCQ for random I/O performance. Samsung leads the industry with its implementation of perpendicular recording and three platter 1TB design.
Offering the world’s highest recording density using only three platters and running at 7,200rpm, the F1R drive is designed for demanding applications such as database, email servers, web servers, super computing, software development, data warehousing, surveillance, call center and nearline/backup storage systems.
Includes
- (1) Bare Hard Drive
- Samsung 3 Year Limited Warranty
Specs
Total Capacity
- 1.0TB
Formatted Capacity
- 931GiB
Drive Format
- Unformatted (Instructions on formatting here)
Rotational Speed
- 7,200RPM
Cache Data Buffer
- 32 MB
Form Factor
- 3.5-inch
Drive Interface
- SATA 3.0 Gb/s
Transfer Rate
- up to 3.0Gb/s
Average Latency
- 4 ms
Average Seek Time
- 8.6 ms
Nonrecoverable Read Errors
- 1 per 1015 bits read
MTBF (Mean Time Between Failures)
- 1,200,000 hours
Contact Start Stops
- 50,000
Read Mode (Max)
- Up to 7.9 Watts
Write Mode (Max)
- Up to 7.9 Watts
Seek Mode (Max)
- Up to 8.6 Watts
Idle Mode (Max)
- Up to 7.7 Watts
Dimensions
- Height: 2.6 cm (1.0 in)
- Length: 14.7 cm (5.8 in)
- Width: 10.2 cm (4.0 in)
Weight
- 640.0 g (1.41 lbs)
Bytes per Sector
- 512
RoHS Compliant
- Yes
Ambient Temperature
- Operating: 32°F to 140°F (0°C to 60°C)
- Non-Operating: -40°F to 158°F (-40°C to 70°C)
Altitude
- Operating: 2.5 m to 3,048.0 m (8 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 5% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: 70 G max at 2 ms
- Non-Operating: 300 G max at 1 ms
Idle (Typical)
- 2.5 bels
Seek (Typical)
- 2.5 bels
Compatibility & Installation Videos

iMac (Retina 5K, 27-inch, Early 2019)
Early 2019
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac19,1
3.0GHz & 3.1GHz & 3.7GHz Core i5 & 3.6GHz Core i9

iMac (Retina 5K, 27-inch, Mid 2017)
Mid 2017
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac18,3
3.4GHz & 3.5GHz & 3.8GHz Core i5 & 4.2GHz Core i7

iMac (Retina 5K, 27-inch, Late 2015)
Late 2015
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac17,1
3.2GHz & 3.3GHz Core i5 & 4.0GHz Core i7

iMac (Retina 5K, 27-inch, Mid 2015)
Mid 2015
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac15,1
3.3GHz Core i5

iMac (Retina 5K, 27-inch, Late 2014)
Late 2014
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac15,1
4.0GHz Core i7

iMac (27-inch, Late 2013)
Late 2013
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac14,2
3.4GHz & 3.2GHz Core i5 & 3.5GHz Core i7

iMac (27-inch, Late 2012)
Late 2012
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac13,2
2.9GHz & 3.2GHz Core i5 & 3.4GHz Core i7

iMac (21.5-inch, Late 2011)
Late 2011
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac12,1
3.1GHz Core i3

iMac (27-inch, Mid 2011)
Mid 2011
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac12,2
2.7GHz & 3.1GHz Core i5 & 3.4GHz Core i7

iMac (21.5-inch, Mid 2011)
Mid 2011
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac12,1
2.5GHz & 2.7GHz Core i5 & 2.8GHz Core i7

iMac (27-inch, Mid 2010)
Mid 2010
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac11,3
3.2GHz Core i3 & 2.8GHz & 3.6GHz Core i5 & 2.9GHz Core i7

iMac (21.5-inch, Mid 2010)
Mid 2010
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac11,2
3.1GHz & 3.2GHz Core i3 & 3.6GHz Core i5

iMac (27-inch, Late 2009)
Late 2009
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac11,1
2.7GHz Core i5 & 2.8GHz Core i7

iMac (21.5-inch, Late 2009)
Late 2009
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac10,1
3.1GHz & 3.3GHz Core 2 Duo

iMac (27-inch, Late 2009)
Late 2009
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac10,1
3.1GHz & 3.3GHz Core 2 Duo

iMac (20-inch, Mid 2009)
Mid 2009
Model ID: iMac9,1
2.0GHz & 2.3GHz Core 2 Duo

iMac (20-inch, Early 2009)
Early 2009
Model ID: iMac9,1
2.7GHz Core 2 Duo

iMac (24-inch, Early 2009)
Early 2009
Model ID: iMac9,1
2.7GHz & 2.9GHz & 3.1GHz Core 2 Duo

iMac (20-inch, Early 2008)
Early 2008
Model ID: iMac8,1
2.4GHz & 2.7GHz Core 2 Duo

iMac (24-inch, Early 2008)
Early 2008
Model ID: iMac8,1
2.8GHz & 3.1GHz Core 2 Duo

iMac (20-inch, Mid 2007)
Mid 2007
Model ID: iMac7,1
2.4GHz & 2.0GHz Core 2 Duo

iMac (24-inch, Mid 2007)
Mid 2007
Model ID: iMac7,1
2.4GHz Core 2 Duo & 2.8GHz Core 2 Extreme

iMac (24-inch, Late 2006)
Late 2006
Model ID: iMac6,1
2.2GHz & 2.3GHz Core 2 Duo

iMac (17-inch, Late 2006)
Late 2006
Model ID: iMac5,2 & iMac5,1
1.8GHz & 2.0GHz & 2.2GHz Core 2 Duo

iMac (20-inch, Late 2006)
Late 2006
Model ID: iMac5,1
2.3GHz & 2.2GHz Core 2 Duo

iMac (17-inch, Early 2006)
Early 2006
Model ID: iMac4,1
1.8GHz Core Duo

iMac (20-inch, Early 2006)
Early 2006
Model ID: iMac4,1
2.0GHz Core Duo

iMac G5 (17-inch, Mid 2005)
Mid 2005
Model ID: PowerMac8,2
1.8GHz & 2.0GHz PowerPC G5

iMac G5 (20-inch, Mid 2005)
Mid 2005
Model ID: PowerMac8,2
2.0GHz PowerPC G5

iMac G5 (17-inch, Mid 2004)
Mid 2004
Model ID: PowerMac8,1
1.8GHz & 1.6GHz PowerPC G5

iMac G5 (20-inch, Mid 2004)
Mid 2004
Model ID: PowerMac8,1
1.8GHz PowerPC G5
Power Mac

Power Mac G5 (Late 2005)
Late 2005
Model ID: PowerMac11,2
2.5GHz & 2.3GHz & 2.0GHz PowerPC G5

Power Mac G5 (Early 2005)
Early 2005
Model ID: PowerMac7,3
2.0GHz & 2.7GHz & 2.3GHz PowerPC G5

Power Mac G5 (Late 2004)
Late 2004
Model ID: PowerMac9,1
1.8GHz PowerPC G5

Power Mac G5 (Mid 2004)
Mid 2004
Model ID: PowerMac7,3
1.8GHz & 2.5GHz & 2.0GHz PowerPC G5

Power Mac G5 (Late 2003)
Late 2003
Model ID: PowerMac7,2
1.8GHz PowerPC G5

Power Mac G5 (Mid 2003)
Mid 2003
Model ID: PowerMac7,2
1.8GHz & 1.6GHz & 2.0GHz PowerPC G5
Power Mac G4

Power Mac G4
Models equipped with a SATA controller card
Mac Pro

Mac Pro (Mid 2012)
Mid 2012
Model ID: MacPro5,1
3.2GHz 4-Core Xeon & 3.3GHz 6-Core Xeon & 2.7GHz & 2.4GHz & 3.1GHz 12-Core Xeon

Mac Pro (Mid 2010)
Mid 2010
Model ID: MacPro5,1
2.8GHz & 3.2GHz 4-Core Xeon & 3.3GHz 6-Core Xeon & 2.4GHz 8-Core Xeon & 2.9GHz & 2.7GHz 12-Core Xeon

Mac Pro (Early 2009)
Early 2009
Model ID: MacPro4,1
2.9GHz & 2.7GHz & 3.3GHz 4-Core Xeon & 2.9GHz & 2.7GHz & 2.3GHz 8-Core Xeon

Mac Pro (Early 2008)
Early 2008
Model ID: MacPro3,1
2.8GHz 4-Core Xeon & 2.8GHz & 3.2GHz & 3.0GHz 8-Core Xeon

Mac Pro (Mid 2006)
Mid 2006
Model ID: MacPro1,1
2.7GHz & 2.0GHz & 3.0GHz 4-Core Xeon
PC Compatible

PC Compatible
Products

3.5-inch SATA Enclosures
If upgrading/replacing an HDD with an existing external enclosure, please confirm the enclosure supports drives greater than 2.2TB. Pre-2009 enclosures are typically limited to 2.2TB and support may vary for models after 2009.
