We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives & SSDs items available.

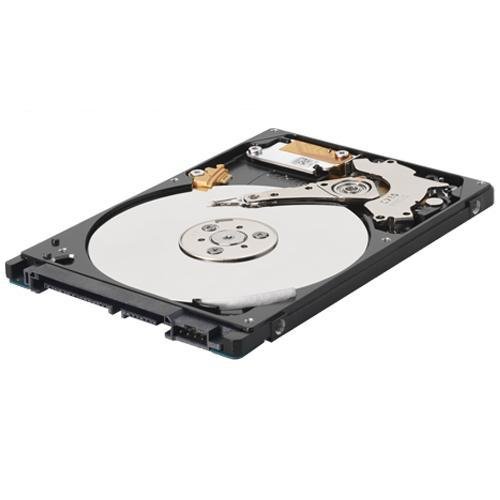

500GB Seagate Momentus 7200.5
Hard Disk Drive
Mfr P/N: ST9500420AS OWC SKU: SEAST9500420AS
Highlights
- Highest available notebook performance increases productivity in all environments.
- 500-GB capacity.
- Support for Read Multiple and Write Multiple commands.
- 16MB Cache data buffer
- Seagate 1 Year Limited Warranty
The Seagate® Momentus® 7200.5 drive delivers the highest available capacity and performance in a laptop hard drive and draw only .05 percent more power than a 5400-RPM laptop drive.
- Seagate SmartAlign™ technology provides a transition to 4K sectors without the need for software utilities.
- Seagate Self-Encrypting Drives deliver government-grade encryption without performance degradation-protecting your data where it lives. The FIPS 140-2* options are NIST government-certified for both U.S. and Canadian usage with sensitive data.**
- Seagate G-Force Protection™ technology can detect when your laptop is in a free-fall, swing the drive heads to a safe zone and keep the data safe.
- *See FIPS 140-2 Level 2 Certificate
- **Not available in all countries. Requires TCG-compliant host or controller support. TM: The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.
Includes
Back to top
- (1) Bare Hard Drive
- Seagate 1 Year Limited Warranty
Specs
Back to top
Capacity
- 500 GB
Formatted Capacity
- 466GiB
Format
- Unformatted (Instructions on formatting here)
Rotational Speed
- 7,200RPM
Cache Data Buffer
- 16 MB
Form Factor
- 2.5-inch 9.5mm
Storage Interface
- SATA 3.0 Gb/s
Transfer Rate
- up to 3.0Gb/s
Average Latency
- 4 ms
Average Seek Time
- 12 ms
Nonrecoverable Read Errors
- 1 per 1014 bits read
Annual Failure Rate
- .50%
Seek Mode (Max)
- Up to 2.5 Watts
Idle Mode (Max)
- Up to 1 Watts
Dimensions
- Height: 0.9 cm (0.4 in)
- Length: 10.0 cm (3.9 in)
- Width: 7.0 cm (2.7 in)
Weight
- 115.0 g (0.25 lbs)
Guaranteed Sectors
- 976,773,168
Areal Density
- 541Gb/in2
RoHS Compliant
- Yes
Ambient Temperature
- Operating: 32°F to 140°F (0°C to 60°C)
- Non-Operating: -40°F to 158°F (-40°C to 70°C)
Altitude
- Operating: 2.5 m to 3,048.0 m (8 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 5% to 95% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: 350 G max at 2 ms
- Non-Operating: 1000 G max at 1 ms
Idle (Typical)
- 2.3 bels
Seek (Typical)
- 2.5 bels
Applications
- High-performance Laptops, Workstations, Gamer Systems
- Mainstream Laptops, Netbooks And External Storage Enclosures
- Military And Government Laptops For Sensitive Data
- Corporate And Commercial Laptops
- Consumer Solutions Where Robustness Is A Necessity
- Entry-level Laptops And Netbooks Systems
Compatibility & Installation Videos
Back to top
MacBook Pro
MacBook Pro (17-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,3
2.4GHz & 2.5GHz Core i7
MacBook Pro (15-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,2
2.2GHz & 2.4GHz & 2.5GHz Core i7
MacBook Pro (13-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,1
2.4GHz Core i5 & 2.8GHz Core i7
MacBook Pro (17-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,3
2.2GHz & 2.3GHz Core i7
MacBook Pro (15-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,2
2.0GHz & 2.2GHz & 2.3GHz Core i7
MacBook Pro (13-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,1
2.3GHz Core i5 & 2.7GHz Core i7
MacBook Pro (13-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro7,1
2.4GHz & 2.7GHz Core 2 Duo
MacBook Pro (15-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro6,2
2.4GHz & 2.5GHz Core i5 & 2.7GHz & 2.8GHz Core i7
MacBook Pro (17-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro6,1
2.5GHz Core i5 & 2.7GHz & 2.8GHz Core i7
MacBook Pro (13-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,5
2.3GHz & 2.5GHz Core 2 Duo
MacBook Pro (15-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,4 & MacBookPro5,3
2.5GHz & 2.7GHz & 2.8GHz & 3.1GHz Core 2 Duo
MacBook Pro (17-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,2
2.8GHz & 3.1GHz Core 2 Duo
MacBook Pro (17-inch, Early 2009)
Early 2009
Model ID: MacBookPro5,2
2.7GHz & 2.9GHz Core 2 Duo
MacBook Pro (15-inch, Early 2009)
Early 2009
Model ID: MacBookPro5,1
2.7GHz & 2.9GHz Core 2 Duo
MacBook Pro (15-inch, Late 2008)
Late 2008
Model ID: MacBookPro5,1
2.4GHz & 2.5GHz & 2.8GHz Core 2 Duo
MacBook Pro (15-inch, Early 2008)
Early 2008
Model ID: MacBookPro4,1
2.4GHz & 2.5GHz Core 2 Duo
MacBook Pro (17-inch, Early 2008)
Early 2008
Model ID: MacBookPro4,1
2.5GHz Core 2 Duo
MacBook Pro (15-inch, Early 2008)
Early 2008
Model ID: MacBookPro4,1
2.6GHz Core 2 Duo
MacBook Pro (17-inch, Early 2008)
Early 2008
Model ID: MacBookPro4,1
2.6GHz Core 2 Duo
MacBook Pro (15-inch, Late 2007)
Late 2007
Model ID: MacBookPro3,1
2.6GHz Core 2 Duo
MacBook Pro (17-inch, Late 2007)
Late 2007
Model ID: MacBookPro3,1
2.6GHz Core 2 Duo
MacBook Pro (15-inch, Mid 2007)
Mid 2007
Model ID: MacBookPro3,1
2.2GHz & 2.4GHz Core 2 Duo
MacBook Pro (17-inch, Mid 2007)
Mid 2007
Model ID: MacBookPro3,1
2.4GHz Core 2 Duo
MacBook Pro (15-inch, Late 2006)
Late 2006
Model ID: MacBookPro2,2
2.2GHz & 2.3GHz Core 2 Duo
MacBook Pro (17-inch, Late 2006)
Late 2006
Model ID: MacBookPro2,1
2.3GHz Core 2 Duo
MacBook Pro (17-inch, Early 2006)
Early 2006
Model ID: MacBookPro1,2
2.2GHz Core Duo
MacBook Pro (15-inch, Early 2006)
Early 2006
Model ID: MacBookPro1,1
1.7GHz Core Duo & 1.8GHz Core Duo & 2.0GHz Core Duo & 2.2GHz Core Duo
MacBook
MacBook (13-inch, Mid 2010)
Mid 2010
Model ID: MacBook7,1
2.4GHz Core 2 Duo
MacBook (13-inch, Late 2009)
Late 2009
Model ID: MacBook6,1
2.3GHz Core 2 Duo
MacBook (13-inch, Mid 2009)
Mid 2009
Model ID: MacBook5,2
2.1GHz Core 2 Duo
MacBook (13-inch, Early 2009)
Early 2009
Model ID: MacBook5,2
2.0GHz Core 2 Duo
MacBook (13-inch, Late 2008)
Late 2008
Model ID: MacBook5,1
2.0GHz & 2.4GHz Core 2 Duo
MacBook (13-inch, Early 2008)
Early 2008
Model ID: MacBook4,1
2.1GHz & 2.4GHz Core 2 Duo
MacBook (13-inch, Late 2007)
Late 2007
Model ID: MacBook3,1
2.0GHz & 2.2GHz Core 2 Duo
MacBook (13-inch, Mid 2007)
Mid 2007
Model ID: MacBook2,1
2.0GHz & 2.2GHz Core 2 Duo
MacBook (13-inch, Late 2006)
Late 2006
Model ID: MacBook2,1
1.8GHz & 2.0GHz Core 2 Duo
MacBook (13-inch, Mid 2006)
Mid 2006
Model ID: MacBook1,1
1.8GHz Core Duo & 2.0GHz Core Duo
Mac mini
Mac mini Server (Late 2012)
Late 2012
Model ID: Macmini6,2
2.3GHz Core i7
Mac mini Server (Late 2012)
Late 2012
Model ID: Macmini6,2
2.6GHz Core i7
Mac mini Server (Mid 2011)
Mid 2011
Model ID: Macmini5,3
2.0GHz Core i7
Mac mini (Mid 2011)
Mid 2011
Model ID: Macmini5,2 & Macmini5,1
2.5GHz & 2.7GHz Core i7 & 2.3GHz Core i5
Mac mini (Mid 2010)
Mid 2010
Model ID: Macmini4,1
2.4GHz & 2.7GHz Core 2 Duo
Mac mini Server (Mid 2010)
Mid 2010
Model ID: Macmini4,1
2.7GHz Core 2 Duo
Mac mini (Late 2009)
Late 2009
Model ID: Macmini3,1
2.3GHz & 2.5GHz Core 2 Duo
Mac mini Server (Late 2009)
Late 2009
Model ID: Macmini3,1
2.5GHz Core 2 Duo
Mac mini (Early 2009)
Early 2009
Model ID: Macmini3,1
2.0GHz & 2.3GHz Core 2 Duo
Mac mini (Mid 2007)
Mid 2007
Model ID: Macmini2,1
1.8GHz & 2.0GHz Core 2 Duo
Mac mini (Late 2006)
Late 2006
Model ID: Macmini1,1
1.7GHz Core Duo & 1.8GHz Core Duo
Mac mini (Early 2006)
Early 2006
Model ID: Macmini1,1
1.5GHz Core Solo & 1.7GHz Core Duo
