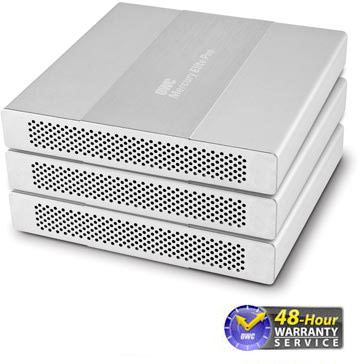

Up to 2.0TB of Portable, High-Performance, Bus-Powered Capacity

Data Rates of up to 300MB/sec. Available pre-configured in your choice of RAID-1 or RAID-0 and then you may change between:
RAID-1 (Redundant Live Mirror)  |  RAID-0 (Performance Stripe)  |  SPAN & Independent (Non-RAID)
Available pre-configured for your convenience.
  • 640GB 320GB+320GB 7200RPM w/32MB Buffer
  • 1.0TB 500GB+500GB 7200RPM w/32MB Buffer
  • 1.5TB 750GB+750GB 7200RPM w/32MB Buffer
  • 2.0TB 1.0TB+1.0TB 7200RPM w/64MB Buffer
  • 1.0TB 500GB+500GB 5400RPM w/16MB Buffer
  • 1.2TB 640GB+640GB 5400RPM w/16MB Buffer
  • 1.5TB 750GB+750GB 5400RPM w/16MB Buffer
  • 2.0TB 1.0TB+1.0TB 5400RPM w/16MB Buffer
  • 240GB 120GB+120GB OWC Mercury SSD
  • 480GB 240GB+240GB OWC Mercury SSD
  • 960GB 480GB+480GB OWC Mercury SSD

0GB Add your own drive enclosures

Add your own 2.5" Drive Set 2 x SATA 2.5", Enclosure Only -$75.00 More InfoBuy Now
Add your own 2.5" Drive Set 2 x SATA 2.5", Enclosure Kit + Software -$89.99 More InfoBuy Now

Key Features

  • Uses two 2.5″ SATA type hard disks or solid state drives
  • Hardware RAID Modes: 0, 1, or NRAID (Span & Independent)
  • System status LEDs
  • Near silent fanless operation
  • Anodized aluminum enclosure
  • Ultra-protective Shock Isolation System
  • Bus Powered Design through FireWire ports

Energy Savings

Smart Power Switch. No need to turn solution off. Leave the power switch on and the solution will spin down to conserve energy during periods of disk inactivity.



Note: eSATA connection requires FireWire bus power or external power supply and
USB port requires external power supply
  • Included
  • System Requirements
  • Product Specifications
  • One OWC Mercury Elite Pro Dual mini
  • High quality double shielded connecting cables:
    • One FireWire 800 (9-9 Pin cable)
    • One USB 2.0/1.1
    • One eSATA
  • FireWire 800 to 12 Volt Power Cable (For optimum results when using eSATA data connection)
  • Color Product Guide

    • Software
    Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
    Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later
    NovaStor NovaBACKUP® for Windows® 2000 or later
    Over 1.5GB of Freeware/Shareware/Public domain software pre-installed.
    View detailed software info
    Mac Requirements
  • Mac OS 8.6 to 9.2.2, Mac OS X 10.0.x or later and an available USB 1.1 or FireWire 400 port.
  • Mac OS X 10.2.8 or later including ‘Lion’ 10.7.x and an available USB2.0/1.1, FireWire 800/400 port, or eSATA port

    • Windows Requirements
  • Windows 98SE or later and an available FireWire 400 or USB 2.0/1.1 port.
  • Windows 2000 or later and an available USB 2.0/1.1, FireWire 800/400, or eSATA port.

    • Linux Requirements
  • Linux compatible via supported USB and FireWire interfaces.
    Features
  • Uses Two 2.5″ SATA type hard disks or solid state drives
  • Hardware RAID Modes: 0, 1, or NRAID (Span & Independent)
  • System status LEDs
  • Near silent fanless operation
  • Anodized aluminum enclosure
  • Ultra-protective Shock Isolation System
  • Bus Powered Design through FireWire ports

    • Chipset
  • Oxford 946DSE

    • Power Supply
  • Bus Power via FireWire 800 supported on all models equipped with an available FireWire 800 port either factory stock or via add on FireWire 800 PCI Card.
  • Optional AC Adapter* (available as a separate purchase here)

    * AC adapter not required for most applications provided computer bus supplies appropriate power needs.
    Maximum Data Transfer Rate
  • eSATA - 1.5 Gbit/s (or 300MB/sec)
  • FireWire 800 - 800Mbps (or 100MB/sec)
  • FireWire 400 - 400Mbps (or 50MB/sec)
  • USB 2.0 - 480Mbps (or 60MB/sec)
  • USB 1.1 - 12Mbps (or 1.5MB/sec)

    • Dimensions and Weight
  • 5.6″(D) x 6.1″(W) x 1.1″(H)
  • 144mm x 154mm x 28mm
  • Weighs as little as 1.70 lbs with SSDs, 1.75 lbs with hard drives

    • Warranty
  • OWC 3 Year Solution Warranty
  • One Voyager S2 Drive Docking Station
  • High quality double shielded connecting cables:
    • One USB 2.0/1.1
    • One eSATA
  • External Auto-Switching US/Intl. UL Listed 100-240V AC/ 50-60Hz, 12V/3 Amp Output

    • Software 1
    Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
    Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later
    NovaStor NovaBACKUP® for Windows® 2000 or later
    Over 1.5GB of Freeware/Shareware/Public domain software pre-installed.
    View detailed software info
    Mac Requirements
  • MACMacintosh OS 8.6 to 9.2.2, OS X 10.2.x or later, and an available USB or eSATA port.

    • Windows Requirements
  • PCWindows Vista, XP, 2000, NT, 98, and an available USB or eSATA port.
    Features
  • Supports all 2.5" and 3.5" SATA I/II hard drives and SSD drives up to 2.0TB
  • "Dual Interface" for maximum data transfer rates and system compatibility
  • Push button drive eject for safe removal
  • Hot-Swap functionality for fast access of multiple drives
  • Weighted base and non skid rubber feet for stable operation
  • 2-Color Status LED:
    Left side Blue = Power Right side Flashing Red = Disk Activity
  • Whisper Quiet operation...
    no cooling fan needed
  • Plug and Play with Macs and PCs
  • RoHS Compliant
    Bridge Chipset
  • Jmicron 20336

    • Maximum Data Transfer Rate
  • eSATA - 3.0Gbit/s (or 300MB/sec)
  • USB 2.0 - 480Mbps (or 60MB/sec)

    • Material
  • ABS black plastic with
    non-skid rubber feet

    • Dimensions and Weight
  • 5.9"(D) x 3.9"(W) x 3.1"(H)
  • 149.86mm x 99.06mm x 78.74mm
  • 1.32 lbs. (.60kg) (without drive)

    • Warranty
  • NewerTech 1 Year Solution Warranty
  • One Voyager S3 Drive Docking Station
  • High quality double shielded connecting cables:
    • One USB 3.0/2.0 (S3 Model Only)
  • External Auto-Switching US/Intl. UL Listed 100-240V AC/ 50-60Hz, 12V/3 Amp Output

    • Software 1
    Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
    Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later
    NovaStor NovaBACKUP® for Windows® 2000 or later
    Over 1.5GB of Freeware/Shareware/Public domain software pre-installed.
    View detailed software info
    Mac Requirements
  • MACMacintosh OS 8.6 to 9.2.2, OS X 10.2.x or later, and an available USB 3.0/2.0 port.

    • Windows Requirements
  • PCWindows Vista, XP, 2000, NT, 98, and an available USB 3.0/2.0 port.
    Features
  • Supports all 2.5" and 3.5" SATA I/II hard drives and SSD drives up to 2.0TB
  • USB 3.0 for maximum data transfer rates and fully backward compatible with USB 2.0 for system compatibility
  • Push button drive eject for safe removal
  • Hot-Swap functionality for fast access of multiple drives
  • Weighted base and non skid rubber feet for stable operation
  • 2-Color Status LED:
    Left side Blue = Power Right side Flashing Red = Disk Activity
  • Whisper Quiet operation...
    no cooling fan needed
  • Plug and Play with Macs and PCs
  • RoHS Compliant
    Bridge Chipset
  • LucidPort USB300REV2

    • Maximum Data Transfer Rate
  • USB 3.0 - 5 Gbps (or 500MB/sec)

    • Material
  • ABS black plastic with
    non-skid rubber feet

    • Dimensions and Weight
  • 5.28"(W) x 3.70"(D) x 2.68"(H)
  • 134.11mm x 93.98mm x 68.07mm
  • 1.35 lbs. (.61kg) (without drive)

    • Warranty
  • NewerTech 1 Year Solution Warranty
