Description: Ships: Price:
Aaxeon USB 2.0 3+1 Port PCI Express Card for the Power Macintosh G5 "Dual Core" and "Quad Core", Mac Pro Systems (USB68001) 24-48 hrs $64.99
Add to Your Basket:

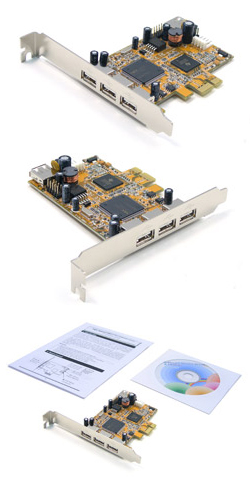

Aaxeon USB-68001
4 Port USB 2.0 Host Adapter
Plug & Play | Three External & One Internal USB 2.0 Ports

Mac | PC | PCIe | USB 2.0

This card adds:

  • Three External USB 2.0 Ports
  • One Internal USB 2.0 Port

Requires:

  • Available PCIe x1 lane Slot

See Specifiactions below for system and/or OS compatibility information

The USB-68001 PCI Express Card offers users the ability to add up to five USB ports into their PC in a very painless and simple way. The PCI Express bus allows users to benefit from high bandwidth technologies like USB, supporting data transfer rates up to 480 Mbps. This card is a plug-n-play solution with drivers for Windows and Linux.

Add more USB 2.0 ports to your PowerMac G5 or Mac Pro

The USB-68001 is the highest performance PCI Express to USB host bus adapter which is fully compatible with the OHCI specification v1.1. and USB 2.0 ECHI standard. It supports data speed up to 480 megabits per second (Mbps). That¦s 40 times fatser than USB1.1.

The USB-68001's multiple connection architecture supports concurrent operation of up to 127 physical USB devices while maintaining top speeds (480/12/1.5Mbps). It is an ideal technology for external storage devices, digital cameras, webcams, scanners, and much more. It is perfectly suited for USB device bandwidth ranging from a few kilobits per second to 480Megabits per second. It will accommodate isochronous transfer allowing real time applications such as telephony and audio full access to the entire bus bandwidth, maximizing performance and efficiency.

The USB-68001 is an ideal upgrade to support all USB-compatible devices for the rapidly changing host computer to preserve user's investment in the USB bus.


Features

  • Fully compliant with PCI Express
  • Supports one-lane 2.5Gbps PCIe specification
  • USB 2.0 data transfer rate up to 480Mbps
  • Easy plug & play
  • Supports Windows, Linux, & OS X
Includes
  • USB 86001 PCI Express Card
  • Quick Installation Guide
  • Drivers/Utilities on CD
Gallery

Specifications
Ports
  • Four USB 2.0
Connections
  • Internal - 1 Port
  • External - 3 Ports
Bus Specifications
  • PCI-Express x1
Form Factor
  • Standard PCI
Chipset
  • NEC UPD720101+ TI XIO2000
Operating System Support
  • Windows 7
  • Windows Vista
  • Windows 2003
  • Windows XP
  • Windows 2000
  • Windows 95/98/Me
  • Solaris
  • Linux 2.4.x/2.6.x
  • Mac OS X 10.2.5 or later
  • OS X Lion compatible
External Connectivity
  • x3 USB 2.0 connectors
Internal Connectivity
  • x1 USB 2.0 connector
Data Transfer Rates
  • USB 2.0 - 480Mbps (or 60MB/sec)
  • USB 1.1 - 12Mbps (or 1.5MB/sec)
Warranty
Physical
Dimensions
  • 3.70" x 2.67" (9.40cm x 6.80 cm)
Weight
  • 0.35 lbs

Click here to get your Model Identifier number
This is compatible with the following models:

Machines Have Model Identifier MacPro5,1

Mac Pro (Mid 2010 8-Core, 2.4GHz)
(July, 2010)

Machines Have Model Identifier MacPro5,1

Mac Pro (Mid 2010 Quad-Core, 2.8GHz, 3.2GHz)
(July, 2010)

Machines Have Model Identifier MacPro4,1

Mac Pro (Early 2009 8-Core, 2.26GHz, 2.66GHz, 2.93GHz)
(March, 2009)

Machines Have Model Identifier MacPro4,1

Mac Pro (Early 2009 Quad-Core, 2.66GHz, 2.93GHz, 3.33GHz)
(March, 2009)

Machines Have Model Identifier MacPro3,1

Mac Pro (Early 2008, 2.8GHz, 3.0GHz, 3.2GHz)
(January, 2008)

Machines Have Model Identifier MacPro2,1

Mac Pro (8-core, 3.0GHz)
(April, 2007)

Machines Have Model Identifier MacPro1,1

Mac Pro (Original, 2.0GHz, 2.66GHz, 3.0GHz)
(August, 2006)

Machines Have Model Identifier PowerMac11,2

Power Mac G5 (Late 2005, 2.0GHz, 2.3GHz, dual 2.5GHz)
(October, 2005)

PC running Windows, Linux or FreeBSD
and available PCI-Express x1 lane or better slot
