Everything you need in one package, immediately ready to assemble and:
- Backup and store your data with confidence.
- Take your data with you - small enough to keep in a shirt pocket!
- Easily add additional laptop storage with no AC adapter required.
Examples of how this bus-powered On-The-Go bundle can be used in real world situations:
Power Users / Travelers: Relocate your "home folder" to your On-The-Go and have your files with you at home, at work or on the road without the need to synchronize your machines.
Laptop Owners: Clone your current internal SATA hard drive in your laptop to the new drive. Then install the new, larger drive in your laptop and keep the smaller drive in your On-The-Go for additional storage space.
iTunes Aficionados: Keep a copy of your iTunes library on your external drive to play on multiple machines.
Gamers: Add additional storage to your XBox 360 or PS3 game console to store music, media, and other downloads. PS3 even includes a backup utility to protect your internal drive's data.
For Everyone: Have the piece of mind of a complete backup plan. Create a bootable clone of your hard drive at regular intervals so if your computer goes down, your productivity doesn't go down with it. Boot to another computer and keep on working! |
|

|
The Seagate® Momentus® 7200.4 drive delivers the highest available capacity and performance in a laptop hard drive and draw only .05 percent more power than a 5400-RPM laptop drive.
320 GB • 7200 RPM • 2.5-Inch Laptop
|
|
|
|
Key Advantages
- Highest available notebook performance
- 320-GB capacity
- Native Command Queuing
- Green features:
- Lowest-power 7200-RPM laptop hard drive yet
- Ramp load features improve idle power consumption
- State-of-the-art error correction
- Fluid dynamic bearing motor
- Support for S.M.A.R.T. drive monitoring and reporting
- Support for Read Multiple and Write Multiple commands
Best-Fit Applications
- High-performance and mainstream laptop PCs
- Small form factor PCs
- Workstations
- Industrial applications
- Non-mission-critical blade servers
|
| Model Number |
ST9320423AS |
| Interface |
SATA 3Gb/s |
| Performance |
|
| Cache (MB) |
16 |
| Spindle Speed (RPM) |
7200 |
| Configuration/Organization |
|
| Logical CHS |
16,383/16/63 |
| Bytes per Sector |
512 |
| Reliability/Data integrity |
|
| Head-Rest Method |
QuietStep Ramp Load |
| Load/Unload Cycles |
600,000 |
| Nonrecoverable Read Errors per Bits Read |
1 per 1014 bits read |
| Annualized Failure Rate (AFR) |
0.5% |
| Mean Time Between Failures (MTBF, hours) |
500,000 |
| Limited Warranty (years) |
3 |
| Power Management |
|
| Startup Current 5v (amps max) |
1.0 |
Power Mgmt (watts)
Seek
Idle/Standby |
1.554
0.67 |
| Environmental |
|
Temperature (°C)
Operating
Nonoperating |
0 to 60
40 to 70 |
Shock (G)
Operating: 2 ms
Nonoperating: 1 ms |
350
1000 |
Acoustics (belssound power)
Idle
Performance Seek |
2.3
2.5 |
| Physical |
|
| Height (in/mm) |
.370/9.5 |
| Width (in/mm) |
2.75/69.85 |
| Depth (in/mm) |
3.515/100.35 |
| Weight (lb/g) |
0.238/110 |
- One gigabyte, or GB, equals one billion bytes when referring to hard drive capacity.
|
Prosoft
Engineering® Data Backup for
Mac OS X v10.2.8 or later
 Backup
Made Easy. Data Backup makes it easy to backup to FireWire
and USB drives, network drives, CDs and even DVDs. Make
schedules so you don't need to 'think' about backing up...
It does it for you.
NovaStor
NovaBACKUP® Solution for Windows®
NovaBACKUP has been helping millions of users recover
from data loss and disasters for over 18 years. Feature rich,
NovaBACKUP provides a powerful backup solution. Built-in
support for hundreds of the most popular storage devices
and a step-by-step backup and restore wizard makes NovaBACKUP
extremely easy to use. Requires Windows 2000 and later.!
Intech® SpeedTools
Utilities™
Intech Hard Disk SpeedTools
consists of a suite of utilities managed by an application
which controls the launching, documentation and version
control of each individual component utility, such as Disk
Defrag and QuickBack. An easy-to-use installation and removal
application is provided to make installation a snap, yet
powerful enough to allow you to customize which utility
component set you would like to create.
Carbon Copy Cloner© for Mac OS X 10.4 or later
CCC 3 features an interface designed to make the cloning and backup procedure very intuitive. In addition to general backup, CCC can also clone one hard drive to another, copying every single block or file to create an exact replica of your source hard drive. CCC's block-level copy offers the absolute best fidelity in the industry!
|
|
OWC Mercury On-The-Go
FireWire 400 +USB 2.0 2.5" Portable Case Kit for SATA 2.5" Hard Drives
In today's modern mobile work force, the Mercury On-The-Go Pro is the reliable bus powered solution that's as mobile as you are!
|
 |
| On-The-Go Enclosure |
The OWC Mercury On-The-Go FireWire 400 / USB 2.0 Portable Kit packs an incredible punch into a 3"W x 5.5"L x 1"H, 11 ounce package!
If you're looking for one of the most compatible mass storage solutions made, look no further! The OWC Mercury On-The-Go drive is all you'll need! Packing a one-two punch of super fast FireWire 400 and USB 2.0, the OWC Mercury On-The-Go has what it takes to truly work cross platform.
The OWC Mercury On-The-Go features the latest in performance with an Oxford 924 combination FireWire and USB chipset creating one perfectly integrated storage solution.
The OWC Mercury On-The-Go keeps everything running silent while still keeping your drive cool with a built in aluminum heatsink underneath the hard drive, and passthrough cooling vents on the top of the case. The On-The-Go External FireWire Case kit is ready to accept your own 2.5" SATA Hard Drive! Why not upgrade your PowerBook's internal drive and put your old drive in an external case? This solution will give you an excellent transportable storage device, or a backup option that you may have not had! |
| Product Specifications: |
| Bus Interface: |
- One FireWire 1394A, 6 Pin (powered) port
- USB 2.0 / 1.1 Backwards compatible 5 pin mini "B" port.
|
| Chipset: |
- Oxford 324 FireWire400 & USB 2.0 chipset
|
| Max Data Transfer Rate: |
- 400 Mbps (or 40MB/sec) - FireWire 400/1394A
- 480 Mbps (or 60MB/sec) - USB 2.0
|
| System Requirements: |
FireWire:
- Macintosh: Macintosh with FireWire Interface and OS 8.6 and above.
- PC: PC with FireWire interface and Windows 98 or other OS with FireWire Support.
USB 2.0:
- Macintosh: Macintosh with USB interface, either built in or via 3rd party card. USB 2.0 drivers required for use with Mac OS X, USB 2.0 not supported on any other Macintosh OS. Mac OS 8.6 and above for use with USB 1.1. USB 2.0 is fully backwards compatible with USB 1.1.
- PC: PC with USB interface and Windows 98 or other OS with USB support. USB 2.0 drivers required for USB 2.0 use. Check with your OS manufacturer for the availabilty of USB 2.0 drivers for your system, and if your USB card supports USB 2.0. USB 2.0 is fully backwards compatible with USB 1.1.
|
| Power Supply |
- Bus Power via FireWire 400 on all models made in 2001 or later via Factory ports or any model with add on FireWire 400 PCI Card.
- Bus Power via USB on all models with USB 2.0 port factory stock, or any system via add-on USB 1.1 or USB 2.0 PCI Card.
- Power adapter is not required for most hard drives and USB 2.0 operation; power adapter is available as a separate purchase here.
|
| External Case Dimensions: |
3.5" (W) x 5.5" (D) x 1" (H) |
| Total Shipping Weight: |
Less than 2.5lbs. |
| Operating Environment: |
| Temperature: |
Dependant on mechanism installed |
| Relative humidity: |
Dependant on mechanism installed |
| Vibration: |
Dependant on mechanism installed |
| MTBF: |
Dependant on mechanism installed |
| Warranty: |
1 Year OWC Warranty |
|

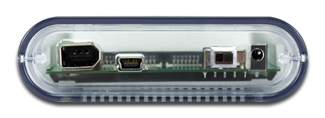

Rear View:
|

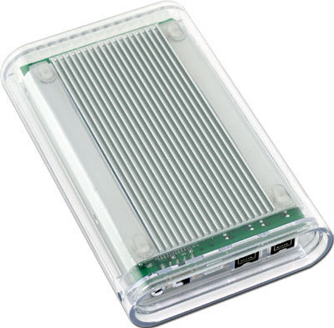

Bottom Heatsink View:
|

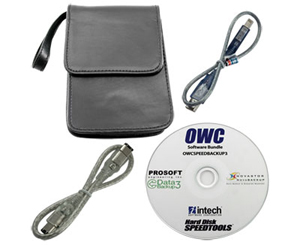

Accessories:
|
This OWC Mercury On-The-Go FireWire Case Kit Includes:
- OWC Mercury On-The-Go Pro FireWire 400 / USB 2.0 storage enclosure for SATA 2.5" Hard Drives
- High Quality Double Shielded FireWire 800/400 connecting cable (9-6 Pin cable)
- High Quality Double Shielded USB 2.0 (USB A to 5 pin mini "B") certified connecting cable
- Carrying Case
Assembly Instructions:
|
|
