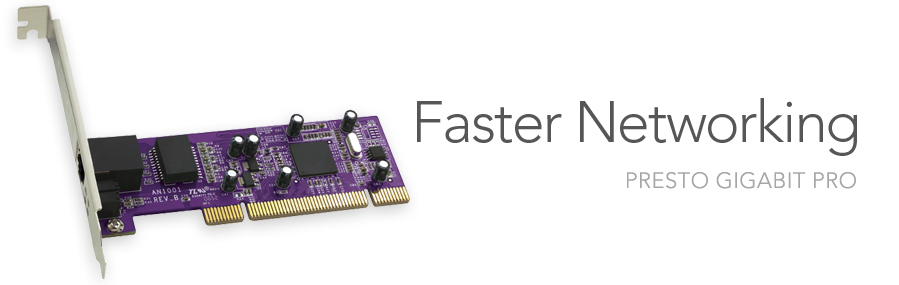

Network congestion can slow you down. Speed things up with Sonnet's Presto™ Gigabit Pro PCI card. Just install this Ethernet card into a PCI slot of any compatible Mac or Windows computer, connect to a fast network, and watch your file transfer times improve dramatically.
Sonnet's Simply Fast design philosophy makes this installation a breeze; you'll complete the process in a few simple steps. Even older models can take advantage of these speed enhancements. You'll be impressed by data transfers of up to 1000 Mbps— migrating your computer to Gigabit Ethernet has never been so easy.
Presto Gigabit Pro supports 9000 byte jumbo packet(1) transfers (compared to 1500 byte standard packets) to support higher performance and reduced processing loads when transferring large files. This Sonnet card also supports link aggregation with onboard Gigabit Ethernet ports and full duplex communication to achieve 2000 Mbps transfer rates(2)—the ideal solution for high-bandwidth video, audio, and storage requirements.
Technical Notes:
(1) Jumbo packet support for the Presto Gigabit Pro requires the use of networking hardware with jumbo packet transfer support.
(2) Link aggregation support for the Presto Gigabit Pro requires the use of networking hardware with link aggregation support.
|
- Simple way to add Gigabit Ethernet to any compatible computer
- Easy installation
- Full/half duplex
- Dramatically increase file transfer times; enjoy data transfers of up to 1000 Mbps
- Link aggregate with on board Gigabit Ethernet to achieve up to 2000 Mbps.
- Power Mac® G3 Blue & White, G4, G5 (with PCI slots)
- Mac OS® X Version 10.5 or 10.4.11
- PC (with PCI slot)
- Windows Vista or XP SP2
| Warranty |
1-year limited warranty |
Network Connectors |
One RJ-45 connector supports 1000Mbps, 100Mbps, 10Mbps network speed and Auto-MDI/MDI-X |
| Bus Interface |
PCI V2.2/2.1, 32-bit, 66/33 MHz |
| Standard |
IEEE 802.3 10BaseT; IEEE 802.3u 100BaseT; IEEE 802.3ab 1000BaseT |
| Network |
Gigabit Ethernet (10BaseT, 100BaseTX, 1000BaseT) |
| Network Power |
UTP x 1 (Auto-MDI/MDI-X) |
| IRQ Line |
Assigned by system |
| I/O Address |
Assigned by system |
| Transmission Rates |
10Mbps/20Mbps;
100Mbps/200Mbps; 1000Mbps/2000Mbps |
| Link |
Supports Link Aggregation |
| Packets |
Maximum packet size:
9000 bytes (Jumbo packets) |
| LEDs |
10Mbps Link/Activity;
100Mbps Link/Activity; 1000Mbps Link/Activity |
Specifications subject to change without notice. |
