Note: OWC Mercury Rack Pro solutions do not include rack rails. If rails are required for your rack setup, OWC has them available. Click here.

Proven Stress-Tested Performance

Every Qx2 solution undergoes a multi-hour "burn in" performance stress test prior to shipping to ensure
each unit will deliver the highest degree of reliable performance for your demanding uses.

Key Features

  • Multi-Interface USB 3.0 & 2.0, FireWire 800, FireWire 400, and eSATA with Port-Multiplier capability for flexible connectivity
  • OWC RAID Manager Visual Interface (read more)

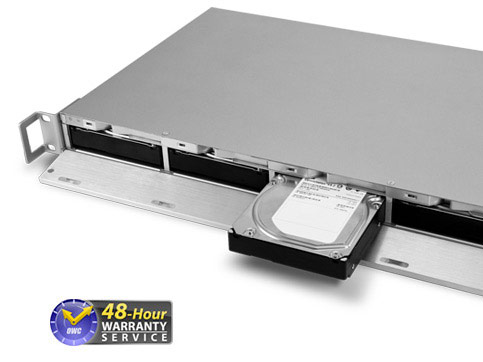

  • Tray-less drive bays for easy drive management
  • Rear panel selectable

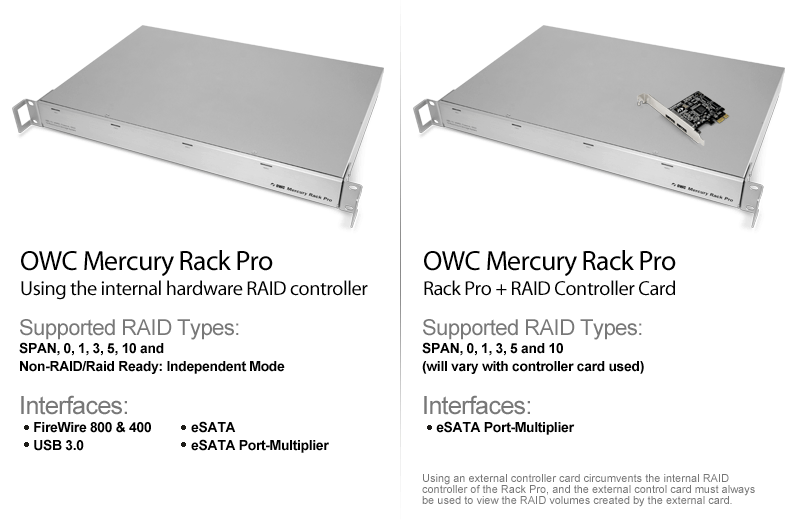

    • Hardware RAID settings - SPAN, 0, 1, 3, 5, 10
    • Non-RAID/Raid Ready - Independent Mode
      (each drive appears as independent volume)1
  • System status & drive activity LED indicators
  • Data transfer speeds up to 300MB/s
  • Drive speeds of up to 7200RPM
  • Solutions include all connecting cables needed for the device
  • Smart Power regulates power during prolonged periods of inactivity to save operating costs and prolong component lifespan.
  • Plug and play with Mac and PCs
  • 2 Year OWC Mercury Rack Pro Limited Warranty
  • 5 Year OWC Mercury Rack Pro Enterprise Limited Warranty
  • Rack mount or desk/table solution
  • Whisper quiet operation
  • Included
  • System Requirements
  • Product Specifications

OWC RAID Manager (BETA Version*)

Control and manage your RAID settings with this easy to use visual interface.

The power of simplicity is evident in the OWC RAID Manager. With easy to follow options and menus, this convenient user interface adds a level of control and monitoring for unrivaled operating confidence.

*While the functionality of the user interface is nearly complete, the overall look and feel as well as basic environment settings (dock and menu bar item) are still being finalized. As such, this product is in a BETA level of support and therefore no guarantee of system stability, data integrity, etc. is offered. For more information, please read the Software License Agreement here.

Download the OWC RAID Manager

Two modes, Basic and Advanced, let you tailor the setting to best
suit your technical proficiency and particular needs.

Under the Basic Mode, you can:
  • View and monitor each drive's specific information including its serial number, model name, and capacity.
  • Create, and delete RAID arrays and monitor them visually and/or with audible alerts.
  • View drive S.M.A.R.T. status to determine future reliability.
  • Password protect your RAID array to prevent unauthorized access and modification of the array.
The Advanced Mode adds these features to the Basic set:
  • Create multiple RAID sets among the four drives
    • Eg. Select RAID 1 for two drives and RAID 0 for the other two drives.
    • RAID Choices: 0,1,3,5,10, Clone (an enhanced RAID 1), and Large (JBOD)
  • Selectable standby/sleep time for the Rack Pro
    • Select no standby or up to 10922 minutes for the Rack Pro to enter standby mode.
  • Program email notifications for drive failures, rebuild notifications, and other drive related events.

Download the OWC RAID Manager

  • One OWC Mercury Rack Pro 4 Bay 1U Multi-Interface, Hardware RAID External Enclosure
  • High quality double shielded connecting cables:
    • One FireWire 800 (9-9 Pin cable)
    • One FireWire 400 (6-6 Pin cable)
    • One USB 3.0
    • One eSATA with eSATA Port-Multiplier Capability
  • Heavy Duty Power Cable

  • Software
    OWC RAID Manager Visual Interface (For Mac OS X 10.5.x
    or later with Intel® processor.)
    Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
    Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later
    NovaStor NovaBACKUP® for Windows® 2000 or later
    Over 1.5GB of Freeware/Shareware/Public domain software pre-installed.
    View detailed software info
    Mac Requirements
  • Mac OS 8.6 to 9.2.2, Mac OS X 10.0.x or later and an available USB 1.1 or FireWire 400 port.
  • Mac OS X 10.2.8 or later including ‘Lion’ 10.7.x and an available USB 3.0, FireWire 8003/400 port, or eSATA port

  • Windows Requirements
  • Windows 98SE or later and an available FireWire 400 or USB 2.0/1.1 port.
  • Windows 2000 or later and an available USB 3.0, FireWire 8003/400, or eSATA port.

  • Linux Requirements
  • Linux compatible via supported
    USB and FireWire interfaces.
    Features
  • Supports 3.5″ SATA I/II hard drives drives up to 3.0TB
  • Hardware RAID - SPAN, 0, 1, 3, 5, 10
  • Non-RAID/Raid Ready - Independent Mode (each drive appears as independent volume)1
  • Preconfigured as RAID 5
  • System status & drive activity LED indicators
  • Up to 7,200RPM speeds
  • Up to 256MB total data buffer
  • Rugged, machined aluminum enclosure
  • Whisper quiet operation

  • Dimensions and Weight
  • 11.9"(D) x 17.3"(W) x 1.7"(H)
  • 33.3cm x 44cm x 4.5cm
  • 10 lbs. (4.5kg) (without drive)

  • One Voyager S2 Drive Docking Station
  • High quality double shielded connecting cables:
    • One USB 2.0/1.1
    • One eSATA
  • External Auto-Switching US/Intl. UL Listed 100-240V AC/ 50-60Hz, 12V/3 Amp Output

  • Software 1
    Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
    Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later
    NovaStor NovaBACKUP® for Windows® 2000 or later
    Over 1.5GB of Freeware/Shareware/Public domain software pre-installed.
    View detailed software info
    Mac Requirements
  • MACMacintosh OS 8.6 to 9.2.2, OS X 10.2.x or later, and an available USB or eSATA port.

  • Windows Requirements
  • PCWindows Vista, XP, 2000, NT, 98, and an available USB or eSATA port.
    Features
  • Supports all 2.5" and 3.5" SATA I/II hard drives and SSD drives up to 2.0TB
  • Multi-Interface for maximum data transfer rates and system compatibility
  • Push button drive eject for safe removal
  • Hot-Swap functionality for fast access of multiple drives
  • Weighted base and non skid rubber feet for stable operation
  • 2-Color Status LED:
    Left side Blue = Power Right side Flashing Red = Disk Activity
  • Whisper Quiet operation...
    no cooling fan needed
  • Plug and Play with Macs and PCs
  • RoHS Compliant
    Bridge Chipset
  • Jmicron 20336

  • Maximum Data Transfer Rate
  • eSATA - 3.0Gbit/s (or 300MB/sec)
  • USB 2.0 - 480Mbps (or 60MB/sec)

  • Material
  • ABS black plastic with
    non-skid rubber feet

  • Dimensions and Weight
  • 5.9"(D) x 3.9"(W) x 3.1"(H)
  • 149.86mm x 99.06mm x 78.74mm
  • 1.32 lbs. (.60kg) (without drive)

  • Warranty
  • NewerTech 1 Year Solution Limited Warranty
  • One Voyager S3 Drive Docking Station
  • High quality double shielded connecting cables:
    • One USB 3.0/2.0 (S3 Model Only)
  • External Auto-Switching US/Intl. UL Listed 100-240V AC/ 50-60Hz, 12V/3 Amp Output

  • Software 1
    Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
    Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later
    NovaStor NovaBACKUP® for Windows® 2000 or later
    Over 1.5GB of Freeware/Shareware/Public domain software pre-installed.
    View detailed software info
    Mac Requirements
  • MACMacintosh OS 8.6 to 9.2.2, OS X 10.2.x or later, and an available USB 3.0/2.0 port.

  • Windows Requirements
  • PCWindows Vista, XP, 2000, NT, 98, and an available USB 3.0/2.0 port.
    Features
  • Supports all 2.5" and 3.5" SATA I/II hard drives and SSD drives up to 2.0TB
  • USB 3.0 for maximum data transfer rates and fully backward compatible with USB 2.0 for system compatibility
  • Push button drive eject for safe removal
  • Hot-Swap functionality for fast access of multiple drives
  • Weighted base and non skid rubber feet for stable operation
  • 2-Color Status LED:
    Left side Blue = Power Right side Flashing Red = Disk Activity
  • Whisper Quiet operation...
    no cooling fan needed
  • Plug and Play with Macs and PCs
  • RoHS Compliant
    Bridge Chipset
  • LucidPort USB300REV2

  • Maximum Data Transfer Rate
  • USB 3.0 - 5 Gbps (or 500MB/sec)

  • Material
  • ABS black plastic with
    non-skid rubber feet

  • Dimensions and Weight
  • 5.28"(W) x 3.70"(D) x 2.68"(H)
  • 134.11mm x 93.98mm x 68.07mm
  • 1.35 lbs. (.61kg) (without drive)

  • Warranty
  • NewerTech 1 Year Solution Warranty
1. When using in independent mode via eSATA, you must use a eSATA Interface/Controller which supports eSATA Port Multiplier standard.
(Please see "Recommended eSATA Cards" in SPECS table and check for Port Multiplier compatibility.)

2. When using in Independent Mode and wanting to switch out one or more drives, ALL drives must be ejected (unmounted) from the Desktop to avoid data corruption.

3. The use of FireWire 800 interface while the Rack Pro is in RAID 5 setting is not recommended for optimum drive speed performance.
