We're sorry, but this item is no longer for sale. However, there may be more Expansion Cards items available.

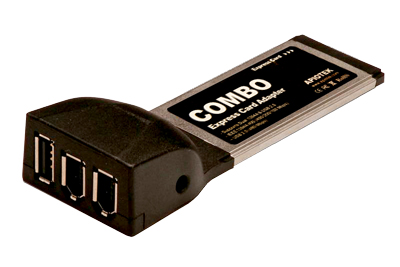

Apiotek

COMBO
2 Port FireWire 400 & 1 Port USB 2.0
Express Card 34 Adapter

Mac / PC/ USB 2.0 / FireWire 400
Express Card interface is smaller and faster than PCMCIA interface. The speed of Express Card is 2.4 times more than PCMCIA.
  • Express Card/34 & ExpressCard/54 compliant
  • Supports IEEE 1394a Standard (FW 400) speeds up to 400Mb/s
  • Supports USB 2.0 Standard with speeds up to 480Mb/s
  • Plug & Play, no drivers required
  • Hot Swappable
  • Additional power jet for external power input (Optional)

Product Specifications

Apiotek Part Number

  • EC-0002C

Ports

  • 1 External USB 2.0
  • 1 External FireWire 400 (IEEE 1394a)

Connections

  • External - 3 Devices

Bus Specifications

  • PCI-Express

Controller / Chipset

  • ExpressCard/34

Data Transfer Speeds

  • FireWire 400 - 400Mbps (or 50MB/sec)
  • USB 2.0 - 480Mbps (or 60MB/sec)
  • USB 1.1 - 12Mbps (or 1.5MB/sec)

Operating System Support

  • Mac OS X 10.1.2 or later
  • Microsoft Windows 7, Vista, 2000, ME and Windows XP

Hardware Requirements

  • MacBook Pro with an available ExpressCard/34 slot
  • PC notebook with an available ExpressCard/34 slot

Form Factor

  • Texas Instruments XIO 2200A

Internal Connectivity

  • None

Voltage

  • +3.3V ~+3.0V
    (±5% wide range power supply)

Agency Compliances

  • RoHS
  • CE
  • FCC

Dimensions

  • 117mm(L) x 37mm(W) x 20mm(H)
  • 34mm ExpressCard Compliant

Weight

  • 1.45 oz

Operating Temperature (Hardware Environment)

  • +20°C ~+ 45°C

Relative Humidity

  • Operating: 20% to 80%
  • Non-Operating: 15% to 90%

Warranty

Manufacturer provided specifications for Apiotek p/n EC-0002C
This product is compatible with... Learn how to find your Mac's model ID
MacBook Pro Unibody
MacBook Pro (17-inch 2011)
(October, 2011)
Model ID: MacBookPro8,3
2.4GHz, 2.5GHz
MacBook Pro Unibody
MacBook Pro (17-inch Early 2011)
(February, 2011)
Model ID: MacBookPro8,3
2.2GHz, 2.3GHz
MacBook Pro Unibody
MacBook Pro (17-inch Mid 2010)
(April, 2010)
Model ID: MacBookPro6,1
2.53GHz, 2.66GHz, 2.8GHz
MacBook Pro Unibody
MacBook Pro (17-inch Mid 2009)
(June, 2009)
Model ID: MacBookPro5,2
2.8GHz, 3.06GHz
MacBook Pro Unibody
MacBook Pro (17-inch Early 2009)
(January, 2009)
Model ID: MacBookPro5,2
2.66GHz, 2.93GHz
MacBook Pro
MacBook Pro (17-inch Early 2008)
(February, 2008)
Model ID: MacBookPro4,1
2.5GHz, 2.6GHz
MacBook Pro
MacBook Pro (17-inch Mid/Late 2007)
(June, 2007)
Model ID: MacBookPro3,1
2.4GHz, 2.6GHz
MacBook Pro
MacBook Pro (17-inch Core 2 Duo)
(October, 2006)
Model ID: MacBookPro2,1
2.33GHz
MacBook Pro
MacBook Pro (17-inch)
(April, 2006)
Model ID: MacBookPro1,2
2.16GHz
MacBook Pro Unibody
MacBook Pro (15-inch Late 2008)
(October, 2008)
Model ID: MacBookPro5,1
2.4GHz, 2.53GHz, 2.66GHz 2.8GHz
MacBook Pro
MacBook Pro (15-inch Early 2008)
(February, 2008)
Model ID: MacBookPro4,1
2.4GHz, 2.5GHz, 2.6GHz
MacBook Pro
MacBook Pro (15-inch Mid/Late 2007)
(June, 2007)
Model ID: MacBookPro3,1
2.2GHz, 2.4GHz, 2.6GHz
MacBook Pro
MacBook Pro (15-inch Core 2 Duo)
(October, 2006)
Model ID: MacBookPro2,2
2.16GHz, 2.33GHz
MacBook Pro
MacBook Pro (15-inch Glossy)
(May, 2006)
Model ID: MacBookPro1,1
2.0GHz, 2.16GHz
MacBook Pro
MacBook Pro (15-inch)
(January, 2006)
Model ID: MacBookPro1,1
1.83GHz, 2.0GHz, 2.16GHz
PC Laptop
PC/intel Laptops
Running Windows XP or Windows 7 with available ExpressCard/34 slot

Customer Ratings

Write a Review 5 / 5 2 out of 2 (100%) reviewers would recommend this product
Verified Buyer
Reviewer: Anonymous Location: Bellingham, WA Experience Level: IT Professional Owned Product: less than a month
Rating: 5/5 Works simply as stated! October 29, 2014 This was purchased to create a Firewire port on my Toshiba Laptop so that I could interface with the Presonus 16.0.2 Professional Live Studio Mixer. It took a few minutes for Windows to find the Microsoft driver needed - but once installed (all automatically) Bingo!

Once I connected to the mixer - it automatically performed an automated search and did a firmware upgrade. Be careful of purchasing incorrect adapters on the net. The chip-set in this device is listed as approved by Presonus to work - And it Does! - The extra USB 2.0 is a bonus. - Thank you OWC for stocking these!

I would recommend this item to a friend!

Verified Buyer
Reviewer: Anonymous Location: Philadelphia, PA suburb Age: Over 65 Experience Level: Home User Owned Product: 1-3 months
Rating: 5/5 Added convenience May 15, 2014 Bought it for my MacBrook Pro (mid-2010). It lets me use the Express Card slot to give me extra ports so I no longer need to change cables while using various external items. Works as advertised and the convenience is worth the money. I was able to dump my hub, which did not work for all accessories. Gave me firewire, which was not part of my Mac.

I would recommend this item to a friend!

Apiotek COMBO Dual 1394+USB 2.0 Express Card 34 Adapter Mfr P/N: EC-0002C OWC SKU: APIEC0002C Add 2 FireWire 400 ports and 1 USB port to any ExpressCard/34 slot-equipped Apple MacBook Pro or PC. 90 Day OWC Fulfilled Limited Warranty
Sold Out
