We're sorry, but this item is no longer for sale. However, there may be more Cables items available.

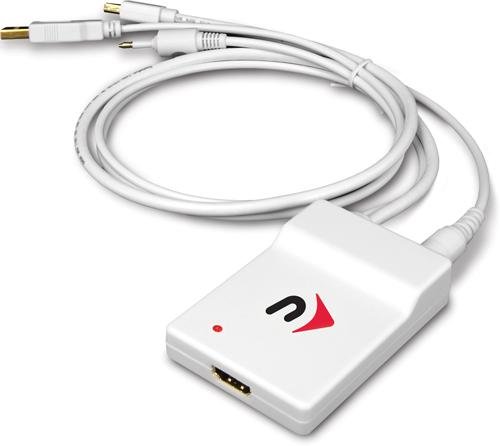

Mini DisplayPort w/ 5.1
Channel Digital Audio to HDMI Adapter

  • Connect your Mac with Mini DisplayPort
    to your HDTV or HDMI Display.
  • Supports full 1080p resolution via Mini DisplayPort.
  • Supports Mini DisplayPort 1.1a input, USB 2.0, Apple®
    Mini Jack Optical Audio Input
  • Watch movies from your Mac in surround
    sound (where available)
    on your TV with the use of one adapter.
  • Over 3 feet of cable for versatility in cable management.
  • Bus powered...no AC adapter required.
Output both 1080p HD video and digital audio with this all-in-one HDMI adapter.
Don't have the latest* Mac with with Mini DisplayPort that outputs both audio and video? No problem, the NewerTech Mini DisplayPort w/ 5.1 Channel Audio to HDMI Adapter combine full 1080p HD Mini DisplayPort output with 5.1 channel audio output from your Mac in a single HDMI connection to your TV or other HD display.

Use the Mini DisplayPort w/ 5.1 Channel Digital Audio to HDMI Adapter to connect a high definition monitor or television, that includes a HDMI connector. Review the documentation or check with the manufacturer of your monitor or TV to make sure you're
choosing the right adapter.

*Late 2009 iMac, Mid 2010 MacBook and MacBook Pro, and Mid 2010 Mac mini and later models.
With this adapter, you can use an external display as your main workspace or to extend your desktop, or you can work in mirrored mode with a projector so you can view what your audience sees. The Mini DisplayPort USB adapter combines the Mini DisplayPort for video and Apple Mini Jack for 5.1 channel audio from your Mac Pro (2009), Mac mini (2009), iMac (2009), MacBook, MacBook Pro, or MacBook Air with Mini DisplayPort. Powered by USB so no external power source is needed.


  • Chipset: True HDMI 1.3
  • Video Resolution: Supports up to 1080p resolution
  • Audio: Supports uncompressed 5.1 channel audio such as LPCM Supports compressed 5.1
    channel audio such as DTS Digital, Dolby Digital USB does not support analog audio signal
  • Bandwidth: 225mhz/2.25Gbps per channel (6.75Gbps all channel)
  • Color: 8 bit per channel (24 bit all channel)
  • Power: Bus-powered via USB - no power adapter required
  • Compatibility: This adapter is compatible with all Mini DisplayPort equipped Macs and PCs, but not needed for Macs that carry both audio AND video thru the Mini DisplayPort such as Late 2009 iMac, Mid 2010 MacBook and MacBook Pro, and Mid 2010 Mac mini and later models. See this product NewerTech Mini DisplayPort to HDMI Video Adapter for a more economical solution.
  • Length: 1.0m / 39.37 inches
  • Weight: 6.53oz. / 0.408lbs.
  • Compliance's: ROHS, CE, FCC
  • 3yr NewerTech Warranty
Manufacturer provided specifications for Newer Technology p/n NWTCBLMDPHDMID UPC#: 811643010567

This adapter end

fits this cable end

This adapter end

fits this port

This adapter end

fits this port

This adapter end

fits this port
Be sure to get the right device!
This device is compatible with...
Mac Pro "Early 2009"
8-core Xeon 5500
  • MacPro4,1 | 2.26GHz, 2.66GHz, 2.93GHz
Mac Pro "Early 2009"
Quad-core Xeon 3500
  • MacPro4,1 | 2.66GHz, 2.93GHz, 3.33GHz
Mac mini Server "Mid 2011"
  • Macmini5,1 | 2.0GHz
Mac mini "Mid 2011"
  • Macmini5,1 | 2.3GHz, 2.5GHz, 2.7GHz
Mac mini Server "Mid 2010"
  • Macmini4,1 | 2.66GHz
Mac mini "Mid 2010"
  • Macmini4,1 | 2.4GHz, 2.66GHz
Mac mini Server "Late 2009"
  • Macmini3,1 | 2.53GHz
Mac mini "Late 2009"
  • Macmini3,1 | 2.26GHz, 2.53GHz, 2.66GHz
Mac mini "Early 2009"
  • Macmini3,1 | 2.0GHz, 2.26GHz
iMac "Late 2009"
  • iMac10,1 | 3.06GHz, 3.33GHz
  • iMac11,1 | 2.66GHz, 2.8GHz
iMac "Early 2009"
  • iMac9,1 | 2.66GHz, 2.93GHz, 3.06GHz
MacBook Pro 17" "Early 2009"
"Mid 2009" and "Early 2010"
  • MacBookPro5,2 | 2.66GHz, 2.8GHz, 2.93GHz, 3.06GHz
  • MacBookPro6,1 | 2.53GHz, 2.6GHz
MacBook Pro 15" "Late 2008"
"Mid 2009" and "Early 2010"
  • MacBookPro5,1 | 2.4GHz, 2.53GHz, 2.8GHz
  • MacBookPro5,3 | 2.66GHz, 2.8GHz, 3.06GHz
  • MacBookPro5,4 | 2.53GHz
  • MacBookPro6,2 | 2.4GHz, 2.53GHz, 2.66GHz
MacBook 13" Pro "Mid 2009"
and "Early 2010"
  • MacBookPro5,5 | 2.26GHz, 2.53GHz
  • MacBookPro7,1 | 2.4GHz, 2.66GHz
MacBook 13" "Late 2008"
  • MacBook5,1 | 2.0GHz, 2.4GHz
MacBook 13" "Late 2009"
and "Mid 2010"
  • MacBook6,1 | 2.26GHz
  • MacBook6,2 | 2.4GHz
MacBook Air
"Late 2008", "Mid 2009" and "Late 2010"
  • MacBookAir3,2 | 1.86GHz, 2.13GHz
  • MacBookAir3,1 | 1.4GHz, 1.6GHz
  • MacBookAir2,1 | 1.6GHz, 1.86GHz, 2.13GHz
This device is not compatible with...
MacBook Pro 17" "Early 2011"
  • MacBookPro8,3 | 2.2GHz, 2.3GHz
MacBook Pro 15" "Early 2011"
  • MacBookPro8,2 | 2.0GHz, 2.2GHz, 2.3GHz
MacBook Pro 13" "Early 2011"
  • MacBookPro8,1 | 2.3GHz, 2.7GHz

Customer Ratings

Write a Review 5 / 5 1 out of 1 (100%) reviewers would recommend this product
Reviewer: domingo13 Location: Costa Mesa, CA Age: 35-44 Experience Level: IT Professional Owned Product: less than a month
Rating: 5/5 Works perfectly for connecting your Mac via HDMI! April 10, 2011 I purchased the NewerTech Mini DisplayPort w/ 5.1 Channel Audio to HDMI Adapter to connect my iMac "Core 2 Duo" 3.06 24-Inch (Early 2009) and a Toshiba 40XV645U 40" LCD HDTV. It was a simple matter of hooking up the cables and switching to HDMI 1 on my TV. I am watching Netflix, iTunes and DVDs without a hitch. I would highly recommend this product to anybody who has a Mac without audio passed through the Mini DisplayPort. It is truly a plug-and-play solution that works as advertised!

I would recommend this item to a friend!

NewerTech Mini Display
Port w/ 5.1
Channel Digital Audio
to HDMI Adapter
Mfr P/N: NWTCBLMDPHDMID OWC SKU: NWTCBLMDPHDMID 3 Year Newer Technology Limited Warranty
Sold Out
