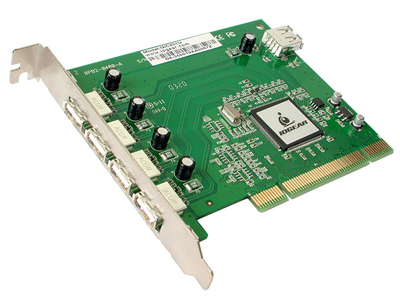

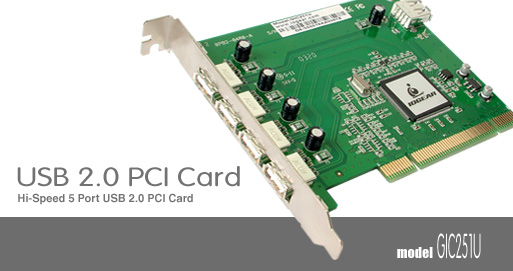

Name: IOGEAR Hi-Speed USB 2.0 5-Port PCI Expansion Card
Brand: IOGEAR
SKU: IOGGIC251U
Price: 17 USD
Availability: OutOfStock

5-Port USB 2.0
PCI Host Adapter

Mac / PC / USB 2.0 / PCI

Expansion Made Easy

Expansion

Gain additional USB ports with IOGEAR's 5-port USB 2.0 PCI Card (GIC251U). USB 2.0 moves data at a blazing fast rate of 480 Mbps (megabits per second), and is fully backwards compatible with all first generation USB devices. With the increase in speed, USB 2.0 offers enhanced functionality, allowing more devices to share the increased bandwidth. The USB 2.0 PCI card will allow you to take full advantage of the USB 2.0 technology on USB 1.1 systems.

Forget the Hub

With a hub, every peripheral you plug in has to share a single port's bandwidth (potentially affecting the devices' performance), and you may have to plug it into a power outlet as well as your computer in order to operate some devices. Additionally, each of the 5-Port USB 2.0's five powered ports supports bus-powered peripherals (devices that work without a separate power supply, including some small external drives and scanners) and hi-speed data transmission.

This Card Adds:

Four External USB 2.0 ports
One Internal USB 2.0 port

Requires:

Available PCI Slot

See specifications below for system and/or OS compatibility information

SPECS
GALLERY
COMPATIBILITY

Product Specifications:

IOGEAR Part Number

GIC251U

Hardware Requirements

Mac or PC with available PCI slot

Form Factor

Half-length full-height

Operating System Support

Mac OS X 10.3 to 10.5.2
Windows XP SP2 or later

Data Transfer Rate

USB 2.0: up to 480Mb/s (60MB/s) per port

Number of Devices Supported

Up to 127 downstream USB devices

External Connectivity

4 USB 2.0 Type A ports

Internal Connectivity

1 USB 2.0 Type A port

Hot Swappable

Hot Pluggable

Plug and Play

Supported for Mac OS X 10.3 - 10.5
Supported for Windows XP SP2 and later

Standards & Compliances

Standard USB Specification v. 2.0/1.1/1.0 compatible.
Complies with OHCI (Open Host Controller Interface)
Complies with EHCI (Enhanced Host Controller Interface)
PC Power Management v2.2 compliant

Dimensions (l x w x h)

5.25" x 4.75" x 0.91" (13.3 x 12.0 x 2.3 cm)

Weight

5.6 oz (0.16 kg)

Operating temperature

20° ∼ 50° C

Storage temperature

0° ∼ 70° C

Operating Humidity

20-80% RH, (Non Condensing)

Warranty

IOGEAR 3 Year Limited Warranty

Please Note:
- This product is not compatible with the Apple USB SuperDrive and MacBook Air SuperDrive.
- Deep Sleep not supported under Mac OS X Versions 10.4 or 10.3.

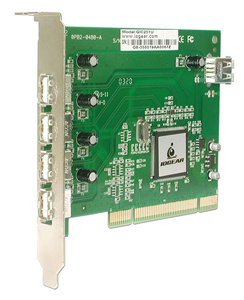

Gallery

This product is compatible with... Learn how to find your Mac's model ID

Power Mac G5 (Early 2005)

(April, 2005)

Model ID: PowerMac7,2

dual 2.0GHz

Detailed specs

Install Videos

Power Mac G5 (Late 2004)

(October, 2004)

Model ID: PowerMac9,1

1.8GHz

Detailed specs

Install Videos

Power Mac G5 (June 2004)

(June, 2004)

Model ID: PowerMac7,3

dual 1.8GHz, dual 2.0GHz, dual 2.5GHz

Detailed specs

Install Videos

Power Mac G5

(June, 2003)

Model ID: PowerMac7,2

1.6GHz, 1.8GHz, dual 1.8GHz, dual 2.0GHz

Detailed specs

Install Videos

Power Mac G4 (Mirrored Drive Doors 2003)

(June, 2003)

Model ID: PowerMac3,6

1.25GHz, dual 1.25GHz

Detailed specs

Install Videos

Power Mac G4 (FW 800)

(January, 2003)

Model ID: PowerMac3,6

1.0GHz, dual 1.25GHz, dual 1.42GHz

Detailed specs

Install Videos

Power Mac G4 (QuickSilver 2002 ED)

(August, 2002)

Model ID: PowerMac3,5

867MHz

Install Videos

Power Mac G4 (QuickSilver 2002)

(January, 2002)

Model ID: PowerMac3,5

733MHz, 800MHz, 933MHz, dual 1.0GHz

Detailed specs

Install Videos

Power Mac G4 (QuickSilver)

(July, 2001)

Model ID: PowerMac3,5

733MHz, 867MHz, dual 800MHz

Detailed specs

Install Videos

Power Mac G4 (Digital Audio)

(January, 2001)

Model ID: PowerMac3,4

466MHz, 533MHz, dual 533MHz, 667MHz, 733MHz

Detailed specs

Power Mac G4 (Gigabit Ethernet)

(July, 2000)

Model ID: PowerMac3,3

400GHz, dual 450MHz, dual 500GHz

Detailed specs

Install Videos

Power Mac G4 (AGP Graphics)

(September, 1999)

Model ID: PowerMac3,1

350MHz, 400MHz, 450GHz, 500GHz

Detailed specs

Install Videos

Power Mac G4 (PCI Graphics)

(August, 1999)

Model ID: PowerMac1,2

350MHz, 400MHz

Detailed specs

Install Videos

Power Macintosh G3 (Blue & White)

(January, 1999)

Model ID: PowerMac1,1

300MHz, 350MHz, 400MHz, 450MHz

Detailed specs

Install Videos

PC Desktops

Compatible with Intel / AMD Process based PCs capable with the specifications listed above.

IOGEAR 5-Port USB 2.0 PCI Host Adapter Mfr P/N: GIC251U OWC SKU: IOGGIC251U USB 2.0 5 port Host Bus Adapter for Power Macintosh G3 B&W through Power Macintosh G5 IOGEAR 3 Year Limited Warranty
