ATTO

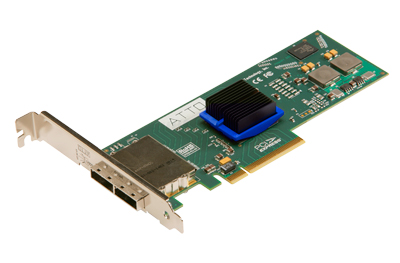

ExpressSAS R680
6Gb/s SAS/SATA RAID Host Adapter

RAID 0, 1, 4, 5, 6, 10, 40, 50, 60 and DVRAID™
Up to 8 SAS/SATA devices
ExpressSAS 6Gb/s SAS/SATA RAID adapters deliver affordable host-level RAID for high-bandwidth workflows such as digital content creation, streaming video, transactional databases, and email and Web server.
Advanced Data Streaming (ADS™)
Latency-management technology that controls the acceleration of data transfers to move large amounts of data faster and more efficiently.

The ExpressSAS H680 provides high-speed 6Gb/s performance at 600MB/s per port. By utilizing a serial, point-to-point architecture, in addition to PCI Express 2.0 bus technology, ExpressSAS 6Gb/s HBAs are engineered for demanding IT and digital media applications which require more performance than 3Gb/s SAS/SATA can provide. The ExpressSAS H680 features eight external ports and allows connections to 256 end-point devices.

Included with all ATTO host adapters is an easy-to-use utility enabling management, monitoring and configuration which leverages an intuitive GUI. ATTO's exclusive, field-proven Advanced Data Streaming (ADS7™) Technology helps users meet the most demanding performance requirements of bandwidth-intensive applications. ADS achieves this performance increase by integrating a combination of features engineered to allow for the controlled acceleration of data transfers.
DriveAssure™ Technology
Drive assessment and latency management technology that minimizes the likelihood of RAID groups becoming degraded or taken offline due to slow drives, ensuring uninterrupted access to data.

Features

  • 8 external ports in a low-profile form factor
  • x8 PCIe 2.0 host connection
  • 9.6GB/s throughput in full-duplex mode
  • SAS 2.0, SAS, SATA II, SATA connectivity
  • Advanced Data Streaming (ADS™) Technology
  • DriveAssure™ Technology
  • Data Recovery Mode for additional data protection
  • Supports up to 128 end devices
  • Windows®, Linux and Mac® OS X driver support
  • 512MB memory
  • Easy-to-use GUI-based configuration utility

Product Specifications

Manufacturer Part Number

  • ESASR680000

Ports

  • 2 External Mini-SAS

Connections

  • External - 8 Devices

Bus Specifications

  • PCI-Express 2.0 x8

Form Factor

  • Low-Profile

RAID Functionality

  • Supports RAID Levels 0, 1, 4, 5, 6, 10, 40, 50, 60 and DVRAID™, an advanced RAID level for digital video environments. (RAID 40, 50, 60 require ATTO Express Power Center software.)

RAID Controller

  • Marvell 88RC9580

Operating System Support

  • Windows® Server 2003, 2008, Windows XP, Vista, 7
  • SUSE Linux
  • Red Hat Linux
  • Mac® OS X 10.4.x or later

External Connectivity

  • x2 Mini SAS connector

Internal Connectivity

  • none

Operating Voltage

  • 9.6W (typical)

Agency Approvals & Compliance

  • FCC Part 15, Subpart B, Class B
  • EN55024: 1998 + A1: 2001 + A2: 2003
  • EN55022: 2006, Class B
  • EN60950-1: 2001
  • RoHS-6

Alarm/Buzzer

  • No

Activity/Failure LED

  • No

Notes

  • May also be used in external Thunderbolt expansion chassis.

Temperature

  • Operating: 0°C to +40°C
  • Non-Operating: -40°C to +70°C

Relative humidity

  • 5% ~ 95% non condensing

Dimensions

  • 6.600"L x 2.713"H

Weight

  • 1.45 lbs

Warranty

Manufacturer provided specifications for ATTO p/n ESASR680000 UPC#: 603175007241

Includes

  • ExpressSAS R680 8-port SAS RAID Controller
  • Full-height Bracket

Gallery

This product is compatible with... Learn how to find your Mac's model ID
Mac Pro
Mac Pro 12-Core (Mid 2012)
(June, 2010)
Model ID: MacPro5,1
2.4GHz, 2.66GHz, 3.06GHz
Mac Pro
Mac Pro 6-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.2GHz
Mac Pro
Mac Pro 12-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.66GHz, 2.93GHz
Mac Pro
Mac Pro 8-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.4GHz
Mac Pro
Mac Pro 6-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.8GHz, 3.2GHz
Mac Pro
Mac Pro 8-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.26GHz, 2.66GHz, 2.93GHz
Mac Pro
Mac Pro 4-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.66GHz, 2.93GHz, 3.33GHz
Mac Pro
Mac Pro 8-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz, 3.0GHz, 3.2GHz
Mac Pro
Mac Pro 4-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz
Mac Pro
Mac Pro 8-core (Early 2007)
(April, 2007)
Model ID: MacPro2,1
3.0GHz
Mac Pro
Mac Pro 4-core (Mid 2006)
(August, 2006)
Model ID: MacPro1,1
2.0GHz, 2.66GHz, 3.0GHz
PC Desktop
PC
PC running Windows, Linux or FreeBSD and available PCI-Express x4 lane or better slot
OWC Helios
OWC Mercury Helios
Thunderbolt PCIe
expansion chassis
ATTO ExpressSAS R680 6Gb/s SAS/SATA RAID
Host Adapter
Mfr P/N: ESASR680000 OWC SKU: ATTESASR680000 PCI-Express x8 6Gb/s mini-SAS 2 Port RAID Controller Card for up to 8 drives. Supports RAID 0, 1, 4, 5, 6, 10, 40, 50, 60, JBOD, DVRAID. ATTO 3 Year Limited Warranty Ships: 24-48 hrs Only $995.00 $825.00
